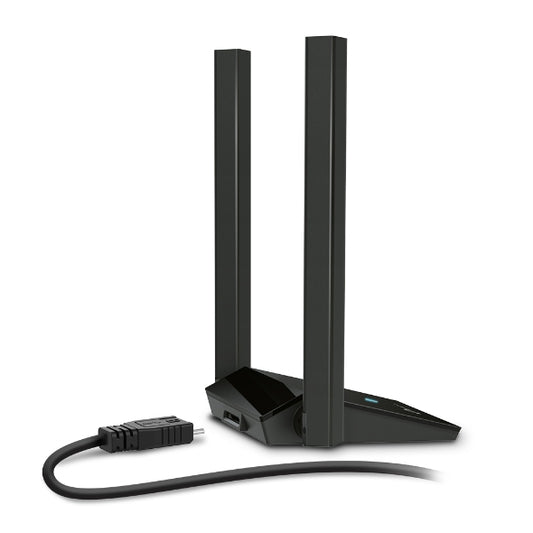

- TPLink Archer TX20U Plus AX1800 Dual Antennas High Gain Wireless USB Adapter
Description
Features of TPLink Archer TX20U Plus AX1800 Dual Antennas High Gain Wireless USB Adapter
- Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
- Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
- Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
- MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth△
- OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks△
- SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
- Refined Security – Protect your personal data with the latest WPA3 encryption
Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

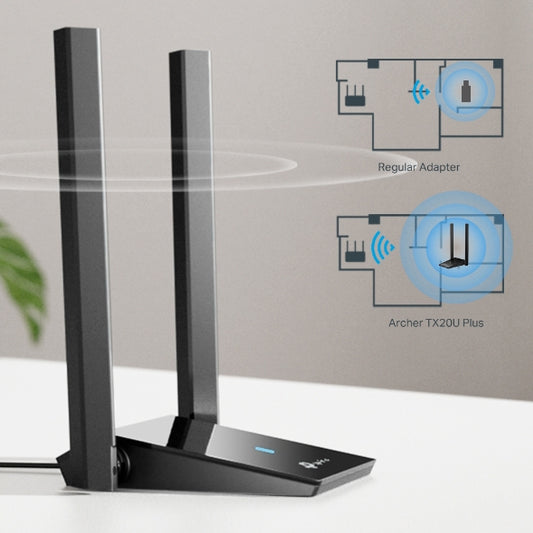

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.
Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.
Simple Design and Placement

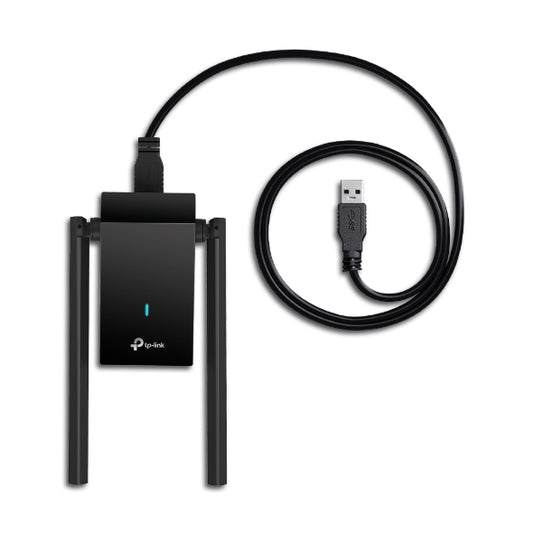

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.
Setup made Easy
TX20U Plus comes with its driver pre-loaded. Just plug and install.
Next-Gen Security
WPA3 encryption protects your PC from brute-force attacks, keeping your personal data safe.
Operating Systems
Works with Windows 11/10
Specifications of TPLink Archer TX20U Plus AX1800 Dual Antennas High Gain Wireless USB Adapter
HARDWARE FEATURES | |
LED | Status |
Dimensions | 84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) |
Antenna | 2× High-Gain Dual-Band Antennas |
WIRELESS FEATURES | |
Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
Signal Rate |
5 GHz: 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
Reception Sensitivity |
5 GHz: 11ax HE80 MCS0: -90 dBm 11ax HE80 MCS11: -59 dBm 11a 54Mbps: -77 dBm 11ac VHT80 MCS0: -92dBm 11ac VHT80 MCS9: -64dBm 2.4 GHz: 11ax HE40 MCS0: -94 dBm 11ax HE40 MCS11: -66 dBm 11g 54Mbps: -79 dBm 11n HT40 MCS9: -74dBm |
Transmit Power |
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) 2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP) |
Wireless Modes | Infrastructure mode |
Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents |
AX1800 Dual Antennas High Gain Wireless USB Adapter Archer TX20U Plus Quick Installation Guide 1-meter USB 3.0 Cable |
System Requirements | Supported operating systems include Windows 10, 11 |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
