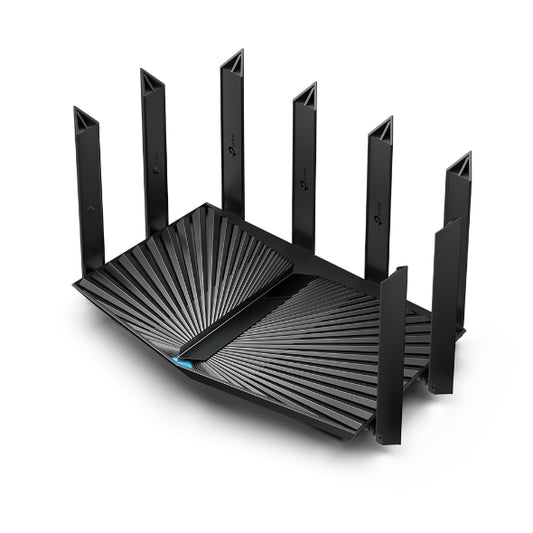

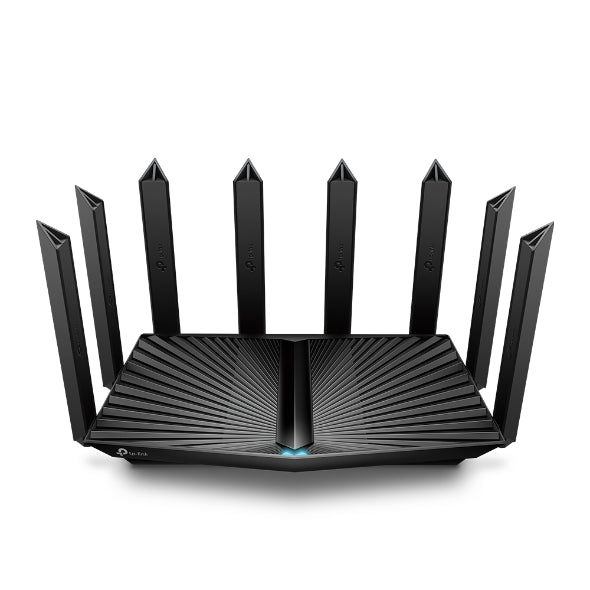

- TPLink Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port
Description
Features of TPLink Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port
Lightning-Fast AX6000 Wi-Fi:
Up to 6.0 Gbps (4804 Mbps + 1148 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.1
2.5G Multi-Gigabit Port:
1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
Maximized Coverage:
Eight high-gain antennas equipped with Beamforming ensure vast coverage.
More Devices with Less Lag:
OFDMA and MU-MIMO technology deliver data to multiple devices simultaneously.1
Powerful CPU:
2.0 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
VPN Client Supported:
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device.
TP-Link HomeShield:
Enhanced security defends against the latest cyber threats.5
TP-Link OneMesh Supported:
Flexibly Create Whole Home WiFi with Archer AX80 by adding a OneMesh supported Range Extender.
Compatible with Alexa:
Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Specifications of TPLink Archer AX80 AX6000 8-Stream Wi-Fi 6 Router with 2.5G Port
WIRELESS | |
Standards |
Wi-Fi 6 • IEEE 802.11ax/ac/n/a 5 GHz • IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX6000 • 5 GHz: 4804Mbps (802.11ax, HE160) • 2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range |
3+ Bedroom Houses• 8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas • Beamforming • High-Power FEM |
WiFi Capacity |
High• Dual-Band Allocate devices to different bands for optimal performance • OFDMA • Airtime Fairness • DFS • 8 Streams |
Working Modes |
• Router Mode • Access Point Mode |
HARDWARE | |
Ethernet Ports |
• 1× 2.5 Gigabit WAN/LAN Port • 1× Gigabit WAN/LAN Port • 3× Gigabit LAN Ports |
USB Support |
1× USB 3.0 Port
USB Sharing: |
Buttons |
• LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
Power | • 12 V/3.3 A |
SECURITY | |
WiFi Encryption |
• WPA3*6 • WPA2 • WPA • WPA/WPA2-Enterprise (802.1x) |
Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield SecurityReal-Time IoT Protection |
Guest Network |
• 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
VPN Server |
• OpenVPN • PPTP • L2TP |
VPN Client |
• OpenVPN • PPTP • L2TP |
SOFTWARE | |
Protocols |
• IPv4 • IPv6 |
Service Kits | HomeShield |
OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls |
HomeShield Parental Controls• Custom Profiles • Professional Content Filter Library • Family Time • Bedtime • Off Time • Time Rewards • Family Online Time Ranking • Pause the Internet • Weekly and Monthly Reports |
WAN Types |
• Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service |
• Auto Firmware Upgrade • OTA Firmware Upgrade • TP-Link ID • DDNS |
NAT Forwarding |
• Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV |
• IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP |
• Address Reservation • DHCP Client List • Server |
DDNS |
• TP-Link • NO-IP • DynDNS |
Management | • Tether App |
OTHER | |
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, RoHS |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
TEST DATA | |
WiFi Transmission Power |
FCC: <24dBm (5.25GHz~5.35GHz&5.47GHz~5.73GHz) <30dBm (5.15GHz~5.25GHz&5.735GHz~5.835GHz) <30dBm (2.4GHz) |
WiFi Reception Sensitivity |
• 2.4 GHz: 11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -67dBm, 11ac VHT40 MCS0: -94dBm, 11ac VHT40 MCS11: -64dBm, 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -67dBm, 11ax HE40 MCS0: -94dBm, 11ac HE40 MCS11: -64dBm • 5 GHz: 11ac VHT20 MCS0: -96dBm, 11ac VHT20 MCS11: -66dBm, 11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -63dBm, 11ac VHT80 MCS0: -91dBm, 11ac VHT80 MCS11: -61dBm, 11ac VHT160 MCS0: -86dBm, 11ac VHT160 MCS11: -58dBm, 11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm, 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -63dBm, 11ax HE80 MCS0: -91dBm, 11ax HE80 MCS11: -61dBm, 11ax HE160 MCS0: -86dBm, 11ax HE160 MCS11: -58dBm |
PHYSICAL | |
Dimensions (W×D×H) | 10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm) |
Package Contents |
• Wi-Fi Router Archer AX80 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
