- THERMALTAKE View 31 ATX Mid Tower Cabinet (Black)
Description
Features of THERMALTAKE View 31
The THERMALTAKE View 31 Tempered Glass Edition mid tower chassis features dual durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, two preinstalled 140mm Riing Blue fans with removable filters, and outstanding system ventilation. The View 31 TG supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.
- Thermaltake View 31 Tempered Glass Edition Mid Tower Chassis
- Tt LCS Certified
- Left and Right 4 mm Thick Tempered Glass Window Design
- Fully Modular Concept
- Riser GPU Support Bracket
- Dust Reduction
- Made for High-End PCs with Outstanding Expandability
- Advanced Ventilation

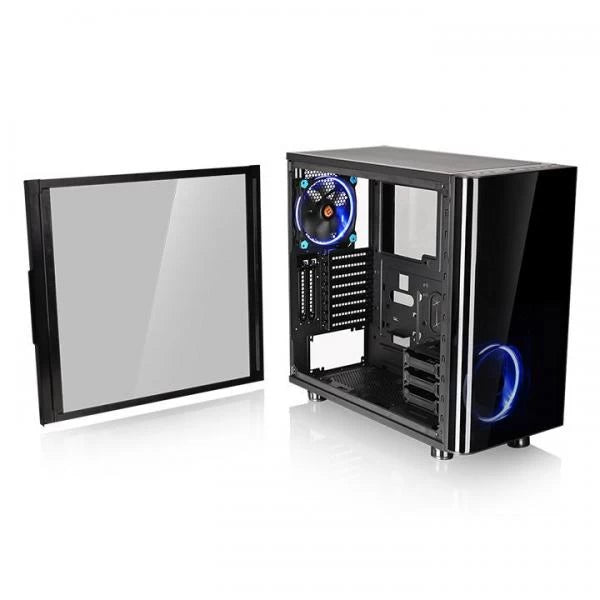

Left and Right 4 mm Thick Tempered Glass Window Design
View 31 TG with left and right 4 mm thick tempered glass window guarantees the durability of the window; moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!
Fully Modular Concept

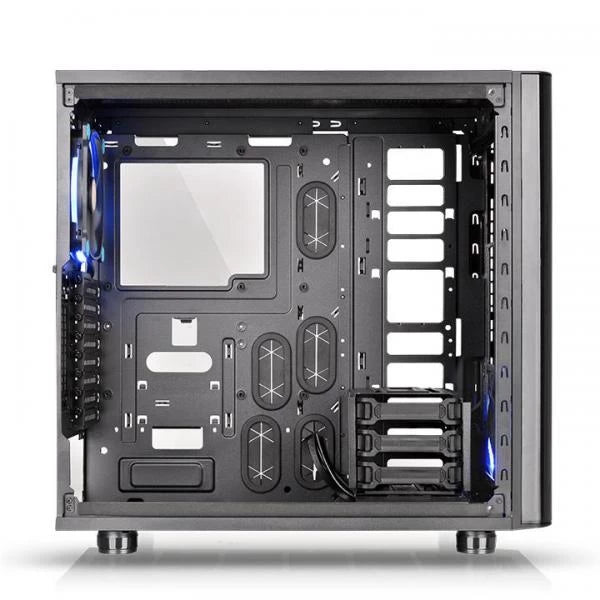

The View 31 TG comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs.
Riser GPU Support Bracket
Specially designed with dual GPU placement, the View 31 TG has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Dust Reduction
Magnetic fan filter on the top simply attaches the filter for dust filtration. Super fine fan filters with excellent protection and reduction against dirt and dust at the bottom.
Made for High-End PCs with Outstanding Expandability
The View 31 TG features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the View 31 TG has the ability to accommodate multiple 3.5”/2.5” storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.
Advanced Ventilation

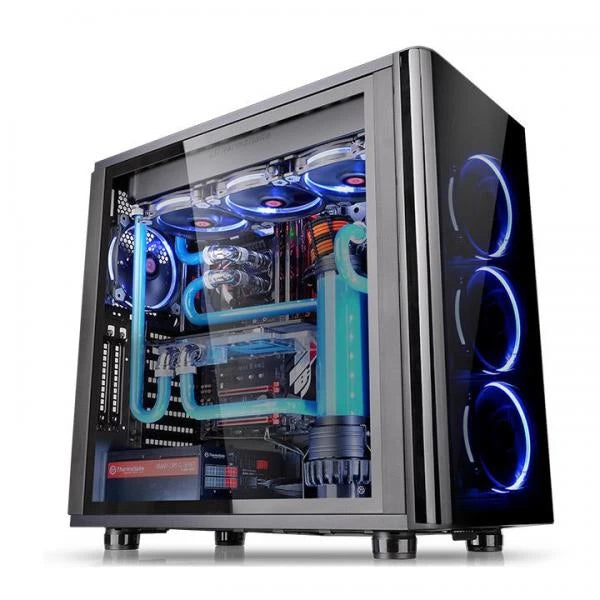

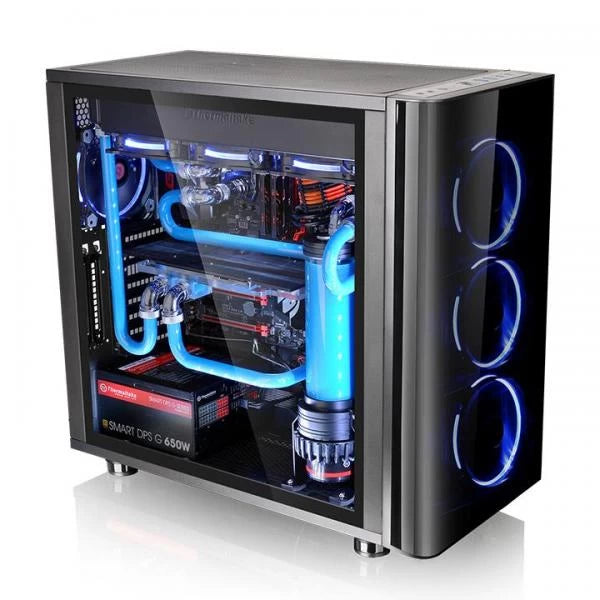

The View 31 TG Series delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, the View 31 TG maximizes the air intake with two built-in 140mm Riing Blue LED fans. It includes options for up to (3) 120mm or 140mm front fans, combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.
Specifications of THERMALTAKE View 31
Model | View 31 TG |
P/N | CA-1H8-00M1WN-00 |
Case Type | Mid Tower |
Dimension (H x W x D) |
497 x 250 x 511 mm (19.5 x 9.8 x 20.1 inch) |
Net Weight | 9.9 kg / 21.8 lb |
Side Panel | 4mm Tempered Glass x 2 (Left & Right) |
Color | Exterior & Interior : Black |
Material | SPCC |
Cooling System |
Front (intake) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1 (1000rpm, 22dBA with LNC) Rear (exhaust) : 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1 (1000rpm, 22dBA with LNC) |
Drive Bays |
-Accessible -Hidden 3 x 3.5’’ or 2.5’’ (HDD Cage) |
Expansion Slots | 8 + 2 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
LCS Upgradable | Supports 1/2”、3/8”、1/4” water tube |
Fan Support |
Front: 3 x 120mm , 2 x 140mm , 1 x 200mm Top: 3 x 120mm , 3 x 140mm , 2 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 2 x 120mm , 2 x 140mm |
Radiator Support |
Front: 1 x 360mm , 1 x 280mm Top: 1 x 360mm , 1 x 280mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 120mm , 1 x 140mm |
Clearance |
CPU cooler height limitation: 180mm VGA length limitation: 278mm(with HDD rack) 420mm(without HDD rack) PSU length limitation: 180mm (With One Bottom Fan) 220mm (Without Bottom Fan) |
Warranty | 3 Years |
Note | ***Features, Price and specifications are subject to change without notice |
