- THERMALTAKE ToughFan 12 High Static 120mm Non-RGB Cabinet Fan (Racing Green) (Single Pack)
Description

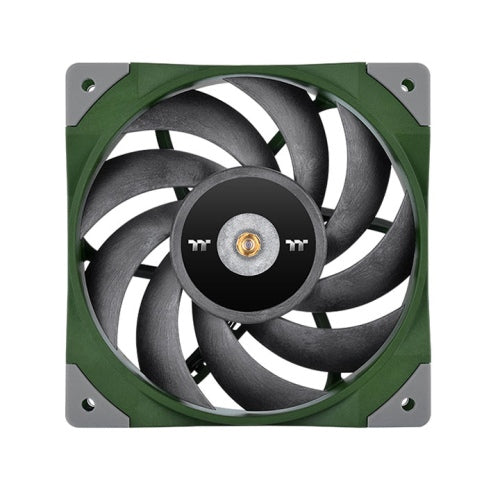

Features of THERMALTAKE ToughFan 12 High Static (Racing Green)
Thermaltake presents the brand new THERMALTAKE TOUGHFAN 12 Racing Green high static pressure fan to add some flair to our TOUGHFAN series while continuing to fulfill high-end cooling needs.
Color Your Style
TOUGHFAN 12 Racing Green high static pressure fan is a new edition to the TOUGHFAN series that allows users to match up the same Racing Green colored chassis or memory to form your ideal PC build!
Powerful and Noiseless
TOUGHFAN 12 Racing Green high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure, and maintaining a low audio noise level of 22.3 dB-A.
Exceptional Blade Design
Featuring high tensile strength and low thermal expansion coefficient materials, mixed with a charcoal black metal reflection paint that matches the Racing Green color; the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.
Metal-Reinforced Motor Hub
The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.
The 2nd Generation Hydraulic Bearing
The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.
Anti-Vibration Mounting System
The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed to cover large surface of all corners, maintaining low noise levels when in operation.
Specifications of THERMALTAKE ToughFan 12 High Static (Racing Green)
| P/N | CL-F117-PL12RG-A |
| FAN DIMENSION | 120 x 120 x 25 mm |
| STARTED VOLTAGE | 9.0 V |
| RATED CURRENT | 0.12 A |
| RATED VOLTAGE | 12 V |
| POWER INPUT | 1.44 W |
| FAN SPEED |
PWM 500~2000 R.P.M With L.N.C PWM 500~1500 R.P.M |
| MAX. AIR PRESSURE |
2.41 mm-H2O With L.N.C 1.2522 mm-H2O |
| MAX AIR FLOW |
58.35 CFM With L.N.C 45.72 CFM |
| NOISE |
22.3 dB-A With L.N.C 19 dB-A |
| BEARING TYPE | Hydraulic Bearing Gen.2 |
| LIFE EXPECTATION | 40,000 hrs,25℃ |
| CONNECTOR | 4 PIN PWM |
| WEIGHT | 212.5 g |
