- THERMALTAKE H330 ATX Mid Tower Cabinet (Black)
Description
Features of THERMALTAKE H330 ATX Mid Tower Cabinet (Black)
Thermaltake Cabinet H330 TG comes with one tempered glass panel on the left, one preinstalled 120mm standard rear fan and supports motherboards up to ATX.

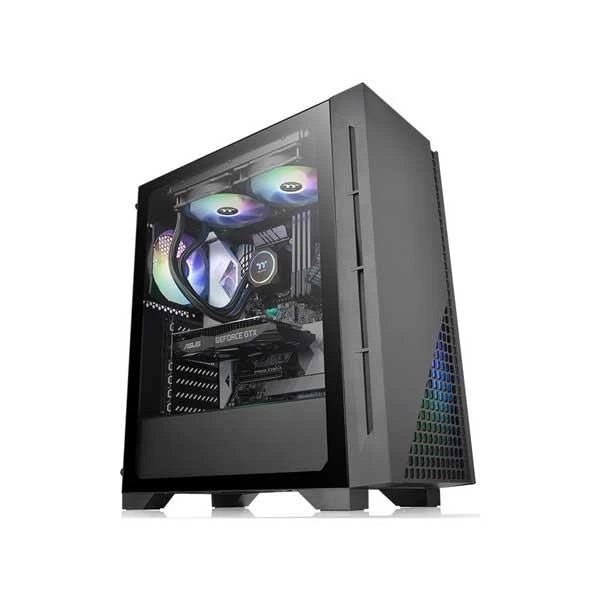

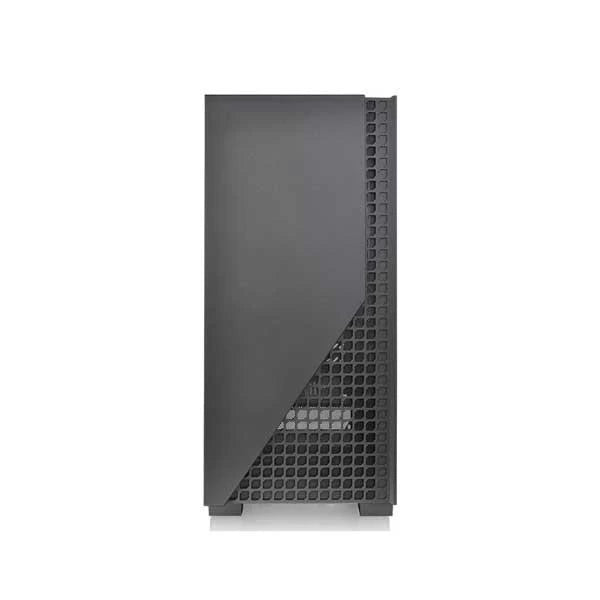

Embedded with the contracture of the H550 TG ARGB ATX Cabinet, the front panel design of the H330 tempered glass mid tower chassis combines simplicity and airflow. Constructed with a mesh front panel, the H330 TG not only showcases the exceptional layout but ensures great front intake for the entire system. Furthermore, the H330 TG pc cabinet comes with one tempered glass window on the side which allows you to display your interior hardware. It supports a huge range of air and liquid cooling hardware, high-end GPUs and even a handy PSU cover on the base. The price-friendly H330 TG is an excellent fit for beginners, gamers, and enthusiasts.
- Thermaltake H330 Tempered Glass Mid Tower Chassis
- TT Premium
- Built-in PSU Cover
- Tempered Glass Window
- Dust Reduction
- Hardware and Liquid Cooling Support
- Handy I/O Ports
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Built-in PSU Cover
Comes with a full-length PSU cover with a ventilated design to enhance airflow and hide those unsightly cables.

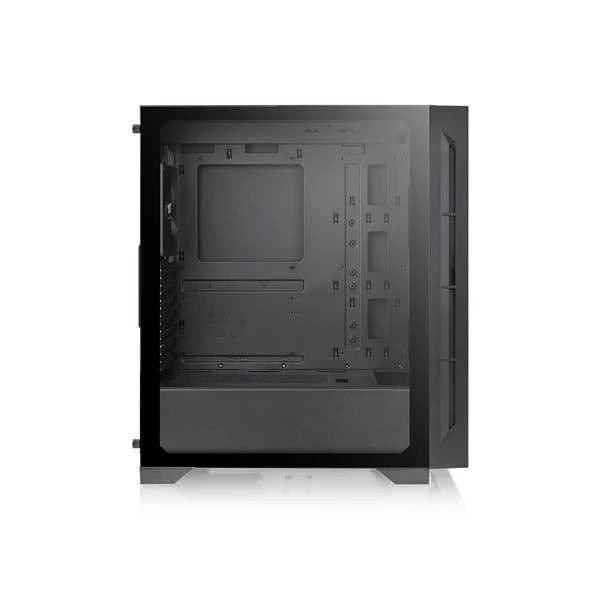

Tempered Glass Window
The 4mm tempered glass window at the front of the H330 TG is built to be more durable, scratch resistant, and transparent for viewing the hardware.
Dust Reduction
A handy magnetic fan filter on the top simply attaches for easy dust filtration and particulate protection. At the base of the chassis, additional fan filters can provide excellent protection against both dirt and dust.
Hardware and Liquid Cooling Support
H330 TG has excellent expandability. It can support a CPU cooler with a maximum height of 150mm, VGA length up to 300mm, 60mm RAM height limitation (with radiator series), and a power supply with a length of up to 200mm (without HDD Rack). Optimized for excellent cooling capabilities, the case comes with one 120mm exhaust rear fan preinstalled, and is able to house up to two 200mm front fans, and up to two 140mm fans on top, a radiator of up to 360mm at the front and 240mm on the top to allow users to build their desired high-end system.

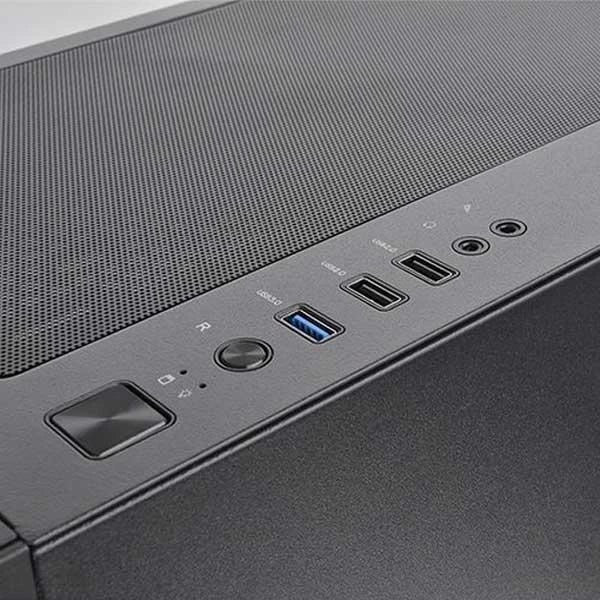

Handy I/O Ports
One 3.0 USB and two 2.0 USB ports on the top to grant direct access when needed.
Specifications of THERMALTAKE H330 ATX Mid Tower Cabinet (Black)
| P/N | CA-1R8-00M1WN-00 |
| Series | H Series |
| Model | H330 TG |
| CASE TYPE | Middle tower |
| Dimension (H x W x D) |
419 x 210 x 480 mm (16.5 x 8.27 x 18.9 inch) |
| NET WEIGHT | 6.12 kg / 13.49 lb |
| SIDE PANEL | 4mm Tempered Glass x1(Left) |
| Color | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM |
Rear (exhaust) : 1 x 120 x 120 x 25 mm fan (1000rpm, 16 dBA) |
|
Drive Bays -Accessible -Hidden |
2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket) |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm or 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm 2 x 200mm or 1 x 200mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Rear: 1 x 120mm, |
| RADIATOR SUPPORT |
Front: 1 x 360mm or 1 x 240mm or 1 x 120mm 1x 280mm or 1 x 140mm Top: 1 x 240mm or 1 x 120mm Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler height limitation: 150mm PSU length limitation: 160mm(With HDD Rack) 200mm(Without HDD Rack) VGA length limitation: 300mm RAM height limitation: 60mm(With radiator series) |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
