- THERMALTAKE Divider 500 ARGB ATX Mid Tower Cabinet (Black)
Description
Features of THERMALTAKE Divider 500 ARGB ATX Mid Tower Cabinet (Black)

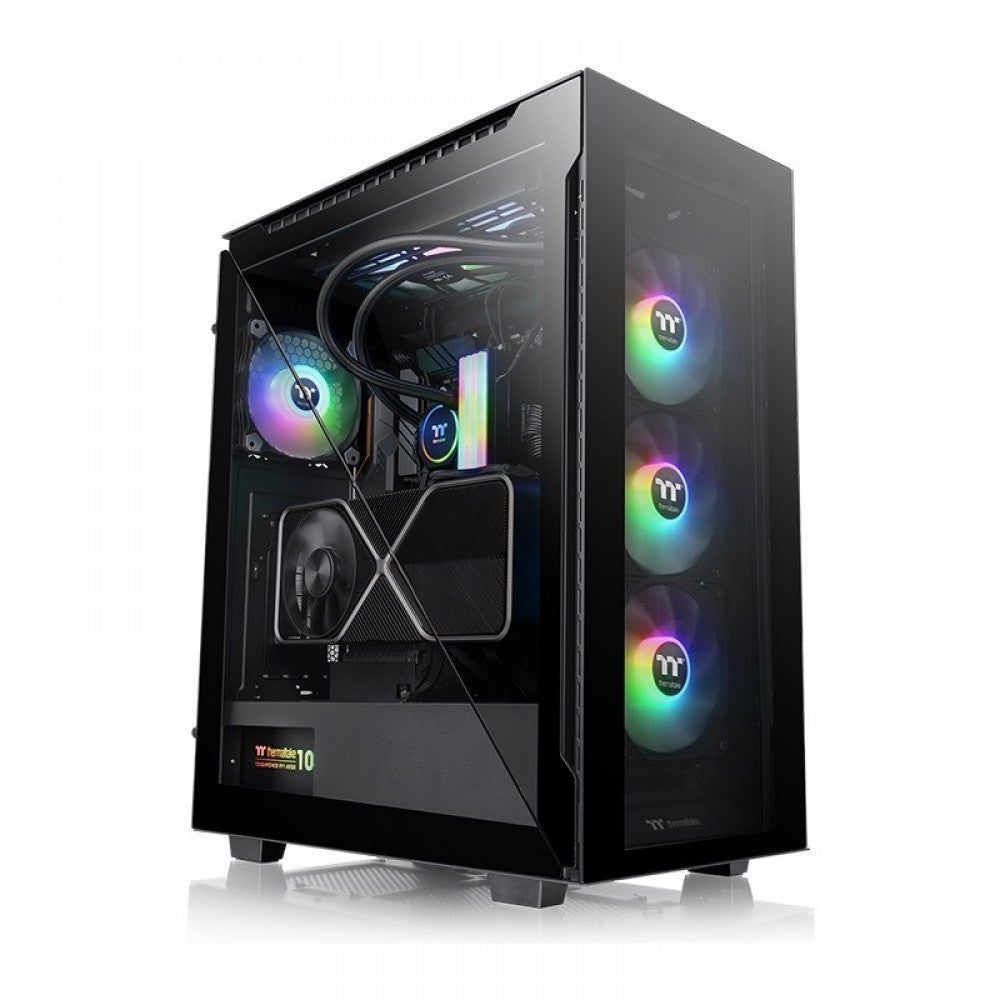

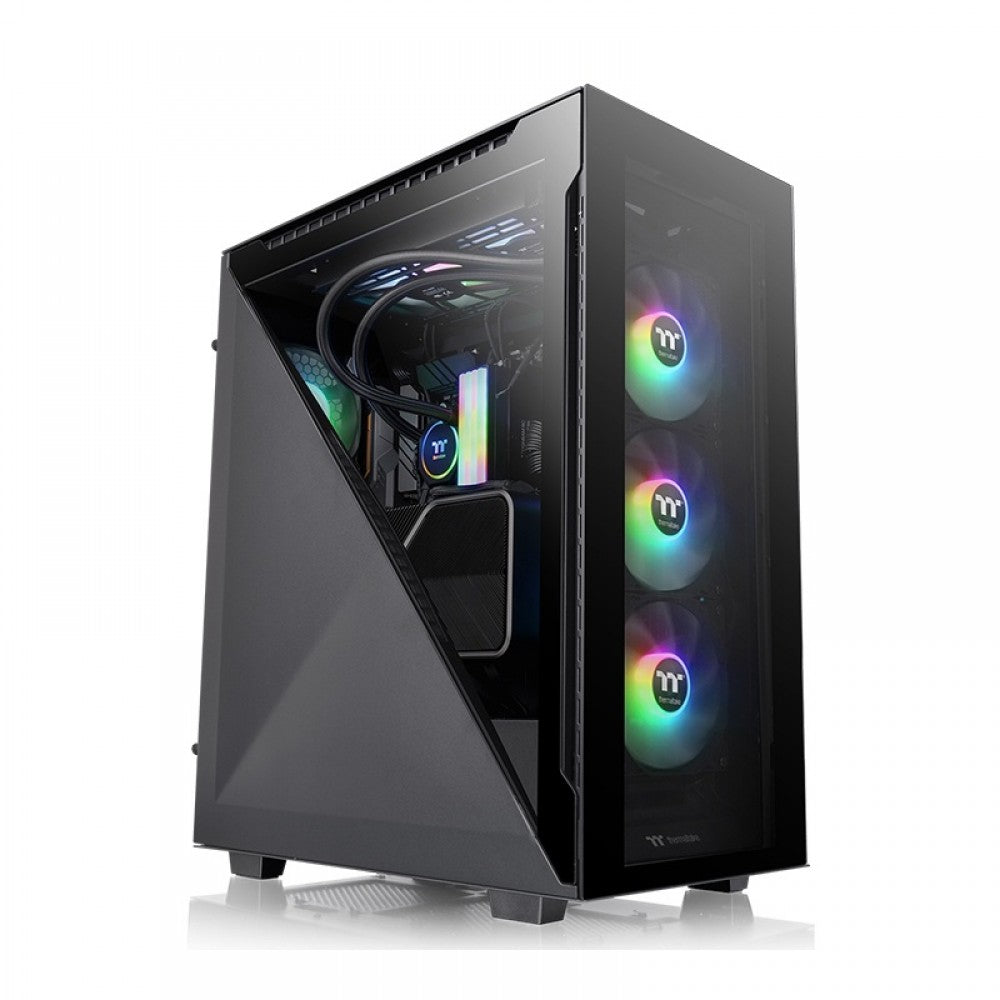

The THERMALTAKE Divider 500 TG ARGB is an ATX mid-tower PC Cabinet that comes with three preinstalled 120mm 5V ARGB front fans, one 120mm standard rear fan, four durable 3mm tempered glass windows at the front, top, left, and right sides. Additionally, the case comes with two symmetrical triangular panels one in tempered glass and the other in steel which are available for more options.
Thermaltake Cabinet designed a brand-new case series that contains a mixture of open frame styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 500 TG ARGB Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left and right sides. These panels are tool-free and easy to remove, offering a clear view of the components inside. Extra two symmetrical triangular options of tempered glass and steel panel enriches the appearance of the case when building the system. Additionally, the Divider 500 TG ARGB comes with three preinstalled 120mm 5V ARGB front fans which can sync with RGB motherboard software from ASUS, GIGABYTE, MSI, and ASRock. They are addressable and deliver 16.8 million-color RGB illumination and unparalleled ventilation. The Divider 500 TG ARGB Mid Tower Case is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

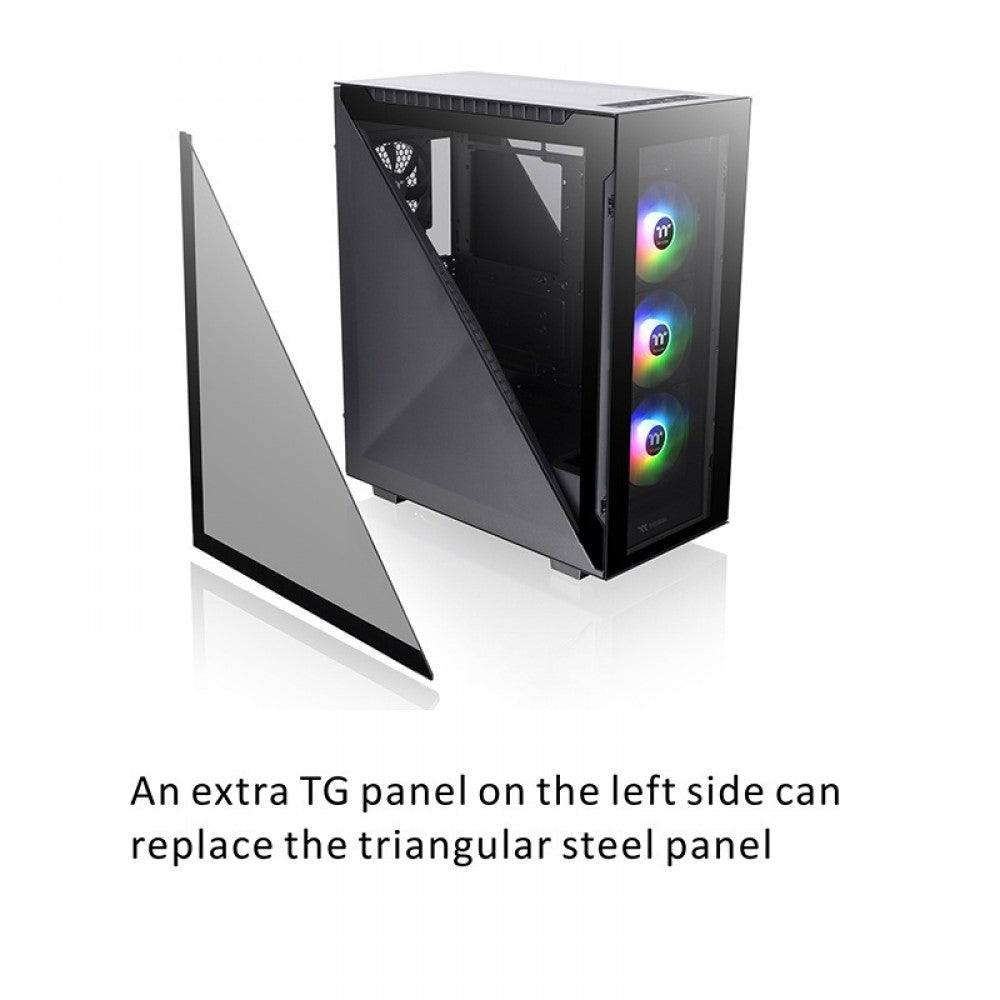

Symmetrical Triangular Side Panels Design – Left Side
The exceptional feature of the Divider 500 TG ARGB ATX Cabinet is that the four symmetrical triangular pieces are mixed and matched. We provide an extra triangular tempered glass window on the left side which enriches the appearance of the case when building the system. For example, users can can stick to the default form or have two triangular tempered glass windows on the left side, creating various viewing flavors.

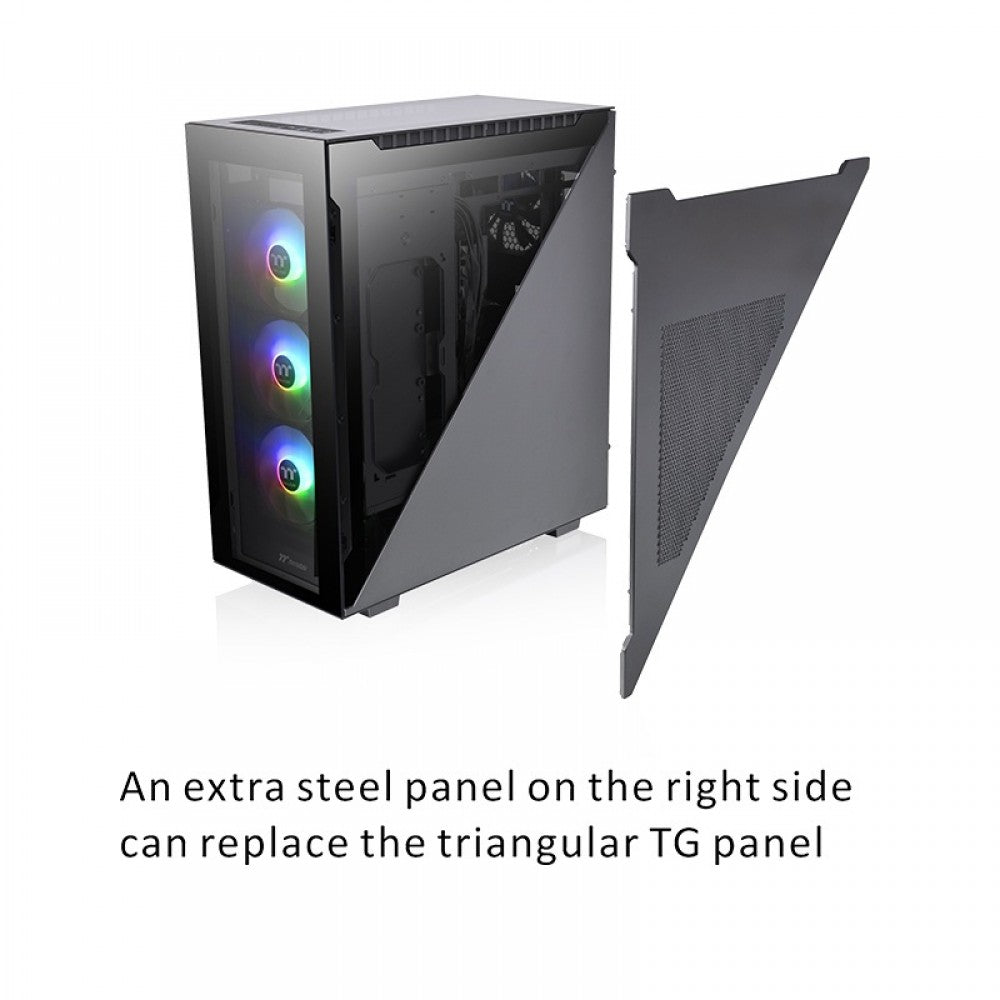

Symmetrical Triangular Side Panels Design – Right Side
The extra triangular mesh panel on the right side enriches the appearance of the case as well as when building in the case. For example, users can stick to the default form or have two steel panels on the right side when installing fans on the motherboard side for air intake or exhaust depending on the PC layout.

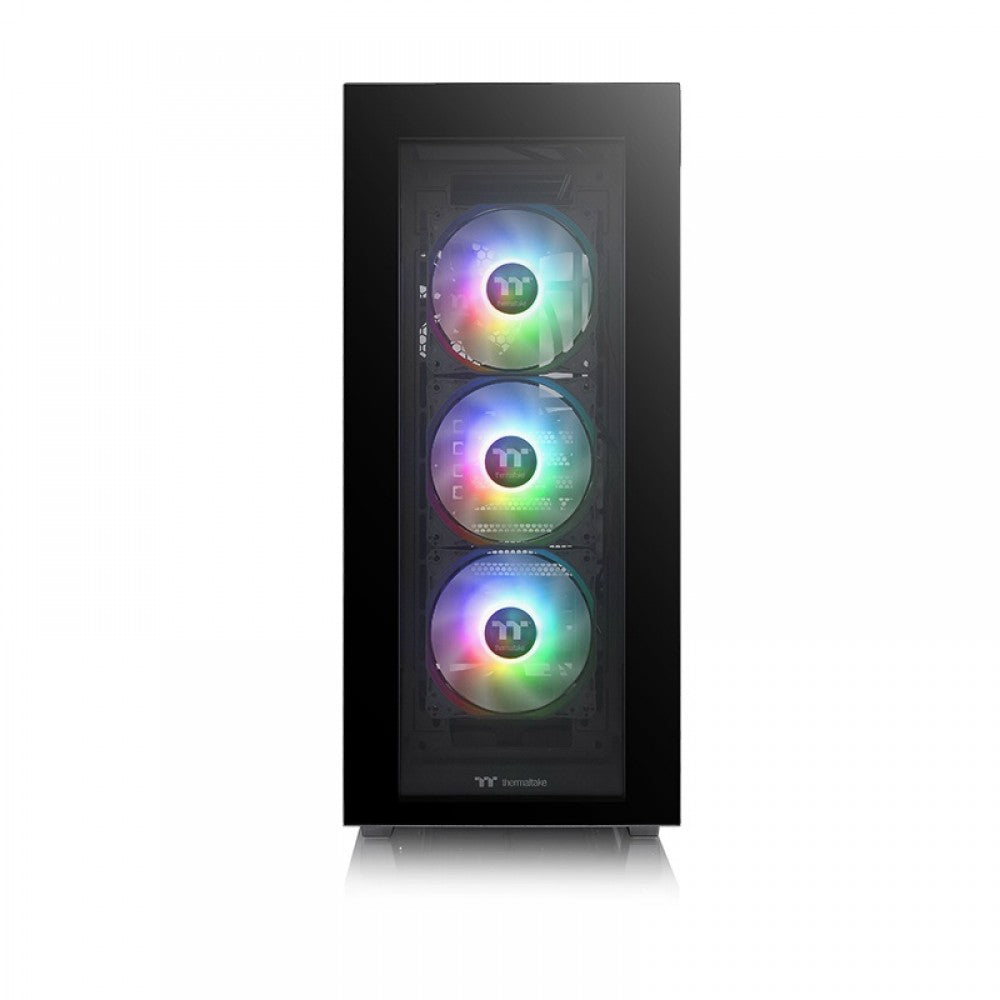

Three Preinstalled 120mm 5V ARGB Front Fans
The Divider 500 TG ARGB comes with three 120mm 5V ARGB front fans which can be either controlled by the physical RGB button on the I/O panel or motherboard software from ASUS, GIGABYTE, MSI, and ASRock. There are 27 RGB lighting modes to play around with when using the physical RGB button, and it’s simple to switch between physical button control and motherboard software control by long pressing the RGB button for three seconds.
PSU Cover & Riser GPU Support Bracket
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.
Display It Your Way
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.
Excellent Dust Filtration
The Divider 500 TG ARGB has well-designed dust filtration. A removal magnetic fan filter on inner right side. At the front and base, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Air Intake and Exhaust
The cooling performance of the Divider 500 TG ARGB is admirable. The venting gaps on two sides of the front tempered glass and gaps between two triangular pieces of tempered glass and steel panels on the left side allow an optimal air intake. Cooling exhausts are located on the right side of the steel panel and rear of the case. The additional triangular tempered glass and steel panels not only enrich the build appearance but allow more flexible system cooling.
Idle and Full-load Temperature
To let our customers better understand the thermal performance of the Divider 500 TG ARGB ATX Mid Tower Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.
Excellent Hardware Support & Cooling Solution
The Divider 500 TG ARGB has an excellent hardware expansion. It can support a CPU cooler with a maximum height of 170mm (two TG), VGA with maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD Cage), total of two 3.5” HDDs and five 2.5” SSDs or a total of seven 2.5” SSDs. When it comes to the cooling solution, the Divider 500 TG ARGB is preinstalled with three 120mm 5V ARGB front fans for cold air intake and one 120mm standard rear for hot air extraction. The case can hold up to two 140mm fans at the top and two 120mm fans on the right of the motherboard side. Moreover, the Divider 500 TG ARGB is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 360mm at the front, 280mm on the top, and 240mm on the right side of the motherboard (vertical-installed GPU recommended), and a 120mm at the rear.
Handy I/O Ports
Two 3.0 USB and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.
DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need them with our modular design. The Divider 500 TG ARGB features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specifications of THERMALTAKE Divider 500 ARGB ATX Mid Tower Cabinet (Black)
| P/N | CA-1T4-00M1WN-01 |
| SERIES | Divider |
| MODEL | Divider 500 TG ARGB |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) |
530 x 230 x 466 mm (20.9 x 9.1 x 18.3 inch) |
| NET WEIGHT | 10.6 kg / 23.4 lbs. |
| SIDE PANEL | 3mm Tempered Glass x 4 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM |
Front(intake): 120 x 120 x 25 mm ARGB fan (1000rpm, 27.2 dBA) x 3 Rear(exhaust): 120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1 |
|
DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5”, 5 x 2.5” or 7 x 2.5” |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOTHERBOARDS | 6.7″ x 6.7″ (Mini ITX), 9.6″ x 9.6″ (Micro ATX), 12″ x 9.6″ (ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm |
| RADIATOR SUPPORT |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 280mm, 1 x 140mm 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 240mm (vertical-installed GPU recommended), 1 x 120mm Rear: 1 x 120mm |
| CLEARANCE |
CPU cooler max height: 155mm (with one TG and one steel side panel) 170mm (with two TG) VGA max length: 360mm (with radiator) 390mm (without radiator) PSU max length: 180mm (with HDD Cage) 220mm (without HDD Cage) |
