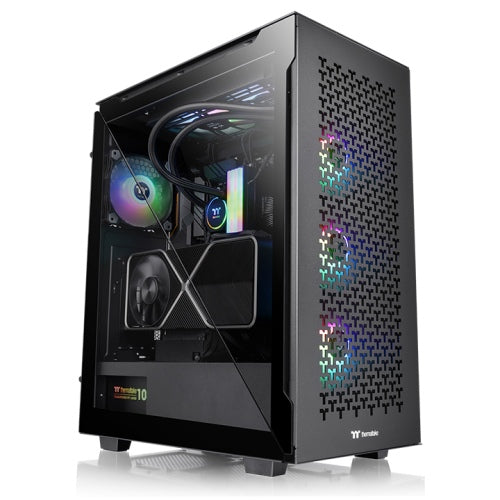

THERMALTAKE Divider 500 ATX Air Mid Tower Cabinet (Black) (CA-1T4-00M1WN-02)

Features of THERMALTAKE Divider 500 ATX Air Mid Tower (Black)

The THERMALTAKE Divider 500 TG Air is an ATX mid-tower pc cabinet that comes with one 120mm standard front fan, one 120mm standard rear fan, two airflow-optimized mesh panels at the front and top, two durable 3mm tempered glass windows on the left and right sides. Additionally, the case comes with two symmetrical triangular panels one in tempered glass and the other in steel which are available for more options.

Thermaltake Cabinet designed a brand-new case series that contains a mixture of open frame styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 500 TG Air Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left and right sides. These panels are tool-free and easy to remove, offering a clear view of the components inside. Extra two symmetrical triangular options of tempered glass and steel panel enriches the appearance of the case when building the system. Additionally, the air edition comes with two airflow-optimized mesh panels at the front and top for massive airflow. The Divider 500 TG Air Mid Tower Case is the next-gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.

TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

Symmetrical Triangular Side Panels Design – Left Side

Airflow-Optimized Panels

The Divider 500 TG Air comes with two large airflow-optimized mesh panels at the front and top for massive airflow performance.

PSU Cover & Riser GPU Support Bracket

The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.

Display It Your Way

Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.

Excellent Dust Filtration

The Divider 500 TG Air has well-designed dust filtration. All removable filters on inner right side, at the font, top, and base provide excellent dust protection and dirt reduction, ensuring a dust-free environment.

Air Intake and Exhaust

The cooling performance of the Divider 500 TG Air is superb. Two large mesh panels at the front and top enable massive airflow. Moreover, the gap between two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts could be located on the right side of the steel panel (two steel panels), rear, and top of case depending on user’s overall PC layout design. The additional triangular tempered glass and steel panels not only enrich the build appearance but allow more flexible system cooling.

Idle and Full-load Temperature

To let our customers better understand the thermal performance of the Divider 500 TG Air ATX Mid Tower Case, we ran a test system at idle and full-load. We used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running at the same time for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Excellent Hardware Support & Cooling Solution

The Divider 500 TG Air has excellent hardware expansion. It can support a CPU cooler with a maximum height of 170mm (two TG), VGA with maximum length of 390mm (without radiator), a power supply with a length of up to 220mm (without HDD Cage), total of two 3.5” HDDs and five 2.5” SSDs or a total of seven 2.5” SSDs. When it comes to the cooling solution, the Divider 500 TG Air comes preinstalled with one 120mm standard front fan for cold air intake and one 120mm standard rear for hot air extraction. The case can hold up to two 140mm fans at the top and two 120mm fans on the right of the motherboard side. Moreover, the Divider 500 TG Air is optimized for air cooling and advanced AIO liquid cooling components. It can support AIO 360mm at the front, 240mm on the top and on motherboard side, and a 120mm at the rear.

Handy I/O Ports

Two 3.0 USB and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.

DMD: Dismantlable Modular Design

Strip your case down to the bones and install elements when and as you need them with our modular design. The Divider 500 TG ARGB features modular panels, racks, brackets, and pre-designed mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Specifications of THERMALTAKE Divider 500 ATX Air Mid Tower (Black)
