- THERMALTAKE A500 Aluminium ATX Mid Tower Cabinet (Space Grey)
Description
Features of THERMALTAKE A500 Aluminium ATX Mid Tower (Space Grey)

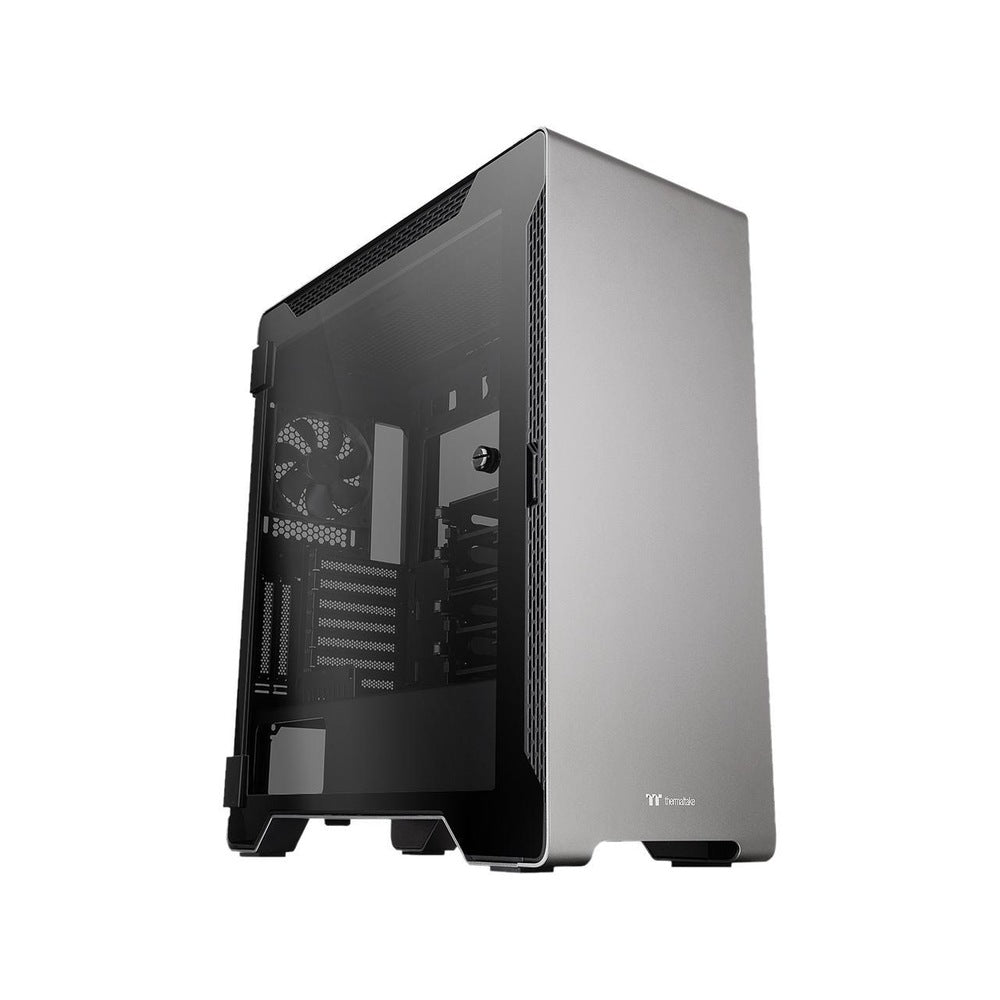

THERMALTAKE A500 Aluminum Tempered Glass Edition mid-tower chassis features a sleek aluminum front panel, two 4mm tempered glass panels, two pre-installed 120mm front fans and a 120mm rear fan for optimal system ventilation. It has a built-in power supply cover for clean and easy cable management and also supports up to a standard ATX motherboard. Accommodating the latest PC hardware including the most advanced graphic cards and air/liquid cooling solutions, the A500 Aluminum TG is designed for those who are looking for a chassis with outstanding thermal performance that is further complemented by a clean and simply designed case.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Sleek Aluminum Design
The A500 Aluminum TG chassis is built to be sleek and minimalist. The clean aluminum front and top panels hide the ample air intakes, and the power supply cover gives you plenty of space to route cables and clean up the build.
Dust Reduction
Fitted with a superb front filter, top filter and bottom filter. Providing excellent protection and reduction against dirt and dust.
Aluminum Modular Structural Statement with Two Tempered Glass Panels
Featuring aluminum panels created by high precision CNC digital cutting to ensure chassis security, while at the same time providing a futuristic gaming aesthetic. The aluminum anodizing process enables the panels to be both water and corrosive resistant as well. The aluminum casing utilizes CNC milling technology and was sandblasted to help shape the elegant and sleek curves. Two hinged swing-doors with premium-quality 4mm thick tempered glass design guarantees window durability and viewing capability to encourage users to thoroughly display superb inner components.
Tool-Free Installation
The A500 Aluminum TG ATX Cabinet comes with tool-free drive cages to provide the ease of installation/removal of backup drives. Fully maximize the interior space for highly customizable layouts, users get to mount up to four 3.5”/2.5” HDD inside the left side panel or on top of the PSU cover. n3.5” or 2.5” HDD Drive Compatible
Superior Hardware Support
Thermaltake Cabinet A500 Aluminum TG has outstanding expandability, with support for a CPU cooler with a maximum height of 160mm, combined with a dual expansion slot VGA of up to 420mm in length without an HDD rack, as well as a power supply with a length of up to 220mm. Moreover, the hidden drive bay design guarantees expandability for even more liquid cooling configurations.
Excellent Cooling Capability
Preinstalled with three 120mm fans for optimal cooling performance, this case can house up to three 140mm front fans, two 140mm or three 120mm fans on the top and a radiator size up to 420mm. This allows the user at the same time to build a complete high-end system to suit their needs.
Handy I/O Ports
The top-front panel features two USB 3.0 ports, along with one Type-C and two standard USB 2.0 ports, to provide easy direct access points when needed.
DMD: Dismantlable Modular Design
Enables user to freely build the system from the ground up with given modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps and enjoys installation in a breeze with Dismantlable Modular Design.
Best cpu case with fan at affordable prices at Elitehubs!
Specifications of THERMALTAKE A500 Aluminium ATX Mid Tower (Space Grey)
| Model | A500 Aluminum TG |
| P/N | CA-1L3-00M9WN-00 |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 560 x 236 x 510 mm(22 x 9.3 x 20.1 inch) |
| Net Weight | 14.82 kg / 32.67 lb |
| Side Panel | 4mm Tempered Glass x 2 (Left & Right) |
| Color | Exterior: Space Gray; Interior : Black |
| Material | Aluminum & SPCC |
| Cooling System | Front (intake) :120 x 120 x 25 mm fan (1000rpm, 22dBA) x 2Rear (exhaust) :120 x 120 x 25 mm fan (1000rpm, 22dBA) x 1 |
| Drive Bays | 2.5” or 3.5” x 4 (HDD Cage)3.5” x 2 (HDD Cage); 2.5” x 1(HDD Bracket); |
| Expansion Slots | 8 2 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1, Type-C x 1 |
| PSU | Standard PS2 PSU (optional) |
| Clearance | CPU cooler height limitation: 160mmVGA length limitation: 295mm(with HDD rack)420mm(without HDD rack)※Suggested VGA thickness up to 40mm(2-slot reference card standard) with 7mm space for ventilation if extending for VGA card.PSU length limitation: 220mm |
| Fan Support | Front: 3 x 120mm , 3 x 140mmTop: 3 x 120mm , 2 x 140mmRear: 1 x 120mm |
| Radiator Support | Front: 1 x 360mm , 1 x 420mmTop: 1 x 360mm , 1 x 280mmRear: 1 x 120mm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
