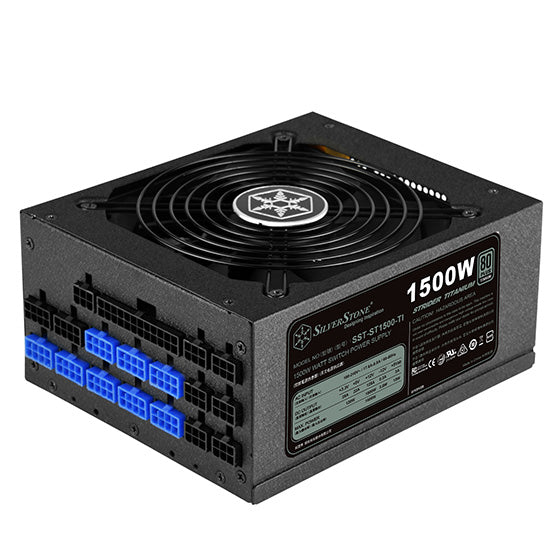

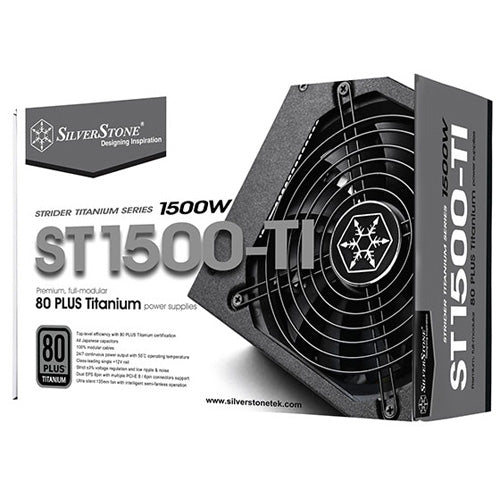

- SILVERSTONE SERIES SST ST1500 TI 1500W 80+ Titanium Fully Modular ATX 2.0 Power Supply
Description
Features of SILVERSTONE SERIES SST ST1500 TI
The SILVERSTONE SERIES SST ST1500 TI is Designed for 80 PLUS Titanium level of efficiency to reduce wasted heat and save on electricity.
100% modular cable design for use with short cable kit such as SilverStone’s PP05-E or for easy removal in a case with cable routed and tied down.
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
180mm depth sets new standard for high wattage 1500W Power Supply with modular cables.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
±3% regulation and low ripple & noise performance for high stability.

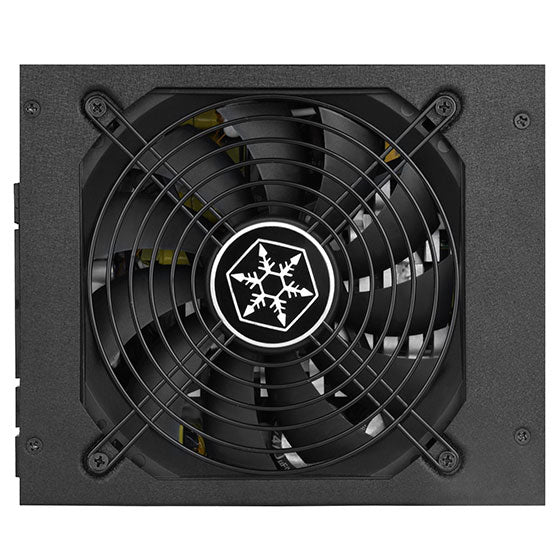

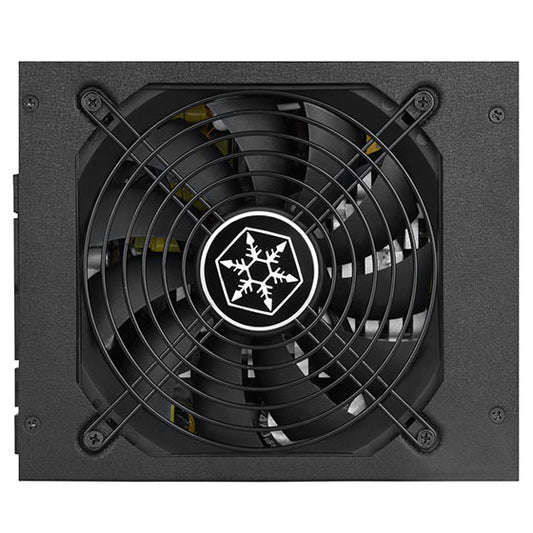

Ultra-quiet 135mm fan with intelligent RPM control provides cool performance at higher loading conditions and silent operation during idle to low loading conditions. The fanless mode operation deactivates when PSUs loading reaches 15 ~ 20%.
- Top-level efficiency with 80 PLUS Titanium SilverStone Power Supply (PSU)
- All Japanese capacitors
- 100% modular cables
- 24/7 continuous power output with 50℃ operating temperature
- Class-leading single +12V rail
- Strict ±3% voltage regulation and low ripple & noise
- Dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support
- Ultra silent 135mm fan with intelligent semi-fanless operation
Get the best 80 Plus Titanium computer SMPS price from us today!
Specifications of SILVERSTONE SERIES SST ST1500 TI

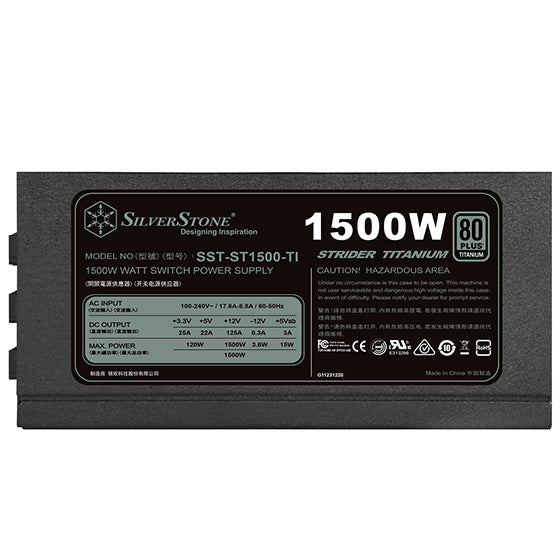

| Model No. | SST-ST1500-TI |
| Max. DC Output | 1500W (Peak 1600W) |
| Power density | 646W per liter |
| Color | Black (lead-free paint) |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 1500W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 90% ~ 94% at 10% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0 ~ 50°C |
| Protection |
Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection |
| Connectors |

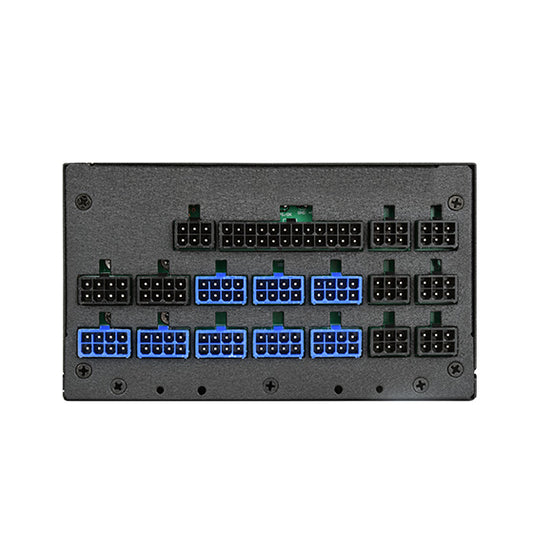

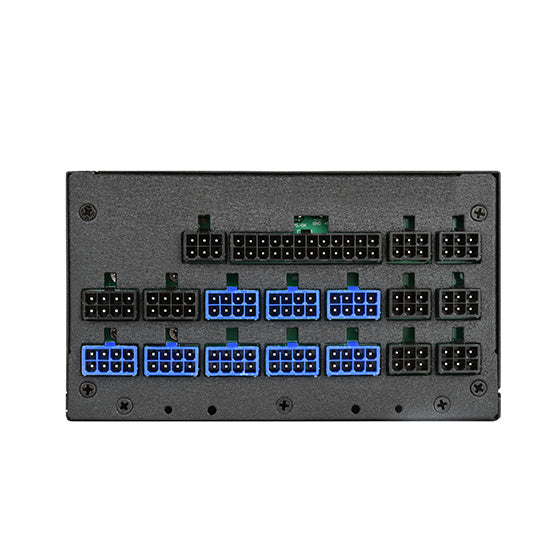

1 x 24 / 20-Pin motherboard connector (550mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (750mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 8 x 8 / 6-Pin PCIE connector ("550mm" x 8) 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4) 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2) 1 x 4-Pin Floppy adapter connector (100mm) |
| Cooling System | Single 135mm silent fan |
| Form factor | ATX |
| Noise Level | 0 ~ 36 dBA |
| Dimension |
150 mm (W) x 86 mm (H) x 180 mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) |
| Weight | 3.96 kg |
| Certification | 80 PLUS Titanium |
| Other |
GPU Support list Compatible with ATX12V v2.4 |
