- SILVERSTONE ST70F-ES230 700 80+ White Non Modular Power Supply (700 W)
Description
Features of SILVERSTONE ST70F-ES230
SILVERSTONE Strider Essential ST70F-ES230 700W Power Supply is a branded product with a non-modular power supply of foam factor ATX. It has an 80 white certification with 700W of wattage. SilverStone Strider Essential ST70F-ES230 700W White PSU is one of the most ideal PSU for an ideal personal computer power supply which has 3 types of power supplies. First the AT power supply which were used in the old systems, second is the ATX power supply are still being used in some of the pc and the third is ATX-2 power supply which is the most common in today life. They are equipped with cables which are flat and provides a greater flexibility with semi modular cables and give a better cable management. It can work continuously 24 x 7 with a continuous power output at 40 degree C temperature.
Silverstone Power Supply has 80 PLUS certification with a high efficiency which can work 24 x 7 in a continuous power output with the maximum temperature of 40 degree C. it has a single class leading +12V rail with an active PFC Circuit with PF > 0.9 at the full load. It also has a built in fan of 120 mm size which has 18 dBa with an excellent flow of air and a very low noise level which is perfect for house and office fields. The PSU supports PCIe 6 pin connector with input voltage of 180V – 264V. The MTBF is 100,000 hours with efficiency ranging from 82% - 85% at 20% - 1000% of loading. The maximum DC output is 700W with 388W per liter of power density.
- High efficiency with 80 PLUS certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single 12V rail
- Active PFC Circuitry
- PCI-E 8pin and PCI-E 6pin connector support

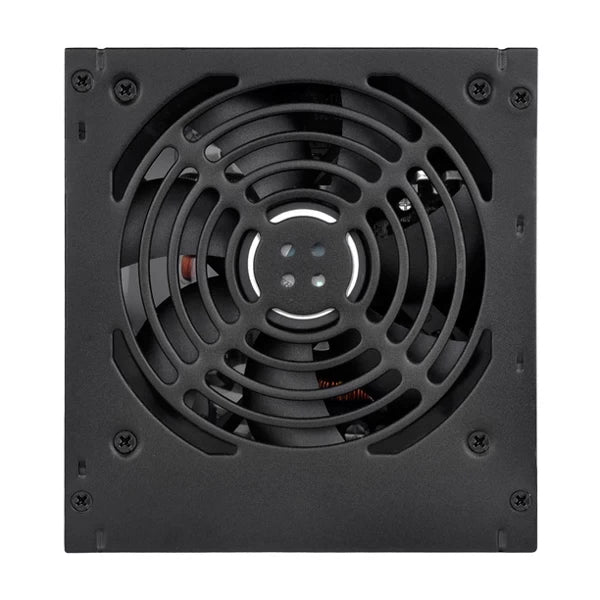

- Silent running 120mm fan with 18dBA
Get the best 80 Plus White computer SMPS price from us today!
Specifications of SILVERSTONE ST70F-ES230
Model No. | SST-ST70F-ES230 |
Max. DC Output | 700W |
Power density | 388W per liter |
Load Range | |
3.3V 5V 12V 5VSB -12V Max.(Amps) 22A 22A 54A 2.5A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±5% ±5% ±5% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV |
|
Color | Black(Lead-Free Paint) |
Combined 3.3V & 5V | 130W |
Combined 12V | 648W |
Input Voltage | 180V~264V |
Input Frequency Range | 47Hz~63Hz |
PFC | Active PFC(PF>0.9 at full load) |
Efficiency | 82% ~ 85% at 20% ~ 100% loading |
MTBF | 100,000 hours |
Operating temperature | 0°C ~ 40°C |
Protection |
Over power protection Over voltage protection Short circuit protection |
Connectors |
1 x 24 / 20-Pin motherboard connector(500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm) 4 x 8 / 6-Pin PCIE connector(”500mm / 150mm” x 2) 4 x SATA connector(”500mm / 150mm” x 2) 3 x 4-Pin Peripheral connector(500mm / 150mm / 150mm) 1 x 4-Pin Floppy connector(500mm / 150mm / 150mm / 150mm) |
Cooling System | Single 120mm silent fan |
Form factor | ATX |
Noise Level | 18 dBA minimum |
Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D) 5.91″ (W) x 3.39″ (H) x 5.51″ (D) |
Weight | 1.43 kg |
Certification | 80 PLUS |
Other | GPU Support list Compatible with ATX12V v2.4 |
