- SAPPHIRE Radeon RX 6800 XT SE Nitro+ Gaming 16GB AMD Graphic Card
Description

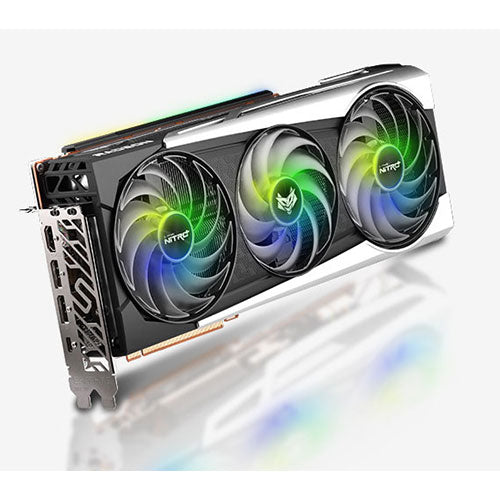

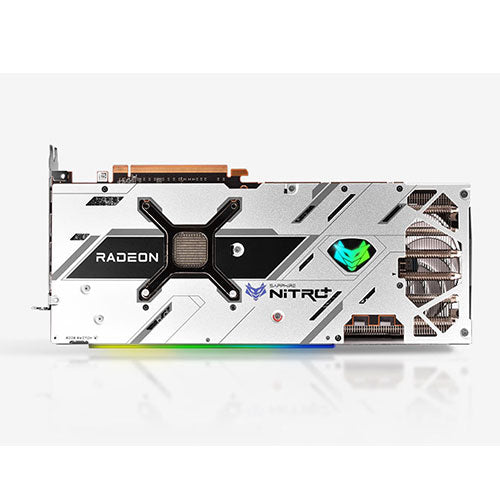

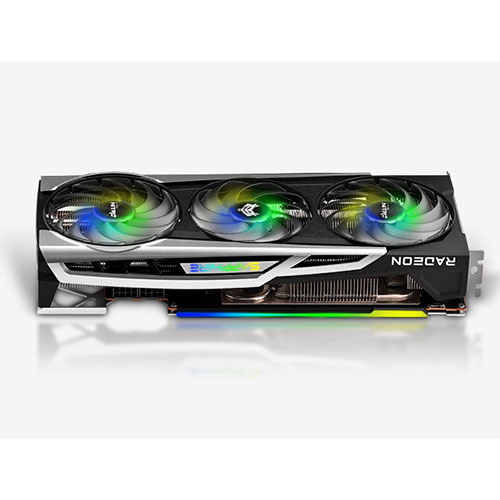

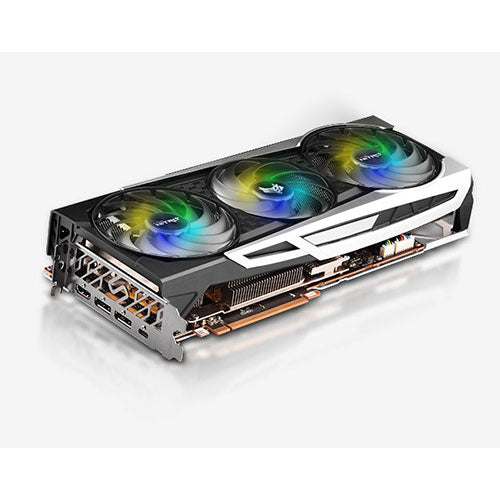

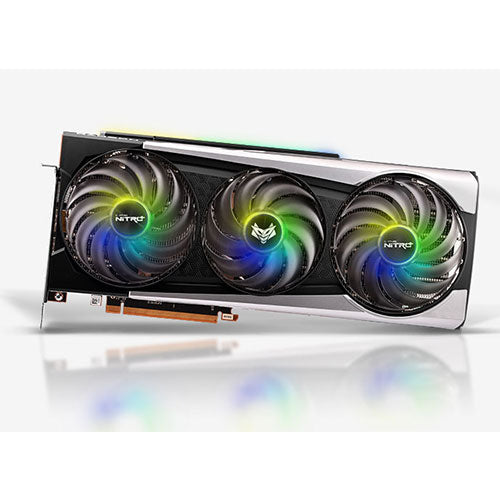

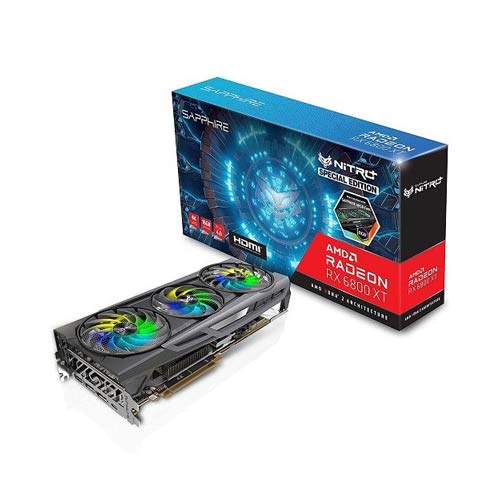

Features of SAPPHIRE Radeon RX 6800 XT SE Nitro+ Gaming 16GB AMD Graphic Card
The SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT SE delivers powerhouse 4K gaming performance with vivid visuals for an elevated experience.
The all-new innovative Wave Fin Design working in tandem with our V-Shape Fin Design for GPU Cooling reduces wind friction and centralizes airflow for optimal heat dissipation and a virtually silent system. Cutting edge Memory & VRM Cooling with Heat-Pipes and next gen K6.5 Memory Pad ensures you can push your performance to new limits while keeping the NITRO+ AMD Radeon™ RX 6800 XT SE components icy cool.
The brand new Hybrid Fan Design combines the tranquility and strong air pressure features that exhibit ultimate levels of downward air pressure through the fan while keeping fan noise low.
Incredible ARGB Lighting across the graphics card boosted with striking ARGB fans using our SAPPHIRE TriXX software fused with beautiful aesthetic styling will ensure the NITRO+ AMD Radeon™ RX 6800 XT SE is a stunning addition to every enthusiast gamer’s PC. NITRO Charge your PC with the NITRO+ AMD Radeon™ RX 6800 XT SE and elevate your gaming experience to the next level!
Explore all the incredible features that come with the SAPPHIRE NITRO+ AMD Radeon™ RX 6800 XT SE Graphic Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you
Software BIOS Switch
Switch from performance mode to silent mode or back using our TriXX software for a quick and easy switch between your dual BIOS modes.
WAVE Fin Design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
Hybrid Fan Blade
The new hybrid fan design combines the quietness of a traditional axial fan design and strong air pressure of a blower fan design to generate an improvement in the downward air pressure through the fan while keeping the fan noise low.
Integrated Cooling Module & K6.5 Memory Pad
The combined Memory & VRM cooling module cools the memory, MOSFET, and the chokes. Two heat pipes are added underneath the module to dissipate the heat from the components with better efficiency.
When compared to the previous K5, the K6.5 Memory Pad has a nearly 38% better thermal conductivity between the components and the cooler.
Technical Details
Brand : Sapphire
Model : 11304-01-20G
Technical Specs
Stream Processors | 4608 |
Infinity Cache | 128MB |
Ray Accelerators | 72 |
Memory Size/Bus | 16GB GDDR6 |
Memory Clock | 16 Gbps Effective |
Displays | Maximum 4 Displays |
Interface | PCI-Express 4.0 |
Output | 1x HDMI, 2x DisplayPort, 1x USB-C |
BIOS Support | Dual UEFI |
Game Index | 4K |
Power Consumption | 350W |
OS | Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required |
Cooling | 3 Fans |
GPU
AMD Radeon™ RX 6800 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2360 MHz
Game Clock: Up to 2110 MHz
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
USB-C: 7680×4320
Form Factor
2.7 slot, ATX
Dimension: 310(L)X 134.3(W)X 55.3 (H)mm
System Requirement
Minimum 850 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
Specifications:
GPU |
Radeon ™ RX 6800 XT 7nm process technology RDNA 2 architecture |
ENGINE CLOCK |
Boost Clock: Up to 2360 MHz Game Clock: Up to 2110 MHz |
STREAM PROCESSOR | 4608 |
INFINITY CACHE | 128MB |
RAY ACCELERATORS | 72 |
Memory capacity / bus | 16 GB GDDR6 |
Displays | Up to 4 displays |
Resolution |
HDMI™: 7680×4320 DisplayPort1.4: 7680×4320 USB-C: 7680×4320 |
Interface | PCI-Express 4.0 |
Outputs |
1x HDMI 2x DisplayPort 1x USB-C |
BIOS support | Dual UEFI |
Game Resolution | 4K |
Cooling | 3 fan |
Form factor |
2.7 slot, ATX Dimension: 310(L)X 134.3(W)X 55.3 (H)mm |
OS | Linux®, Windows® 7 *, Windows® 10, Windows 8.1, 64-bit OS required |
System requirements |
power supply unit power 850 W. 2 x 8-pin power connector. PCI Express® based PC with one X16 graphics slot on the motherboard. The minimum amount of system memory is 8 GB. 16 GB recommended. |
Warranty | 3 Years |
Note | **Features, Price and Specifications are subject to change without notice to customer. |
