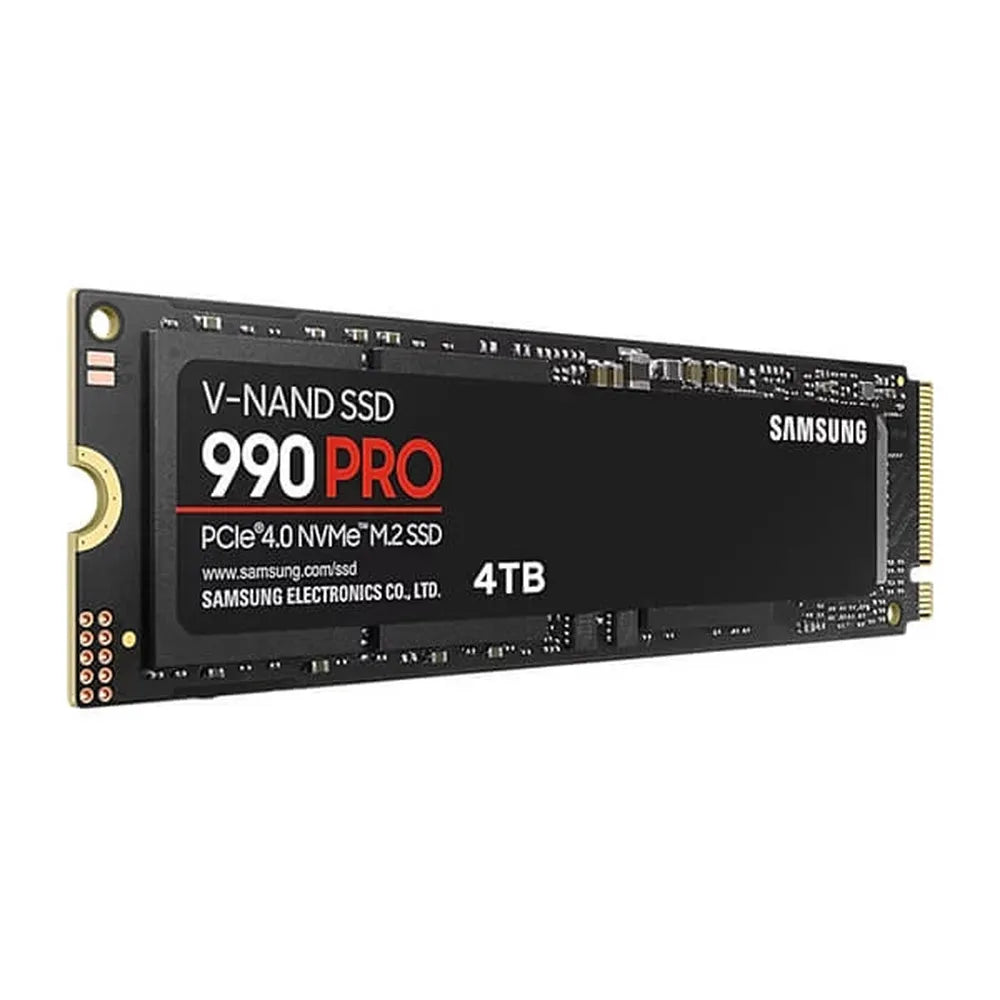

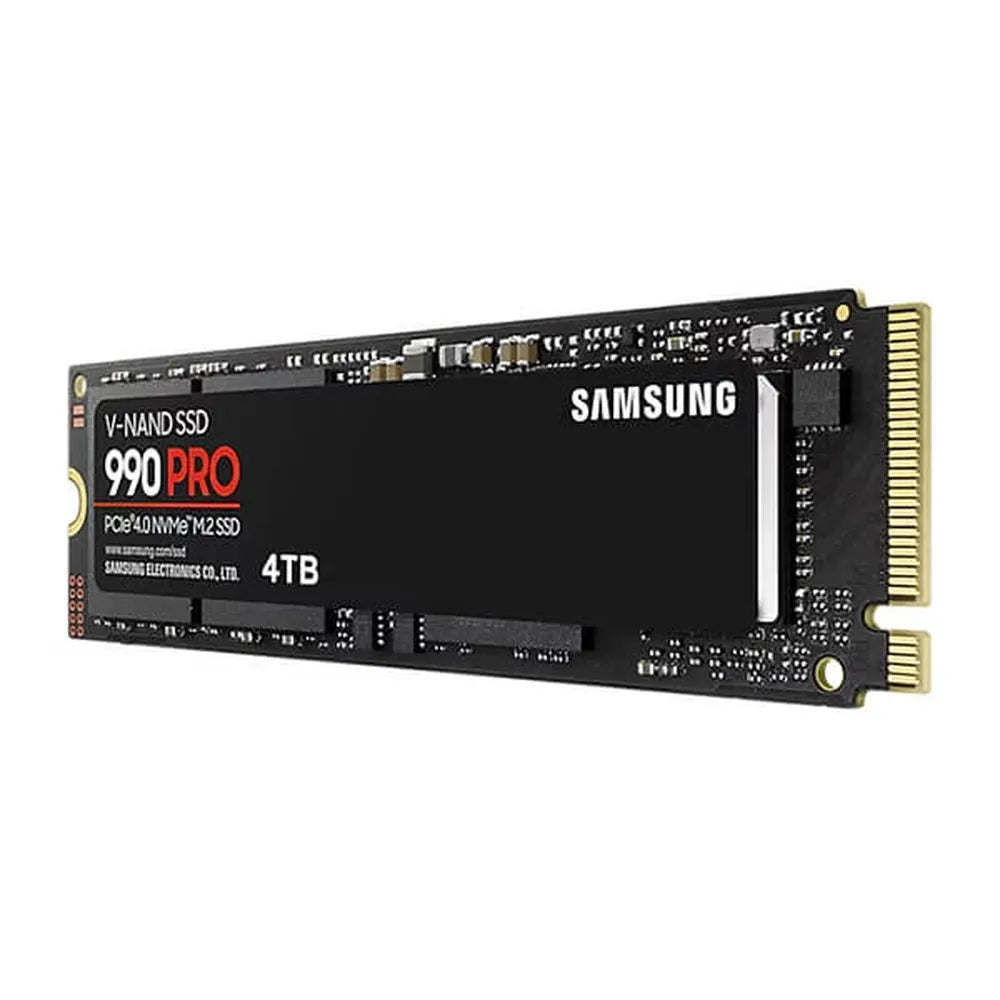

- SAMSUNG 990 Pro 4TB M.2 NVMe Gen4 Internal Solid State Drive (SSD)
Description
Features of SAMSUNG 990 Pro 4TB M.2 NVMe Gen4 Internal Solid State Drive (SSD)
- Samsung NVMe SSD powered by newly designed in-house controller
- Up to 7,450 / 6900 MB/s sequential read/write speed
- Power efficient SSD, reliable thermal control
Blistering speed, endless victory
Experience long-lasting fast performance of PCIe® 4.0. The in-house controller's smart heat control delivers supreme power efficiency while maintaining speed and performance to help keep you on the top of your game.
PCIe 4.0 speed maximised
Huge speed boost. Up to 40% and 55% faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0². Fly high in gaming, video and 3D editing, data analysis, and more.
Incredible power efficiency
More power-efficient performance. Higher performance usually consumes more power. But, SAMSUNG 990 Pro 2TB M.2 NVMe Gen4 Internal Solid State Drive (SSD) uses less power with over 50% improved performance per Watt over 980 PRO³.This low-power design delivers outstanding PCIe® 4.0 performance possible with optimal power efficiency.
Smart thermal solution
Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm helps to manage heat for stable performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures stable.
Game like a pro
990 PRO’s expanded 4TB capacity empowers you with a random read speed of up to 1,600,000 IOPS. Witness impressive loading times on your PC and PlayStation® 5, as it breathes life into your games.
Samsung Magician software
Harness the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools help enhance the performance of your Samsung SSD⁵. Protect data, get updates, monitor drive health, and set up LED colour combinations. It's your personal SSD toolkit.
World's No. 1 Flash Memory Seller
Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust
Specifications of SAMSUNG 990 Pro 4TB M.2 NVMe Gen4 Internal Solid State Drive (SSD)
Model | 990 PRO PCIe 4.0 NVMe M.2 SSD |
P/N | MZ-V9P4T0BW |
Application | Client PCs, Game Consoles |
Rated Capacity | 4,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
Form Factor | M.2 (2280) |
Interface | PCIe Gen 4.0 x4, NVMe 2.0 |
Dimension (WxHxD) | 80 x 22 x 2.3 mm |
Weight | Max 9.0g Weight |
Storage Memory | Samsung V-NAND TLC |
Controller | Samsung in-house Controller |
Cache Memory | Samsung 4GB Low Power DDR4 SDRAM |
Special Feature | |
TRIM Support | Supported |
S.M.A.R.T Support | Supported |
GC (Garbage Collection) | Auto Garbage Collection Algorithm |
Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
WWN Support | Not supported |
Device Sleep Mode Support | Yes |
Performance | |
Sequential Read | Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
Sequential Write | Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
Random Read (4KB, QD32) | Up to 1,600,000 IOPS * Performance may vary based on system hardware & configuration |
Random Write (4KB, QD32) | Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
Random Read (4KB, QD1) | Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
Random Write (4KB, QD1) | Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
Environment | |
Average Power Consumption (system level) | *Average: 6.5 W *Maximum: 8.6 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
Power consumption (Idle) | Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration |
Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
Operating Temperature | 0 - 70 ℃ Operating Temperature |
Shock | 1,500 G & 0.5 ms (Half sine) |
Accessories | |
Installation Kit | Not Available |
Software | |
Management SW | Magician Software for SSD management |
Warranty | 5-year Limited Warranty or 2400 TBW Limited Warranty |
Note | *** Image use for reference only *** Features, Price, Specifications are subject to change without notice. |
