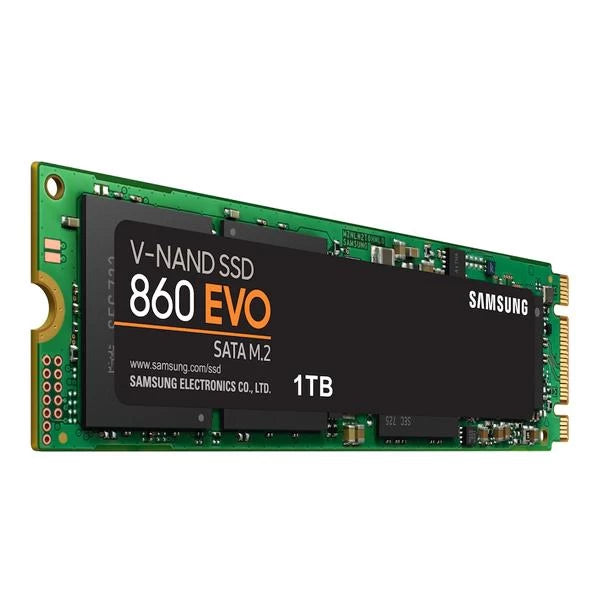

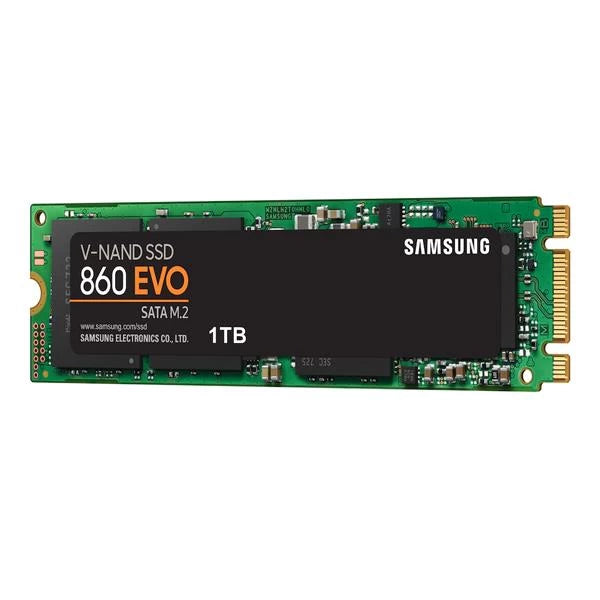

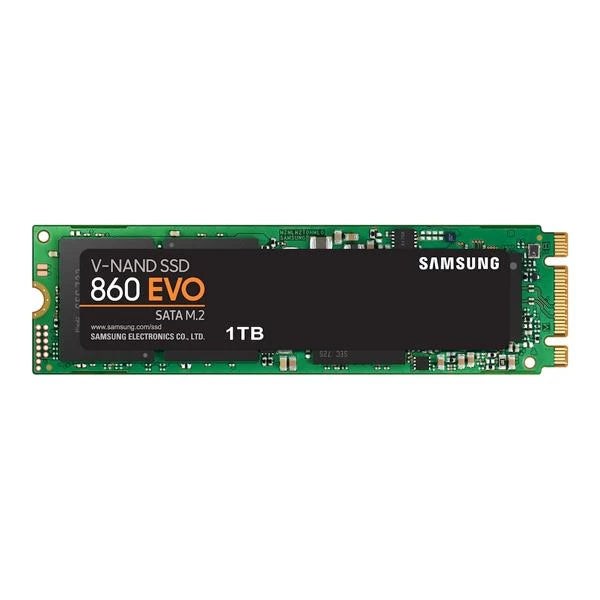

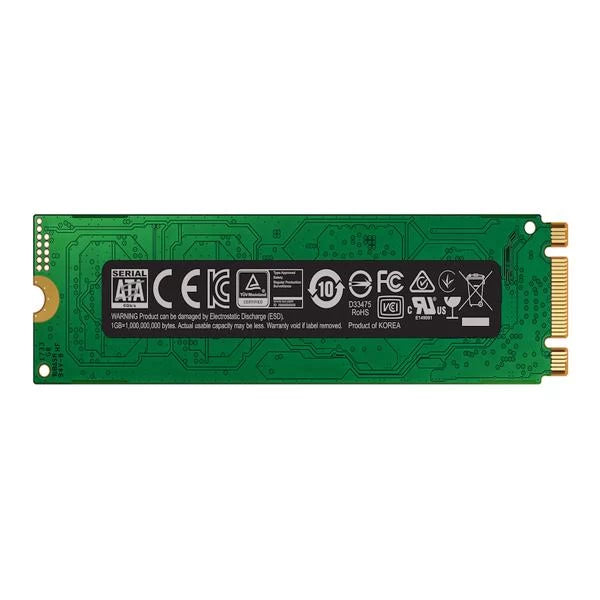

- SAMSUNG 860 EVO 1TB M.2 SATA SATA 3 Solid State Drive ( SSD )
Description
Features of SAMSUNG 860 EVO 1TB M.2 SATA SATA 3 Solid State Drive ( SSD )
SAMSUNG 860 EVO 1 Tb is the SSD you can trust. Samsung 860 EVO is the newest edition of the world's SATA SSD series. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities. Enhanced performance Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s. The TurboWrite buffer size is upgraded from 12 GB to 78 GB for faster file transfer.
Boosted endurance Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written) than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW or is backed by a 5-year limited warranty. Smart compatibility Benefit from faster, more fluid communication with your host system. The refined ECC algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system. Multiform factors Whatever size your computer needs, there is 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.
The SSD to trust
The newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.
Enhanced performance
Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s* with Intelligent TurboWrite technology and sequential reads up to 550 MB/s. The TurboWrite buffer size* is upgraded from 12 GB to 78 GB for faster file transfer.
Boosted endurance
Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written)* than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.*
Smart compatibility
Benefit from faster, more fluid communication with your host system. The refined ECC* algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system.
Multi form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.
Specifications of SAMSUNG 860 EVO 1TB M.2 SATA SATA 3 Solid State Drive ( SSD )
Series | SSD 860 EVO |
Usage Application | Client PCs |
Interface | SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface. |
Capacity | 1TB (1 GB=1 Billion byte by IDEMA) |
Sequential Read Speed | Up to 550 MB/s Sequential Read |
Sequential Write Speed | Up to 520 MB/s Sequential Write |
Random Read Speed |
Random Read (4KB, QD32): Up to 97,000 IOPS Random Read Random Read (4KB, QD1): Up to 10,000 IOPS Random Read |
Random Write Speed |
Random Write (4KB, QD32): Up to 88,000 IOPS Random Write Random Write (4KB, QD1): Up to 42,000 IOPS Random Write |
Controller | Samsung MJX Controller |
NAND Type | Samsung V-NAND 3bit MLC |
Cache Memory | Samsung 512 MB Low Power DDR4 SDRAM |
Trim Support | Yes |
AES Encryption | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
S.M.A.R.T. Support | Yes |
GC (Garbage Collection) | Auto Garbage Collection Algorithm |
WWN Support | World Wide Name supported |
Device Sleep Mode Support | Yes |
Internal Storage | Yes |
Power Consumption (W) | Average: 2.2 W Maximum: 4.0 W (Burst mode) |
Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
Environmental Specs |
Operating Temperature 0 - 70 ℃ Operating Temperature |
Shock | 1,500G & 0.5ms (Half sine) |
Form Factor | M.2 SATA |
Dimensions (W x D x H) | 3.15" X 0.87 " X 0.09" |
Weight | 0.18 lbs. |
Software | Magician Software for SSD management |
Warranty | 5 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
