- PHANTEKS EVOLV Shift XT ITX Mini Tower Cabinet (Satin Black)
Description
Features of PHANTEKS EVOLV Shift XT ITX (Satin Black)

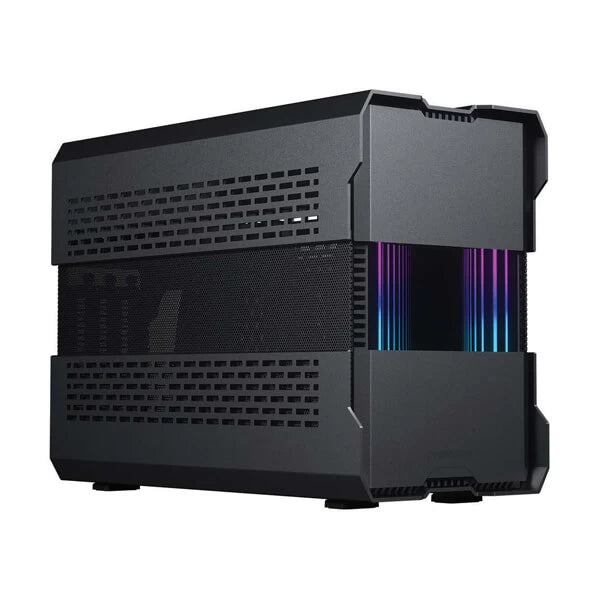

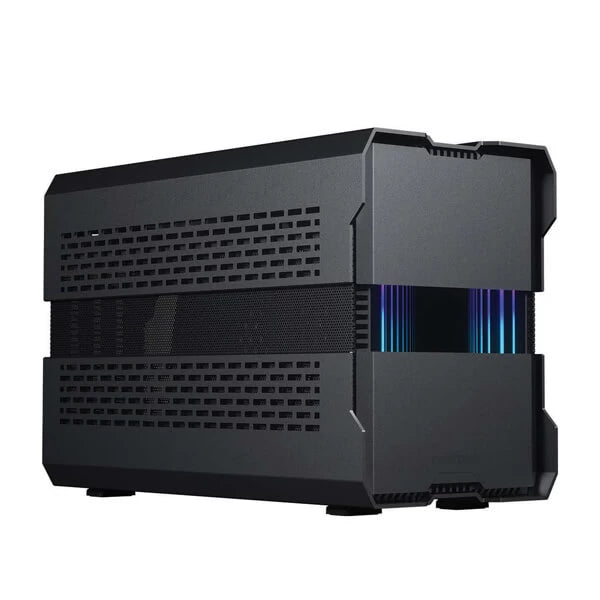

The PHANTEKS EVOLV Shift XT mini pc cabinet is a truly unique small form-factor chassis that extends to tailor the cooling performance to your need. Even in its ultra-compact mode there is no compromise on performance with support for powerful hardware such as 324mm long triple-slot GPUs and 72mm tall CPU air coolers. Phanteks CPU Case Evolv Shift XT has the unique capability to extend the height of the chassis to boost the air-cooling performance with two 120 or 140 fans at the top. When fully extended the Evolv Shift XT can house a 240 radiator in the top to cool even the most powerful systems.
Being part of the Phanteks Evolv series, the Evolv Shift XT offer premium build quality and components using thick anodized aluminum panels, PCI-e X16 Gen4 riser cable and USB-C Gen2 front IO. Performance is uncompromised with Ultra-Fine Mesh panels and vented aluminum panels while providing a clean and stylish appearance with the tempered glass infinity mirror.
- Super compact small form-factor chassis that can be extended to tailor the cooling performance to your needs with 2x 120/140mm fans and/or a 240 AIO liquid cooler support.
- No compromise on performance with support for large 3-slot 324mm GPU’sandbuilt in PCI-e x16 Gen4 Riser Cable.
- Premium build quality known from the Phanteks Evolv series using 2.5mm thick anodized aluminum panels.
- Integrated D-RGB Infinity mirror with built-in lighting effects that can be expanded and/or synced with other system components.
- Well-thought-out component layout and removable radiator bracket to provide a smooth building process in a small form-factor.

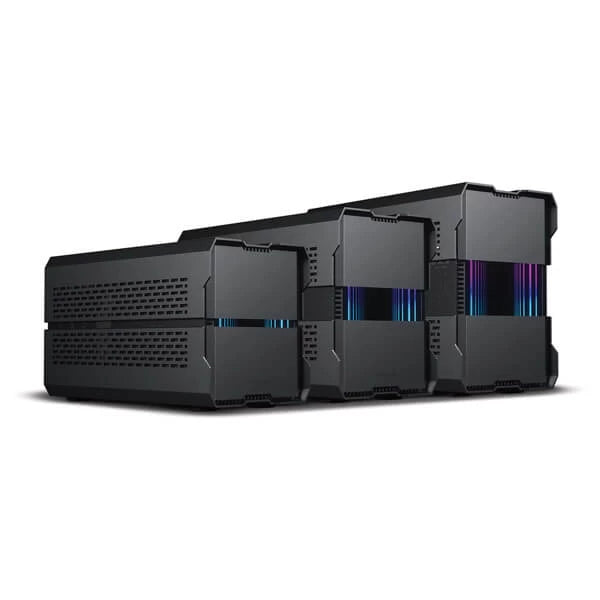

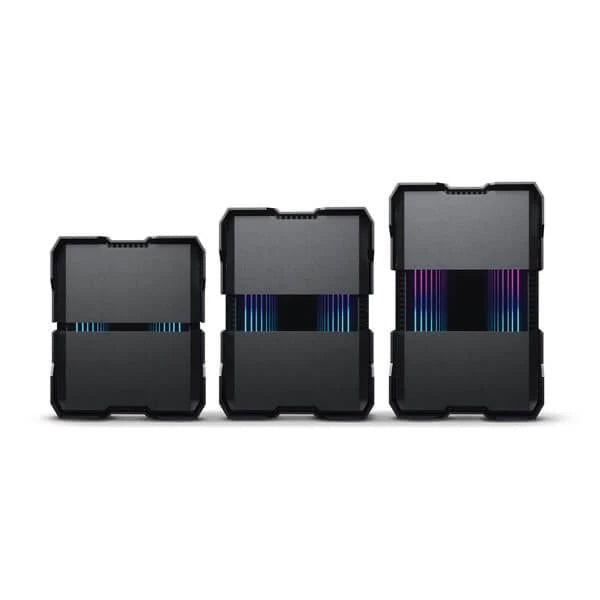

- Unique small form-factor chassis that extends into 3 sizes
- Full Size GPU Support with Gen4 Riser Cable
- Premium Aluminum Exterior and Tempered Glass Infinity Mirror
EXTENDING COOLING PERFORMANCE
-
Customize the Evolv Shift XT to your needs by extending the chassis.
-
No compromise on system components.
-
Unique patented extension system.
CHOOSE YOUR MODE

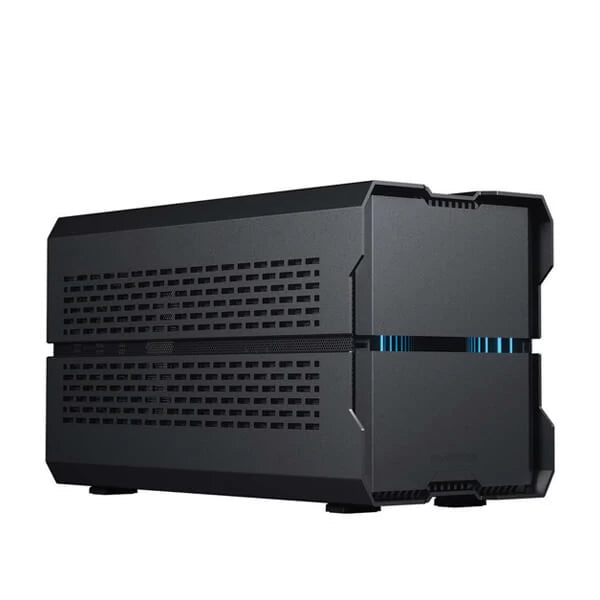

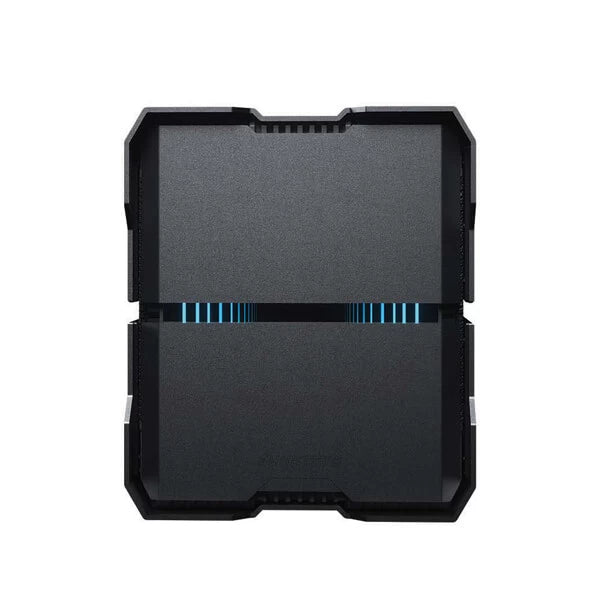

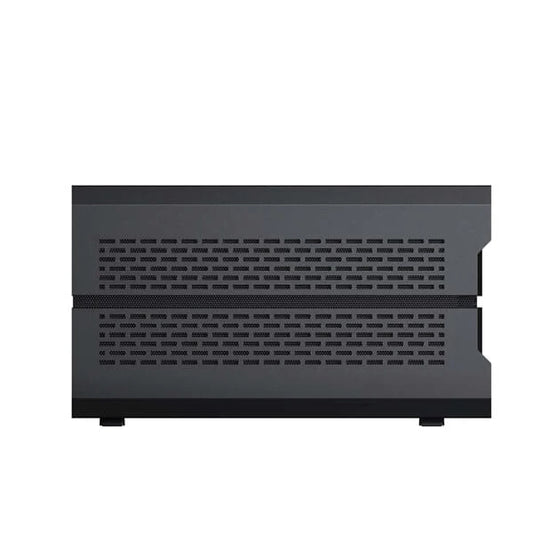

COMPACT
DIRECT FRESH AIR TO ALL SYSTEM COMPONENTS
-
72 mm CPU cooler height.
-
Full-size 3-slot GPU supports.

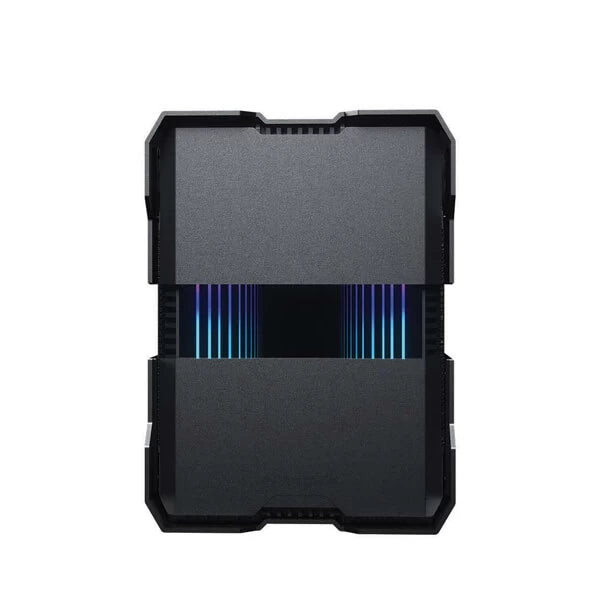

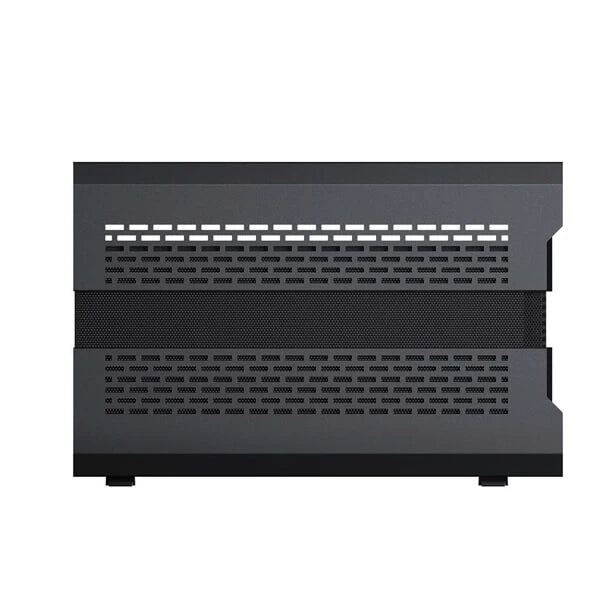

AIR BOOST
BOOSTED AIR COOLING WITH 2X 120 | 140 FANS IN THE TOP
-
72 mm CPU cooler height.
-
Full-size 3-slot GPU supports.
LIQUID COOLED
MAXIMUM COOLING PERFORMANCE WITH A 240 AIO LIQUID COOLER IN THE TOP
-
240 AIO CPU liquid cooler.
-
Full-size 3-slot GPU supports.
FULL SIZE GPU SUPPORT GEN4
-
No compromise on gaming performance.
-
Built-in Gen4 X16 Riser Cable and supports up to 324mm long 3-slot GPUs.
-
Powerful systems with 324mm long 3-slot GPUs and 72mm tall CPU coolers that have direct access to fresh air.
-
Unique riser lock to secure the GPU Riser Cable
BUILD WITH EASE
-

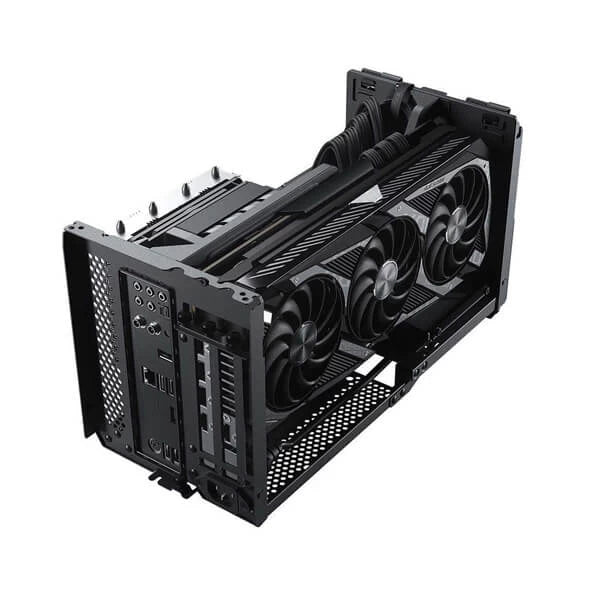

Open chassis design for easy installation.
-

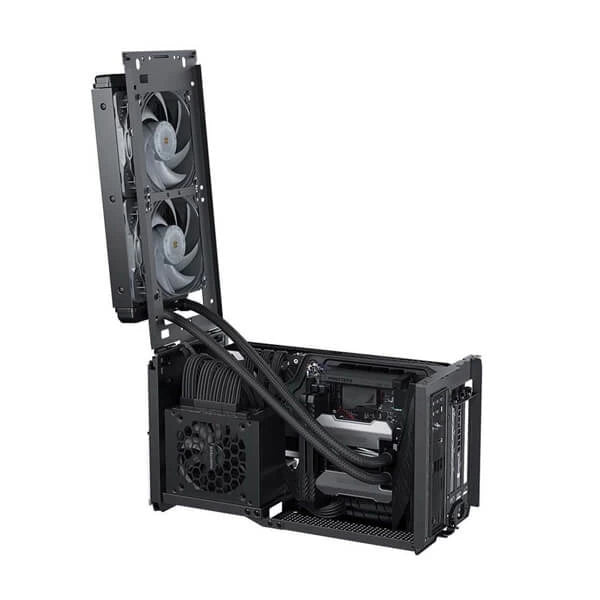

Chassis hinges open for direct access to all system components.
-
Convenient access to PSU power cables.
-
Multiple cable management hooks and Velcro ties to keep cables nice and tidy.
PREMIUM EXTERIOR
-
Solid anodized aluminum exterior panels.
-
Crafted and finished with high precision.
-
Front I/O features USB-C 10Gb/s & a USB 3.0 ports.
-

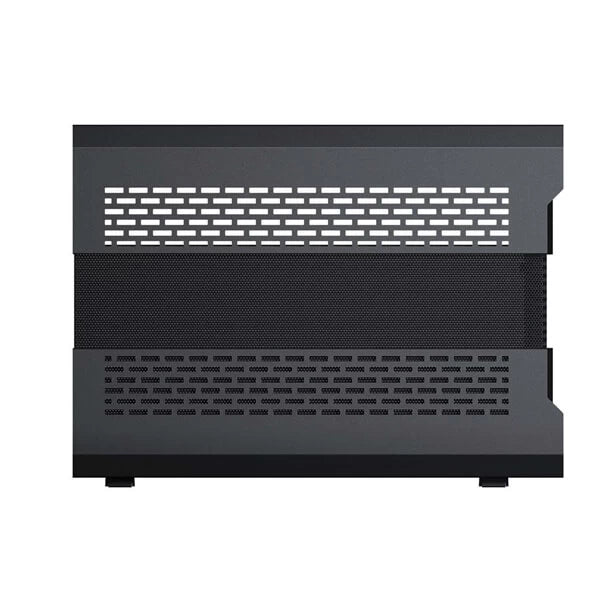

The Ultra-fine Mesh panels provide direct fresh air to the GPU cooler for optimum cooling performance.
-
All Phanteks D-RGB Lighting works straight out of the box, no software needed.
INTEGRATED D-RGB LIGHTING
-

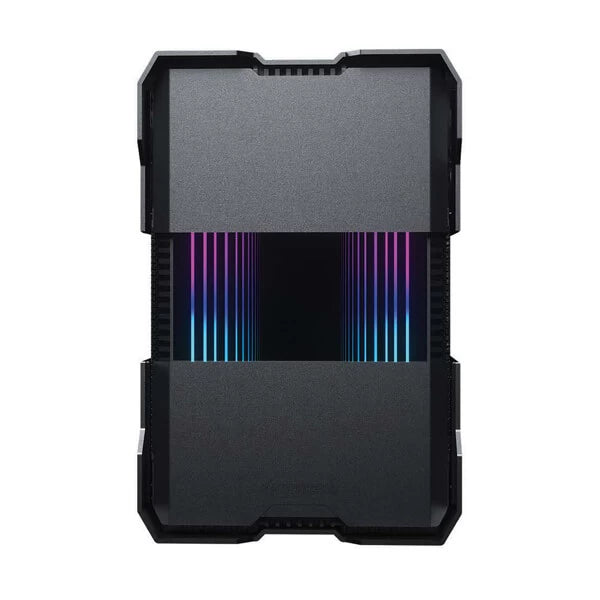

Intergrated D-RGB infinity mirror.
-
Refined D-RGB lighting effects that just work, no software required
-
Optionally sync with motherboard and software
ADDITIONAL SSD STORAGE
-
Chassis is designed for mainboard M.2 storage as main storage space.
-
If more storage is needed, an additional 2.5″ slot is available in the bottom.
Specifications of PHANTEKS EVOLV Shift XT ITX (Satin Black)
| Product Name | Evolv Shift XT |
| Model NO | PH-ES121XT-DBK01 |
| UPC Code | 886523302308 |
| Dimension (DxWxH) |
Small: 371 mm x 173 mm x 211 mm / 14.60 in x 6.81 in x 8.31 in Medium: 371 mm x 173 mm x 244 mm / 14.60 in x 6.81 in x 9.61 in Large: 371mm x 173 mm x 272 mm / 14.60in x 6.81 in x 10.71 in |
| Volume |
Small: 13.5L Medium:15.6L Large:17.4L |
| Form Factor | Small Form-Factor Mini-ITX Chassis |
| Material(s) | Aluminum Panels, Steel Chassis, Tempered Glass Infinity Mirror |
| Motherboard Support | mini-ITX |
| Front I/O | USB-C GEN 2, 1x USB 3.0, LED Mode Button, LED Color Button, Power Button |
| Internal Connectors | Power Switch, D-RGB Expansion, D-RGB Third Party, D-RGB MB Adapter, USB 3.0, USB 3.2 GEN 2 Type-E |
| Riser Cable | PCI-e 4.0 X16 pre-installed |
| Side Window | No, mesh side panels |
| PCI slots &Storage Bays | |
| PCI slots | 3 |
| Internal 3.5” bay | - |
| Internal2.5" bay | 1 |
| Fan Positions | |
| Top |
2x120mm fan 2x140mm fan |
| Radiator Positions | |
| Top | Up to240(120mm Radiator) |
| Clearances | |
| GPU length | 324mm / 12.76in |
| GPU thickness | 3-slot, 62mm / 2.44 in |
| GPU height (from PCI fingers) | 147mm / 5.79 in |
| CPU cooler height | 72mm / 2.83 in |
| Top Radiator Clearance | 315x150mm |
| Top fan Clearance | 32mm thickness |
| Top radiator+fan Clearance | 60mm thickness |
| PSU size | SFX, SFX-L (SFX is recommended) |
| Packaging & Shipping | |
| Dimensions (LxBxH) | 444 x 245 x 285 mm / 17.5 x9.6 x 11.2 in |
| Net Weight | 4.20kg / 9.26lbs |
| Gross Weight | 5.00kg / 11.02lbs |
| 40HQ (without pallet) | 2106 |
| 40FT (without pallet) | 1872 |
| 20FT (without pallet) | 936 |
| Warranty | 5 Years Limited |
| Note | *** Features, Price, Specifications are subject to change without notice. |
