- NOCTUA NH-U12A Chromax Black 120mm Single Tower CPU Air Cooler (Black)
Description
Features of NOCTUA NH-U12A Chromax Black 120mm Single Tower CPU Air Cooler (Black)

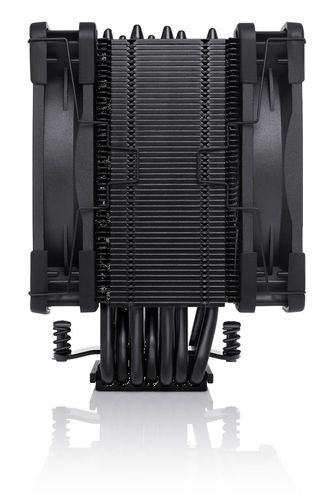

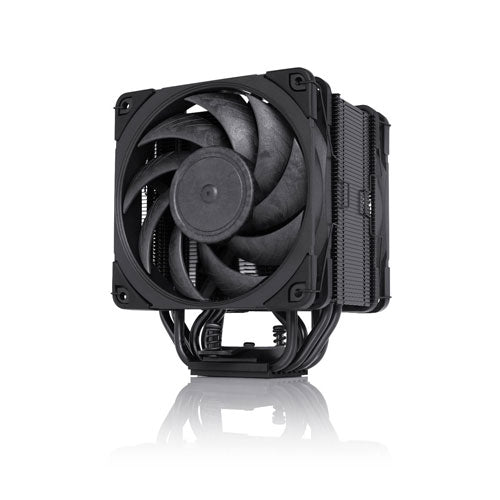

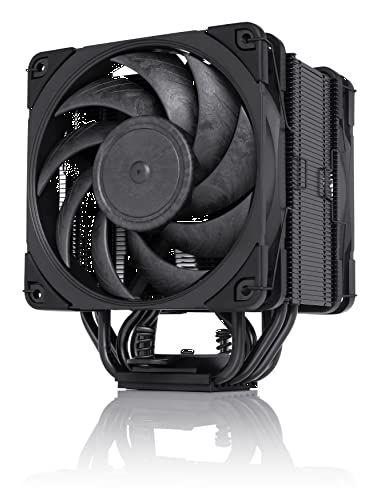

The NH-U12A chromax. black is an all-black version of Noctua award-winning NH-U12A premium-quality quiet CPU cooler. Thanks to the same proven asymmetrical single-tower heatsink design and state-of-the-art NF-A12x25 PWM fans, it stays true to the NH-U12A’s successful formula of fusing best-in-class cooling performance with superb quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fans and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U12A chromax.black is a deluxe choice for customers who seek a highly compatible 120mm heatsink that can rival the performance of 140mm units and looks just as great as it cools.
Cooler Specification
Socket compatibility Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 & AMD AM4, AM5
Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 58 mm
Weight (without fan) 760 g
Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 112 mm
Weight (with fan) 1220 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 169
Max. TDP see NSPR
Fan compatibility 120x120x25

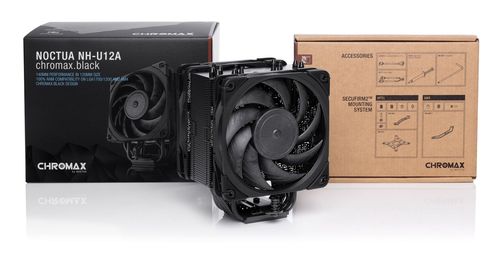

Scope of delivery
Black NH-U12A heatsink
2x NF-A12x25 PWM chromax.black premium fan
2x NA-RC14 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ mounting kit
Noctua Metal Case-Badge
Warranty 6 Years
FAN Specification
Model Noctua NF-A12x25 PWM chromax.black
Bearing SSO2
Max. rotational speed (+/- 10%) 2000 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1700 RPM
Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
Max. airflow 102,1 m³/h
Max. airflow with L.N.A. 84,5 m³/h
Max. acoustical noise 22,6 dB(A)
Max. acoustical noise with L.N.A. 18,8 dB(A)
Voltage range 12 V
MTTF > 150.000 h
Specifications of NOCTUA NH-U12A Chromax Black 120mm Single Tower CPU Air Cooler (Black)
Weight | 3 kg |
Brand | Noctua |
Warranty | 6 Years |
Reviews ( 0 )
Frequently asked questions
1. What is the TDP of NOCTUA NH-U12A?
The TDP of Noctua NH-U12A is 210W. What this implies is that it will dissipate a maximum of 210 watts of CPU heat, so it is particularly designed for heavy-duty processors. Noctua tests its coolers under real conditions to confirm their effectiveness and the NH-U12A was designed to effectively cool demanding CPUs. Due to its excellent cooling capacity, it is an ideal option for both gaming and intensive loads, e.g., overclocking. Noctua also publishes a list of supported CPUs on their site to make verification of compatibility convenient.
2. Does the NOCTUA NH-U12A come with thermal paste?
Yes, the Noctua NH-U12A is shipped with a tube of Noctua's NT-H1 thermal paste. The thermal paste is highly regarded to be of high quality and easy to apply. It facilitates heat conduction from the CPU to the cooler smoothly. Noctua with NT-H1 paste is beneficial because you don't need to purchase it as a standalone product. The paste is used by many individuals in the PC building community for the fact that it has a favorable performance rate and can be trusted, thus ensuring the cooling to be smooth and easy.
3. Is NOCTUA NH-U12A PWM or DC?
The Noctua NH-U12A features a PWM (Pulse Width Modulation) fan. It contains Noctua's NF-A12x25 PWM fan, a good quality fan. PWM fans regulate speed automatically with the CPU temperature. They spin quicker when the CPU becomes warm. When the CPU is cool, the fan spins slowly. It maintains the noise at minimum while it provides enough cooling. People mostly use PWM fans in comparison to DC fans since they work well and provide better automatic speed control.
4. Is NOCTUA NH-U12A quiet?
Yes, Noctua NH-U12A is extremely silent. Noctua is renowned for making quiet coolers because they take special care in designing their fans and heatsinks. The NF-A12x25 PWM fan that comes bundled with this cooler is particularly silent even under high speed. Although there is no such thing as totally silent air coolers, particularly under heavy loads, the NH-U12A is one of the quietest high-performance air coolers on the market. Noctua has a great reputation of building coolers with the best possible cooling and extremely less noise.
5. What is the RPM of NOCTUA NH-U12A fan?
The Noctua NH-U12A comes with an NF-A12x25 PWM fan having an adjustable speed range in terms of RPM. The speed of the fan gets adjusted according to CPU temperature, which is monitored by the motherboard. During the heavy loading by the CPU, the fan spins faster in order to cool down the CPU. When the CPU is not in use, the fan slows down to decrease noise. Noctua states the exact RPM value and other specs of the fan on their website, so you can also check the exact speed there if you need it.
6. How big is NOCTUA NH-U12A?
The Noctua NH-U12A is a mid-range air cooler, but you should check its size before buying. You need to make sure that it will fit inside your PC case and not get in the way of other parts, like RAM sticks. The exact height, width, and depth of the cooler are available on Noctua's website. Always double-check these measurements with your PC case and RAM height so that everything can run smoothly. Proper fit is very important when building a computer.
7. What is the radiator size of the NOCTUA NH-U12A?
The Noctua NH-U12A is not a water cooler, and therefore it does not possess a radiator like a water cooler does. It does, however, have a big heatsink tower constructed of numerous thin metal fins that are responsible for dissipating the heat from the CPU. This heatsink functions similarly to a radiator, capable of dissipating the CPU's heat with the assistance of the fan. The precise dimensions of this heatsink, i.e., height, width, and depth, are on the Noctua website. Double-checking these dimensions helps to ensure that the cooler will fit inside your computer.
8. Is NOCTUA NH-U12A good enough?
Yes, Noctua NH-U12A is a heavy-duty air cooler. It does a good job cooling most high-end CPUs and even has some overclocking. It is commonly compared to larger dual tower coolers since it can cool so effectively. For everyone except the most extreme users, it is more than sufficient. If you are overclocking a very hot CPU or using a very TDPed CPU, however, you might need a larger dual tower cooler or liquid cooler to provide superior performance.
9. How many watts can a NOCTUA NH-U12A handle?
The Noctua NH-U12A supports up to 250 watts of heat, so most of the high-end CPUs will be more than sufficient. This means that it can cool powerful processors, like those found in gaming, video editing, and other resource-demanding programs. Even when overclocked, the NH-U12A performs well due to its solid build and high-quality materials. Noctua has also tested this cooler to ensure that it can sustain heavy heat loads, so you can be sure that it will keep your CPU cool when it is heavily used. For certain CPU compatibility, you may visit Noctua's website, where they list processors that are compatible with this cooler.
10. Is the NOCTUA NH-U12A Single Tower or Dual Tower?
The Noctua NH-U12A is a single tower air cooler. It has one metal fin heatsink tower. Single tower coolers such as this one tend to be easier to accommodate in PC cases and provide additional clearance space for high RAM sticks. Dual towers often hamper RAM slots, but the single tower of the NH-U12A does not. It is an excellent option for individuals who require good cooling without the hassle of dealing with case or RAM fitting issues.
