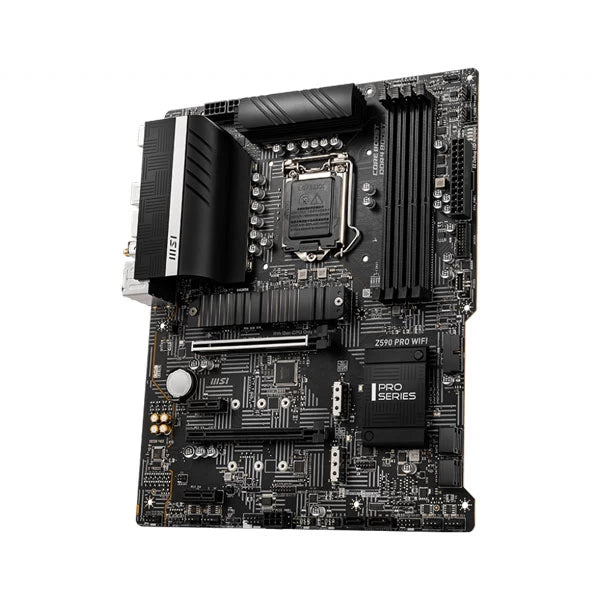

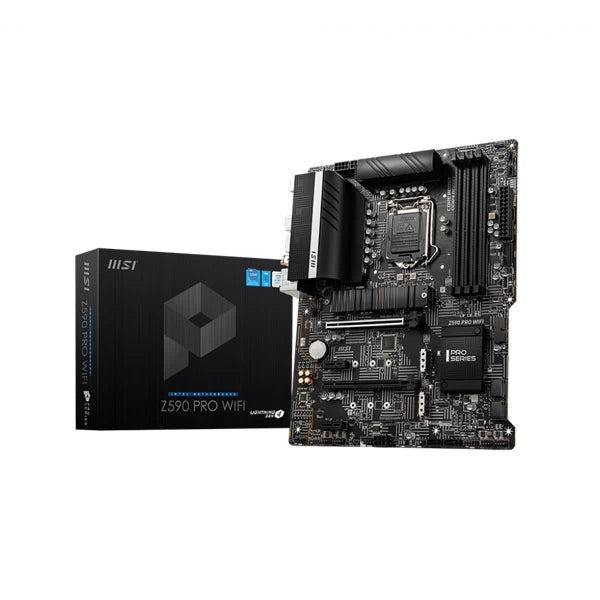

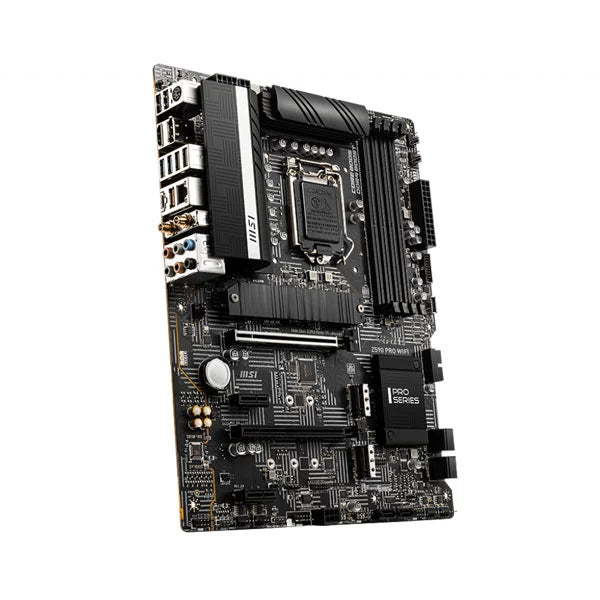

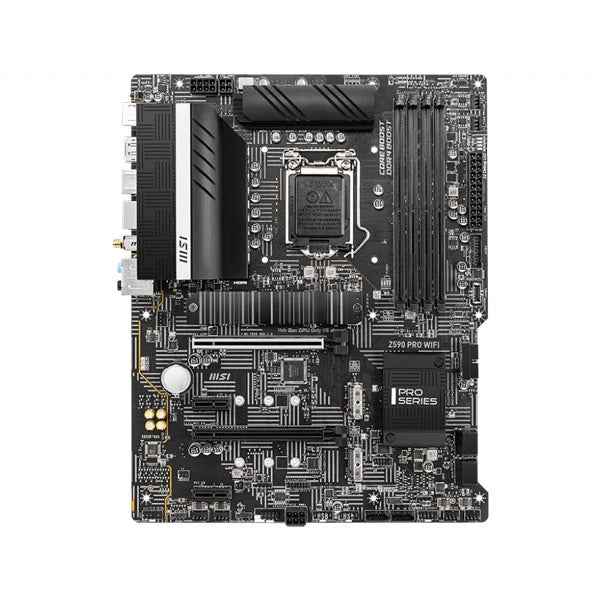

MSI Z590 Pro Wifi DDR4 Intel Motherboard

Feature of MSI Z590 PRO WiFi DDR4

MSI Z590 Pro Wifi DDR4 gives the most immersive audio experience as it comes with studio sound quality. MSI Z590 PRO WiFi Motherboard supports two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.

1. Supports 10th Gen Intel^® Core™, 11th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors for LGA 1200 socket
2. Supports DDR4 Memory, up to 5333(OC) MHz
3. Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2
4. Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
5. 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
6. Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
7. Audio Boost: Reward your ears with studio grade sound quality
8. Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™

Supports Intel Core 11th Gen Processors

The Z590 PRO WIFI motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.

• Form Factor: ATX
• Socket Type: LGA 1200
• Chipset: Intel Z590

12+2+1 Power Design

With its paired 8+4 pin power connectors and exclusive Core Boost technology, the Z590 PRO WIFI is able to sustain heavy CPU power loads to support system-demanding settings:

1. 12 Duet Rail CPU Power System, DrMOS 55A
2. 1-Phase SA Power
3. 2-Phase GT Power
4. Digital PWM IC

Integrated Cooling

VRM Cooling: Features an extended heatsink and 7W/mK thermal pad.

• PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
• SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
• System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

• 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)
• 1 x PCI-e 3.0 x16 slot (CrossFire supported)
• 2 x PCI-e 3.0 x1 slots

Specifications of MSI Z590 PRO WiFi DDR4
