Description

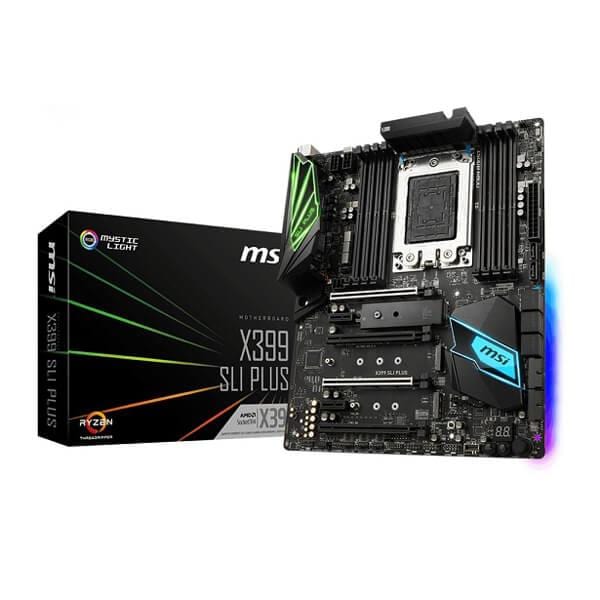

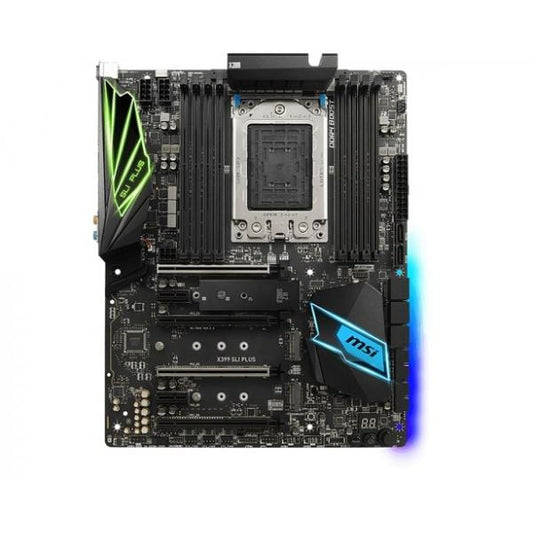

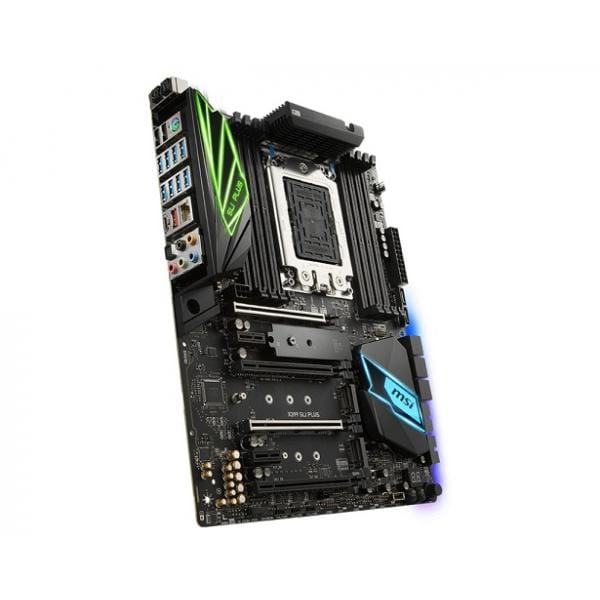

MSI X399 SLI Plus Motherboard
Features:
- Supports AMD® RYZEN™ THREADRIPPER™ Series Processors
- Support 8 DIMMs, Quad Channel DDR4 3600 (OC)
- DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance.
- AUDIO BOOST 4: Reward your ears with studio grade sound quality for the most immersive audio experience
- Mystic Light and Mystic Light Sync: Personalize your PC with 16.8 million colors / 17 effects controlled in one click with the Mystic Light APP or a mobile device.
- Professional IO cover & heatsink: Stunning looks, protecting the I/O ports
- EZ Debug LED: Easiest way to troubleshoot
- Lightning Fast Game experience: 3 x Turbo M.2 , 1 x M.2 Shield, and Lightning USB 3.1 Gen2
- Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A Type C
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI
Specifications:
| PROCESSOR | Supports 1st and 2nd Gen AMD® RYZEN™ THREADRIPPER™ Series Processors for SocketTR4 |
| CHIPSET | AMD® X399 Chipset |
| MEMORY |
8 x DDR4 memory slots, support up to 128GB Quad channel memory architecture1 Supports DDR4 3600 (OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2800(OC)/ 2667(nonOC-by SPD)/2667(OC)/ 2400/ 2133 MHz2 Supports ECC UDIMM memory Please refer the DIMM Slots section for more details. For the latest information about memory, please visit Msi Website |
| SLOTS |
2x PCIe 3.0 x16 slots (PCIE_1, PCIE_4) 2x PCIe 3.0 x8 slots (PCIE_3, PCIE_6) 2x PCIE 2.0 x1 Slots |
| MULTI-GPU |
Supports 4-Way NVIDIA® SLI™ Technology Supports 4-Way AMD® CrossFire™ Technology |
| STORAGE |
AMD® X399 Chipset 8 x SATA 6Gb/s ports AMD® RYZEN THREADRIPPER Series Processors 3 x M.2 ports (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices |
| RAID |
AMD® X399 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB |
ASMedia® ASM3142 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel AMD® X399 Chipset 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD® CPU 8 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| AUDIO |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel® I211 Gigabit LAN controllers |
| INTERNAL CONNECTORS |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector 1 x 6-pin ATX 12V power connector1 8 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 1 x USB 3.1 Gen2 Type-C port 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 4 x 4-pin system fan connectors 2 x Front panel connectors 1 x Front panel audio connector 2 x RGB LED connector 1 x TPM module connector 1 x LED demo connector 1 x Rest Button 1 x Power Button 1 x OC Button 1 x Chassis Intrusion connector 1 x clear CMOS header Provides additional power to PCIe x16 slots |
| BACK PANEL PORTS |

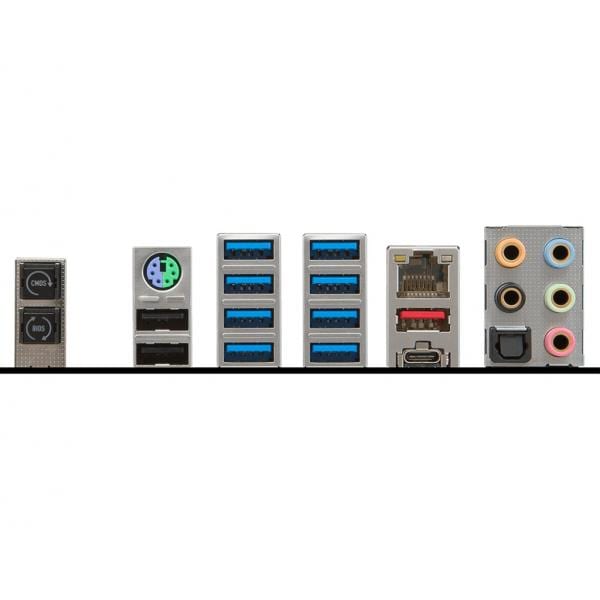

Clear CMOS PS/2 Combo Port USB 3.1 Gen 1 LAN Port HD Audio Connectors Flash BIOS Button USB 2.0 Port LIGHTNING USB 3.1 Gen2 Type A C Optical S/PDIF-Out |
| DIMENSIONS |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) ATX Form Factor |
| MOUNTING | 9 mounting holes |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
