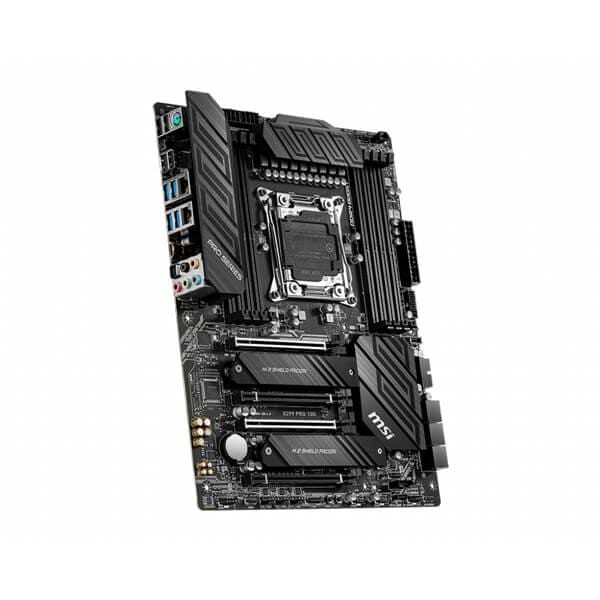

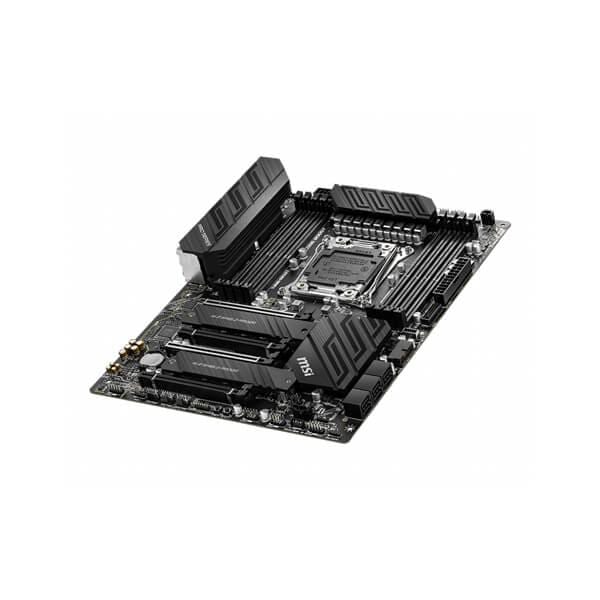

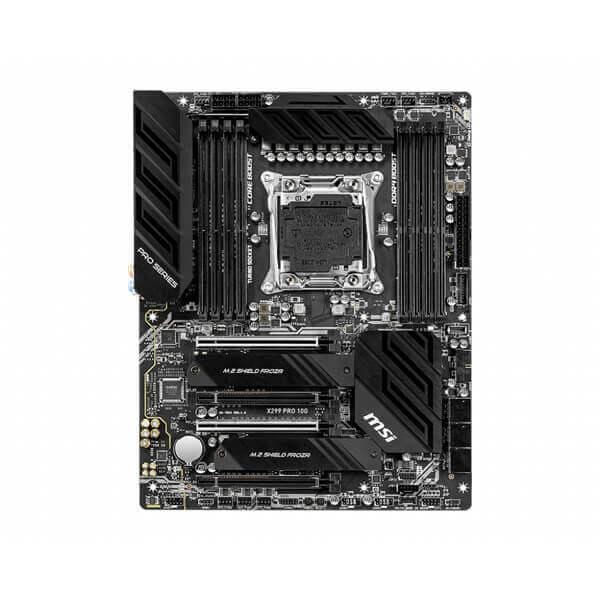

- MSI X299 Pro 10G DDR4 Intel Motherboard
Description
Feature of MSI X299 Pro 10G DDR4
- Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
- Supports DDR4 Memory, up to 4200 (OC) MHz
- Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
- Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- M.2 XPANDER-Z: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
- Set Core Power Free: Core Boost, 2x8 pin CPU power connector, Core Boost, DDR4 Boost.
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Dual LAN onboard: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
- 10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™
DIY FRIENDLY
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
COOLING
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you to cool your system any way you want.
HARDWARE
MSI X299 Pro 10G DDR4 motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy.
COMPATIBILITY
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.
BIOS AND SOFTWARE
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.
CPU
High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.
MEMORY
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.
STORAGE
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB
Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb.
IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
Specifications of MSI X299 Pro 10G DDR4
Processor | Supports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066 |
Chipset | Intel® X299 Chipset |
Memory |
8 x DDR4 memory slots, support up to 256GBSupports DDR4 4200 (OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
Quad channel memory architecture |
Slots |
4x PCIe 3.0 x16 slots Support x16/x8/x16/x8 mode with the 48-lane CPU. Support x16/x4/x16/x8 mode with the 44-lane CPU. Support x16/x4/x8/x0 mode with the 28-lane CPU.Please refer to user manual for PCIe 3.0 bandwidth table. |
Multi-GPU |
Supports 3-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
Storage |
Intel® X299 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slot (Key M)Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory ReadyThe SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M2_1 slot. The M2_2 default setting is CPU lane. However, when a PCIe expansion card is installed in the PCI_E2 slot, the M2_2 will be automatically switched to PCH lane. The SATA2 connector will be unavailable when M2_2 uses PCH lanes and a M.2 SATA SSD is installed in the M2_2 slot. M2_2 supports Intel® Optane™ Memory by switching to PCH lanes. |
RAID |
Intel® X299 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 PCIe storage devices |
USB |
ASMedia® ASM3242 Chipset 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel ASMedia® ASM3142 Chipset 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C internal connector Intel® X299 Chipset 8 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors) 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors) |
Audio |
Realtek® ALC1220 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN |
1 x Intel I219-V Gigabit LAN controller 1 x Realtek RTL8125-CG 2.5G LAN controller 1 x Aquantia® AQC107 10-Gigabit LAN card I219 LAN doesn’t support G3 to S5 Wake |
Internal connectors |
1 x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 1x USB 3.2 Gen2 Type-C port 1x 4-pin CPU fan connector 1x 4-pin Water Pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Chassis Intrusion connector 1x Virtual RAID on CPU connector 1x Thunderbolt Add-on Card Connector |

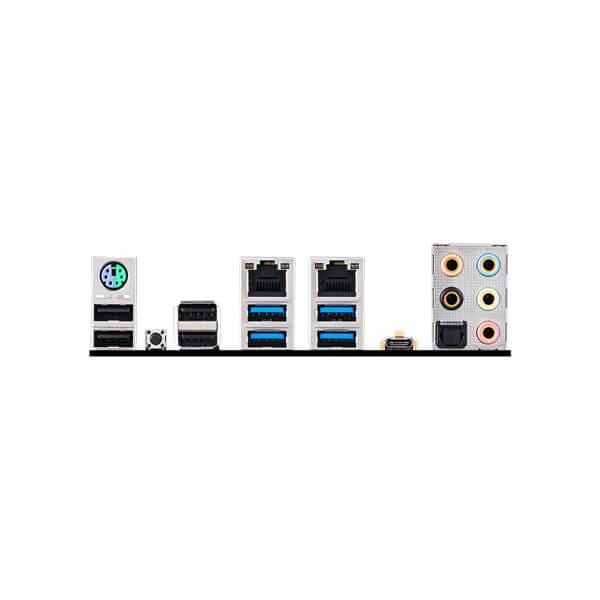

Back panel ports |
Keyboard / Mouse Gigabit LAN 2.5G LAN Audio Connectors USB 2.0 Clear CMOS Button USB 2.0 USB 3.2 Gen1 Type-A USB 3.2 Gen1 Type-A USB 3.2 Gen2x2 20G Type-C Optical S/PDIF out |
Dimensions |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
Mounting | 9 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and specifications are subject to change without notice. |
