Description

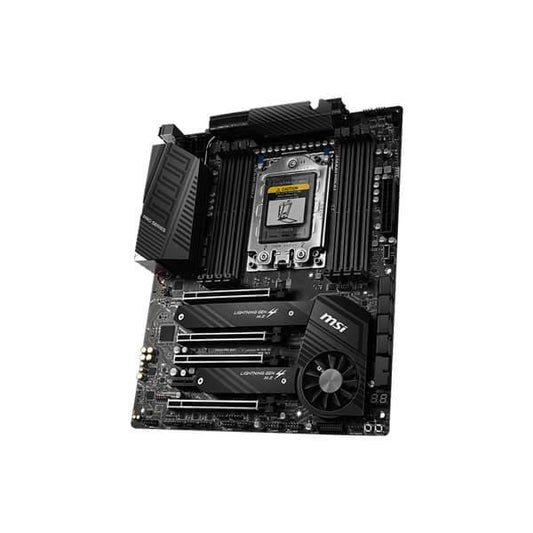

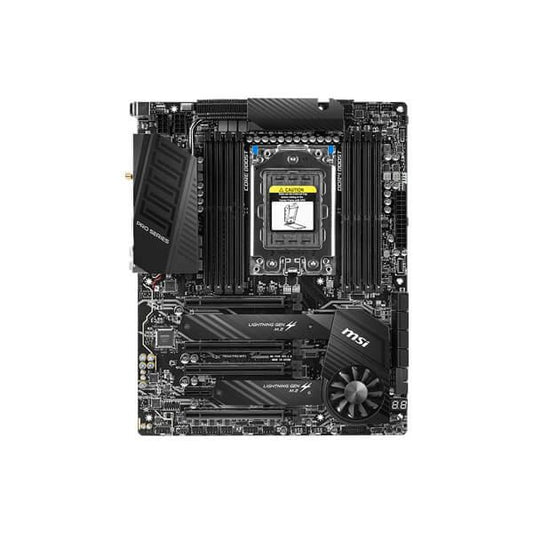

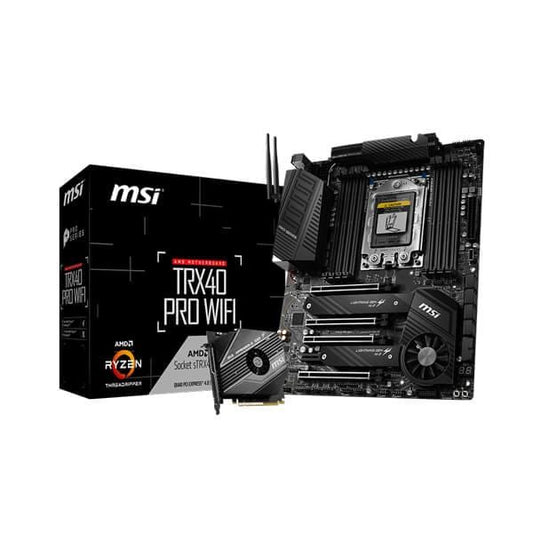

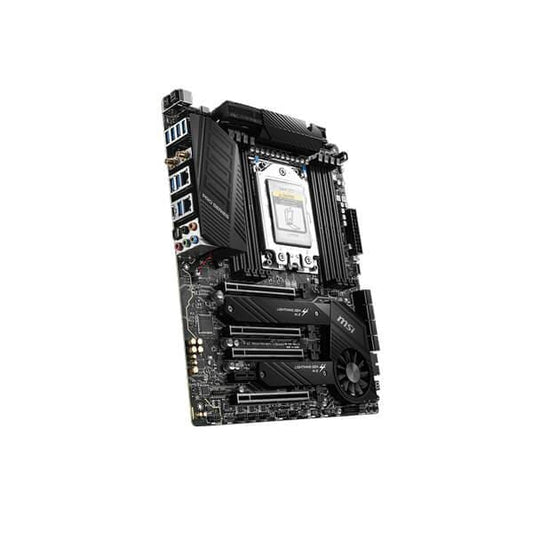

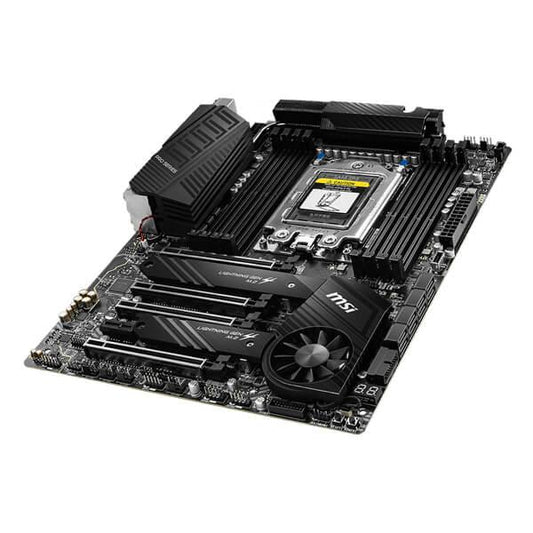

MSI TRX40 Pro WiFi Motherboard
No need to worry about lag anymore as the Msi TRX40 PRO WIFI comes with an onboard 10G super LAN plus card which helps for smooth gaming and professional multimedia use.Comes with PCI-E Gen3 x4 which maximizes performance for NVMe based SSDs. This helps to enjoy the games at a lightning-fast speed.Msi TRX40 PRO WIFI gives the most immersive audio experience as it comes with studio sound quality.Supports three-way SLI Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.
Features:
- Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
- Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12 3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
- M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
- Dual LAN onboard and latest Wi-Fi 6 solution: Premium network solution for professional and multimedia use, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering a secure, stable and fast network connection.
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire
Specifications :
Processor | 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors |
Chipset | AMD® TRX40 Chipset |
Memory |
8x DDR4 memory slots, support up to 256G Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz1DPC 1R max speed 4666 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHzQuad channel memory architecture Supports Intel® Extreme Memory Profile (XMP) Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
Slots |
4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode) 1 x PCIe 3.0 x1 slot |
Multi-GPU |
Supports 3-Way NVIDIA® SLI™ Technology Supports 3-Way AMDA® CrossFire™ Technology |
Storage |
8 x SATA 6Gb/s ports2 x M.2 slots (Key M)M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
RAID | Supports RAID 0, RAID 1 and RAID 10 |
USB |
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector) 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel |
Audio |
1x Realtek® ALC1220 Codec7.1-Channel High Definition Audio
1x Realtek® ALC4050H CodecSupports front & rear panel Mic-in |
LAN | 2 x Intel® I211AT Gigabit LAN controller |
WiFi & Bluetooth |
Intel® Wi-Fi 6 AX200 The Wireless module is pre-install in the M2_4 (Key-E)slot Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps Supports Bluetooth® 5 |
Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 8x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump Fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin 5050 RGB LED connector 2x 3-pin ARGB LED connectors 1x 3-pin CORSAIR LED connector 1x Slow mode booting jumper 1x Power button 1x Reset button |

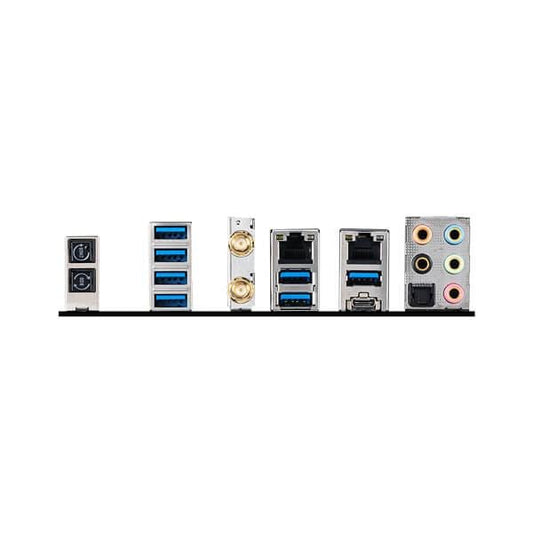

Back panel ports |
Clear CMOS Button Wireless / Bluetooth Gigabit LAN Gigabit LAN Audio Connectors Flash BIOS Button USB 3.2 Gen1 Type-A USB 3.2 Gen2 Type-A USB 3.2 Gen2x2 20G Type-C Optical S/PDIF out |
Dimensions |
12 in. x 9.6 in. (30.4 cm x 24.4 cm) ATX Form Factor |
Mounting | 9 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
