Description
Feature of MSI TRX40 Pro 10G Wifi DDR4
Msi TRX40 Pro 10G is very reliable as it has gone through over 7000+ validation hours of industrial-level tests.No need to worry about lag anymore as the Msi TRX40 Pro 10G comes with an onboard 10G super LAN plus card which helps for smooth gaming and professional multimedia use.Comes with PCI-E Gen3 x4 which maximizes performance for NVMe based SSDs. This helps to enjoy the games at a lightning-fast speed.Msi TRX40 Pro 10G gives the most immersive audio experience as it comes with studio sound quality.Supports three-way SLI Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.
- Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
- Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
- Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12 3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
- M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
- Dual LAN onboard: Premium network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- 10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
- Audio Boost 4: Reward your ears with studio grade sound quality.
- Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire
DIY FRIENDLY
MSI TRX40 Pro 10G Wifi DDR4 motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers
HARDWARE
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights
Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.
BIOS and Software
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover,
ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield
MEMORY
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4
Storage
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over
USB
Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 20Gb/s
IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
CONNECTIVITY
Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the users tunes.
LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
Specifications of MSI TRX40 Pro 10G Wifi DDR4
Processor | 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors |
Chipset | AMD® TRX40 Chipset |
Memory |
8x DDR4 memory slots, support up to 256G Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz1DPC 1R max speed 4666 MHz 1DPC 2R max speed 4000 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHzQuad channel memory architecture Supports Intel® Extreme Memory Profile (XMP) Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
Slots |
4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode) 1 x PCIe 3.0 x1 slot |
Multi-GPU |
Supports 3-Way NVIDIA® SLI™ Technology Supports 3-Way AMDA® CrossFire™ Technology |
Storage |
8x SATA 6Gb/s ports 2x M.2 slot (M2_3, Key M)Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor 2x M.2 slots (M2_1 & M2_2, Key M)M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
RAID | Supports RAID 0, RAID 1 and RAID 10 |
USB |
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector) 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors) 4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel 1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel |
Audio |
1x Realtek® ALC1220 Codec7.1-Channel High Definition Audio
1x Realtek® ALC4050H CodecSupports front & rear panel Mic-in |
LAN | 2 x Intel® I211AT Gigabit LAN controller |
Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 8x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen2 Type-C port 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin Water Pump Fan connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin 5050 RGB LED connector 2x 3-pin ARGB LED connectors 1x 3-pin CORSAIR LED connector 1x Slow mode booting jumper 1x Power button 1x Reset button |
Back panel ports |

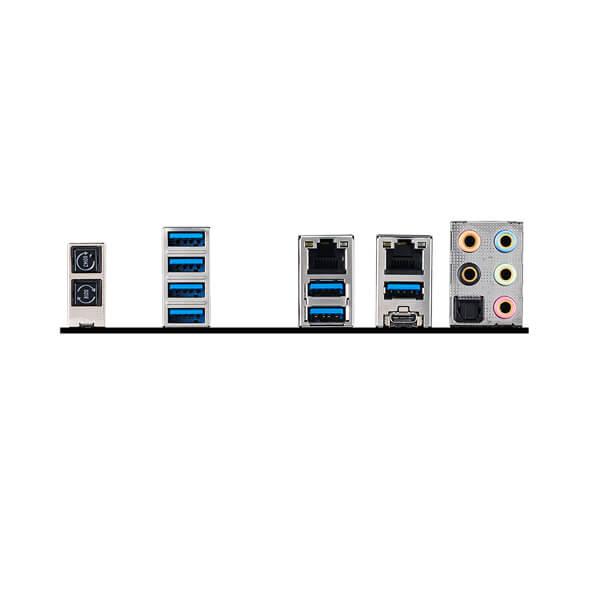

Clear CMOS Button USB 3.2 Gen1 Type-A Gigabit LAN Gigabit LAN Audio Connectors Flash BIOS Button USB 3.2 Gen2 Type-A USB 3.2 Gen2x2 20G Type-C Optical S/PDIF out |
Dimensions |
12 in. x 9.6 in. (30.4 cm x 24.4 cm) ATX Form Factor |
Operating System | Support for Windows® 10 64-bit |
Mounting | 9 mounting holes |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
