- MSI Pro B760M-A Wifi DDR4 Intel Motherboard
Description
Features Of MSI Pro B760M-A Wi-Fi
PRO B790M-A WIFI DDR4
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
12+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
DIY FRIENDLY
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
DDR4 MEMORY SOLUTION
With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
BIOS & SOFTWARE
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Specifications Of MSI Pro B760M-A Wi-Fi
Model | |
Brand | MSI |
Model | B760M-A |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipsets | |
Chipset | INTEL B760 |
Memory | |
Number of Memory Slots | 4 x DDR4 |
Memory Standard | Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 |
Maximum Memory Supported | 128 GB |
Channel Supported | Dual Channel DDR4 Memory Technology |
Expansion Slots | |
PCI Express x1 | 1 x PCI Express x1 slot |
PCI Express x16 | 2.x PCI-E x16 slot,PCI_E1 PCIe 4.0 supports up to x16 (From CPU), PCI_E2 PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
Storage Devices | |
SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
Onboard Video | |
Onboard Video Chipset | Integrated |
Onboard Audio | |
Audio Channels | 7.1-Channel High Definition Audio |
Audio Chipset | Realtek ALC897 Codec |
Onboard LAN | |
LAN Chipset | Realtek® RTL8125BG 2.5Gbps LAN controller |

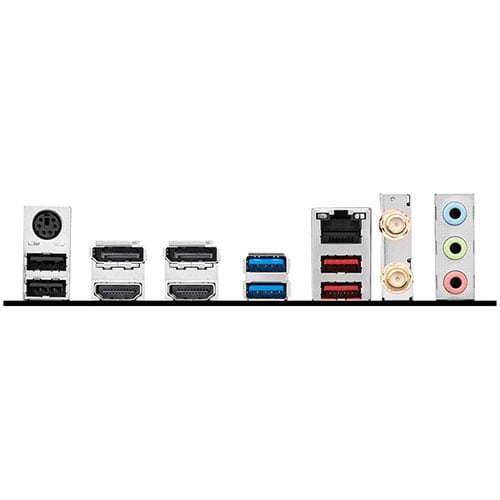

Rear Panel Ports | |
USB | USB, 3.2 Gen 1 5Gbps (Type-A), USB 2.0 USB 3.2 Gen 2 10Gbps (Type-A) |
Audio Ports | Audio Connectors |
PS/2 | 1 x PS/2 Keyboard/Mouse combo port |
Video Ports | 1 x DisplayPort and 1 x HDMI |
HDMI | 1 x HDMI Port |
Onboard USB | |
Onboard USB | N/A |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | Micro ATX Form Factor |
Power Pin | 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR) |
Dimensions | 243.84mmx243.84mm |
