- MSI Pro B760-P Wifi DDR4 Intel Motherboard
Description
Features Of MSI Pro B760-P Wi-Fi
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- MSI Pro B760-P Wifi DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
MSI Business & Productivity
MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.
For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

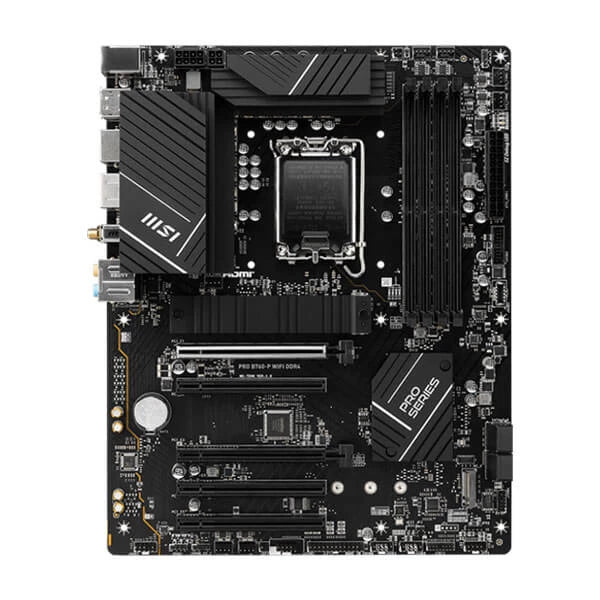

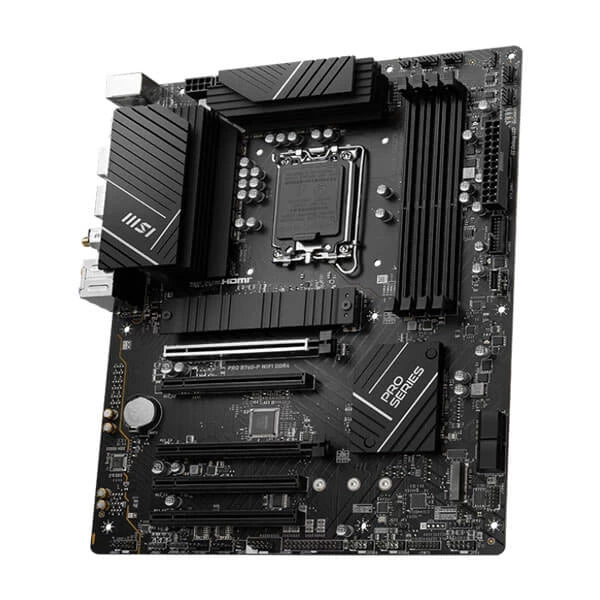

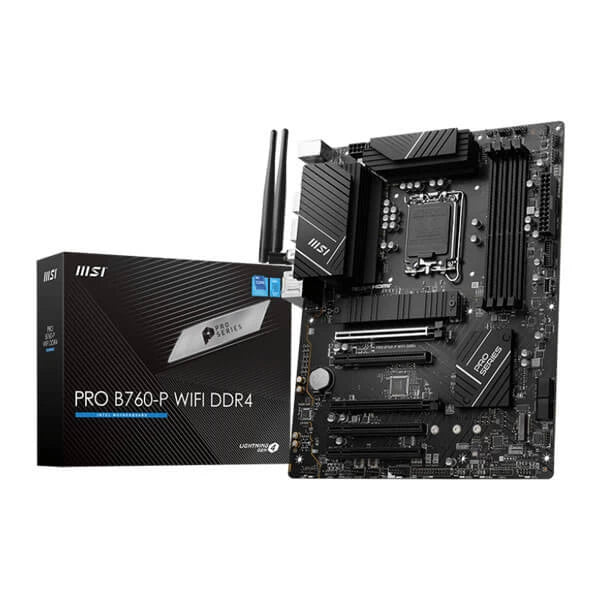

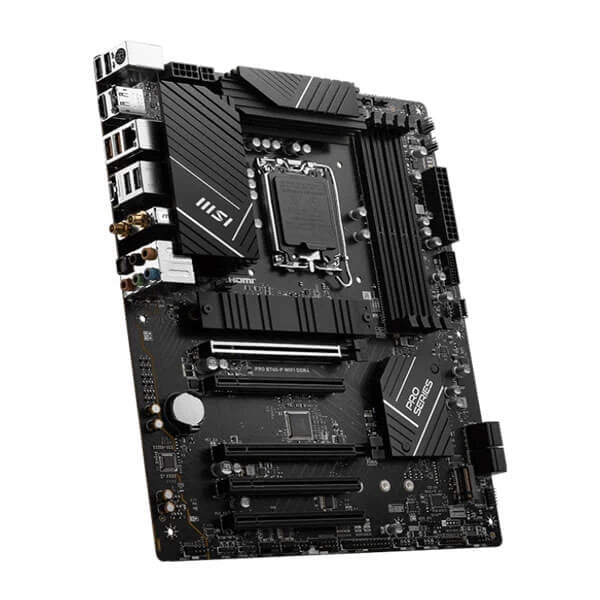

PRO B760-P WIFI DDR4
Business Elegance
The PRO B760-P WIFI DDR4 is a business-oriented ATX motherboard featuring the latest Intel B760 chipset that supports ample RAM capacity.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 12 Duet Rail Power System with P-PAK
- 4 x DDR4 DIMMs with Memory Boost: Dual Channel (128GB Max. / 5333MHz OC)
- 2 x PCIe 4.0 x16 slots
- Lightning Gen4 M.2 & M.2 Shield Frozr
- USB 3.2 Gen 2 Type-C (10Gbps)
- 7.1 HD Audio with Audio Boost
- Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3
Supports Intel Core 12th & 13th Gen Processors
The PRO B760-P WIFI DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: ATX
Socket Type: LGA 1700
Chipset: Intel B760
12+1 Duet Rail Power System with P-PAK
With its 8 pin + 4 pin power connectors and exclusive Core Boost technology, the PRO B760-P WIFI DDR4 is able to sustain heavy CPU power loads to support system-demanding work settings:
1. Digital PWM IC
2. 12-Phase Duet Rail CPU Power (P-PAK)
3. 1-Phase GT Power
4. 1-Phase AUX Power
Integrated Cooling Features
VRM Cooling: Features an extended heatsink, 7W/mK MOSFET thermal pads and additional choke thermal pads for improved thermal dissipation.
PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.
SSD Cooling: M.2 Shield Frozr prevents thermal throttling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
4 x DDR4 Dual Channel (5333 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 5333+ MHz, supports Intel XMP.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
2 x PCIe 4.0/3.0 x16 slots* (primary slot with Steel Armor)
3 x PCIe 3.0 x1 slot
*Supports x16/x4
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr: MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Gen4 M.2 Connectors
The PRO B760-P WIFI DDR4 motherboard features MSI’s Gen4 M.2 slots:
2 x Gen4 x4 64Gbps slots*
*1 with M.2 Shield Frozr
Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2 Type-C: Connect to devices and transfer files at high bandwidth rates: 10Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Specifications Of MSI Pro B760-P Wi-Fi
Model | PRO B760-P WIFI DDR4 |
Chipset | INTEL B760 |
CPU SUPPORT |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
Memory |
4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz |
Onboard Graphics |
1x HDMI™ 1x DisplayPort Support HDMI™ 2.1, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
EXPANSION SLOT |
5x PCI-E x16 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x16 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 PCIe 3.0 supports up to x1 (From Chipset) |
Storage |
2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) |
LAN | Realtek® RTL8125BG 2.5G LAN |
Audio |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
Internal I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen1 Type C |
LED FEATURE | 4x EZ Debug LED |

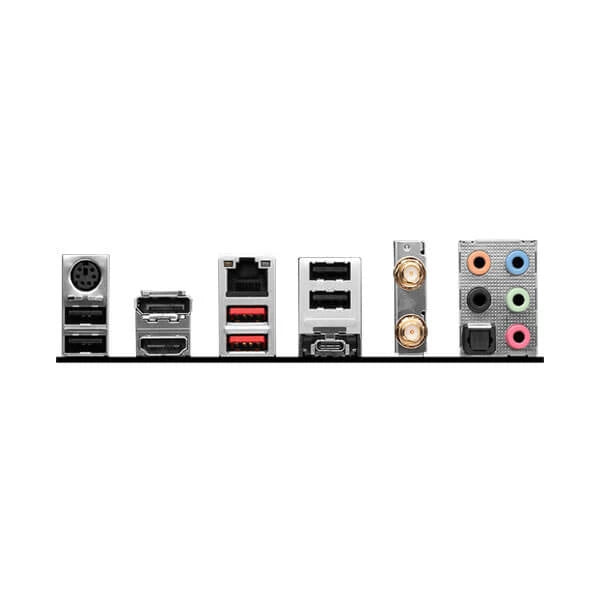

BACK PANEL PORTS |
Keyboard / Mouse DisplayPort 2.5G LAN USB 2.0 Wi-Fi / Bluetooth Audio Connectors USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension |
ATX 243.84mmx304.8mm |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
