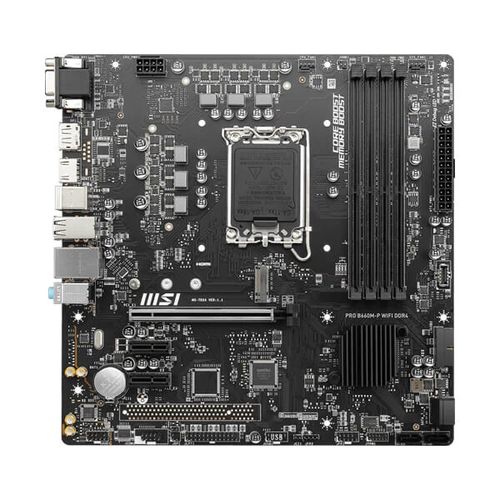

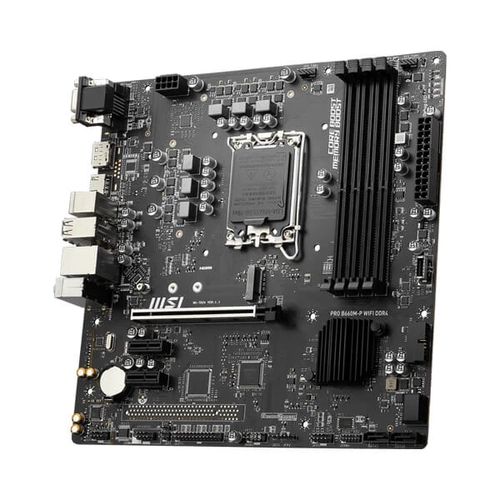

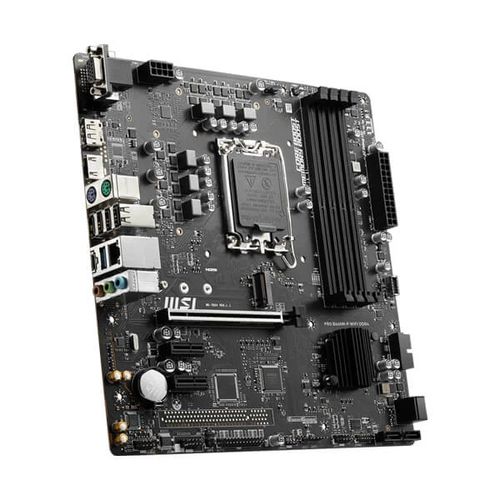

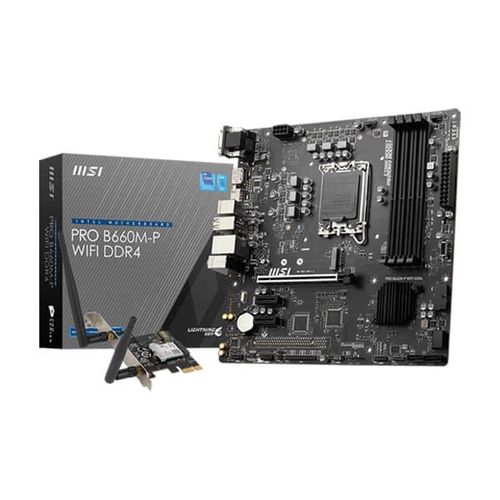

- MSI Pro B660M-P Wifi DDR4 Intel Motherboard
Description
Feature of MSI Pro B660M-P WiFi DDR4
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI Pro B660M-P Wifi DDR4 motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to ionstall your own motherboard without any issue.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
CONNECTIVITY
The most important thing of DIY expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster stroage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4600+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
- Wireless and Bluetooth: Intel® Dual Band Wireless-AC 3168, Bluetooth 4.2
Specifications of MSI Pro B660M-P WiFi DDR4
Model | PRO-B660M-P-WIFI-DDR4 |
CPU |
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
CHIPSET | Intel® B660 chipse |
MEMORY |
4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
EXPANSION SLOT |
1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0 |
ONBOARD GRAPHICS |
1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz1/2 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz1/2 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
AUDIO |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
LAN | 1x Realtek® RTL8111H 1Gbps LAN controller |
STORAGE |
4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
FORM FACTOR |
M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
WI-FI & BLUETOOTH |
Intel® Dual Band Wireless-AC 3168 Dual Band 1x1 802.11ac 2.4GHz/ 5GHz bands 433 Mbps Max Speed Bluetooth 4.2 (BR/EDR, BLE) Supports Windows 7/ 8.1/ 10 |
BIOS FEATURES |
1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language |
POWER CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector |
INTERNAL USB CONNECTORS |
1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports |
FAN CONNECTORS |
1x 4-pin CPU fan connector 1x 4-pin system fan connector |
SYSTEM CONNECTORS |
1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x parallel port connector 1x Serial port |
POWER CONNECTORS | 1x Clear CMOS jumper |
LED FEATURE | 4x EZ Debug LED |

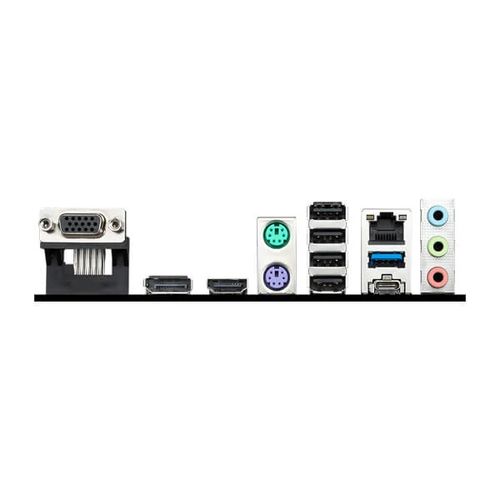

BACK PANEL CONNECTORS |
VGA DisplayPort HDMI Keyboard / Mouse USB 2.0 LAN port Audio connectors USB 3.2 Gen 2 10Gbps Type-C USB 3.2 Gen 1 5Gbps Type-A |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
