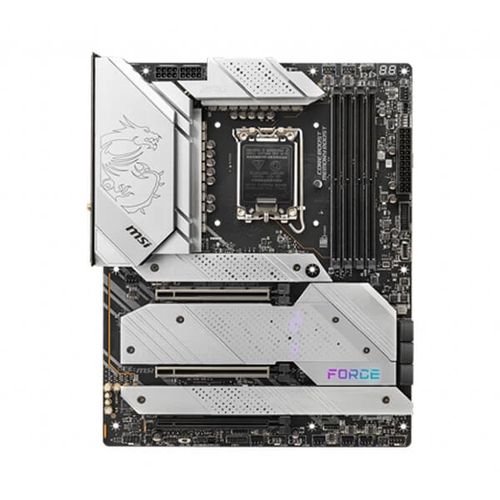

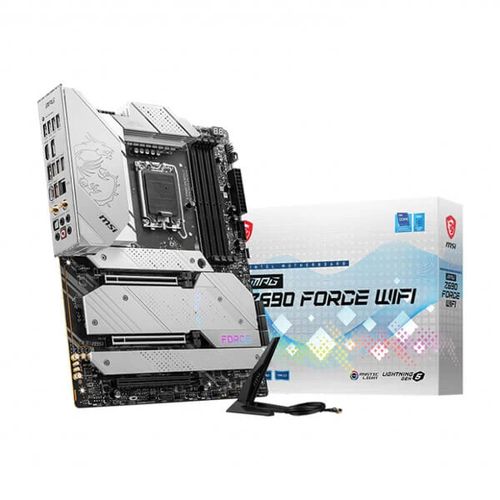

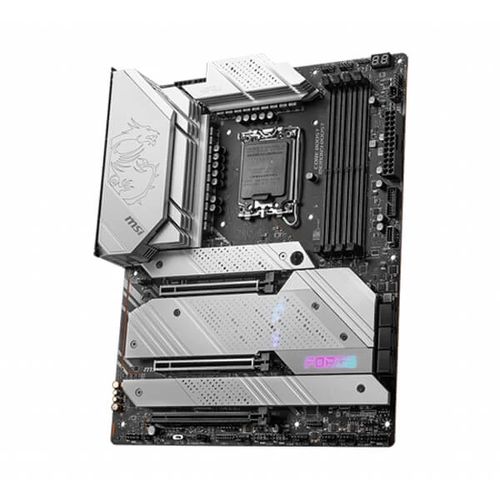

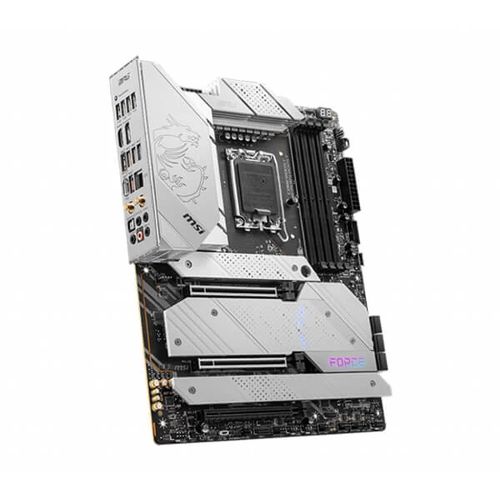

- MSI MPG Z690 Force Wifi DDR5 Intel Motherboard
Description
Features of MSI MPG Z690 Force Wifi DDR5 Intel Motherboard
Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6666+(OC) MHz
Lightning Fast Game experience:
PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design:
Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution:
Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT:
16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips and Ambient devices.
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution:
Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5:
Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB:
8-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield:
Better EMI protection and more convenience for installation
Specifications of MSI MPG Z690 Force Wifi DDR5 Intel Motherboard
| Processor |
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
| Chipset | Intel® Z690 Chipset |
| Memory |
4x DDR5 memory slots, support up to 128GB1 Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Expansion Slots |
3x PCIe x16 slots PCI_E1 & PCI_E2 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 |
| Onboard Graphics |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| Storage |
4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)1 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset)1 Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2~5 support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel Core™ processors |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB |
Intel® Z690 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4 USB 2.0 ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WiFi & Bluetooth |
Intel® Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA |
| Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
| LED Feature |
1x EZ LED Control switch 4x EZ Debug LED 1x 2-Digit Debug Code LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |

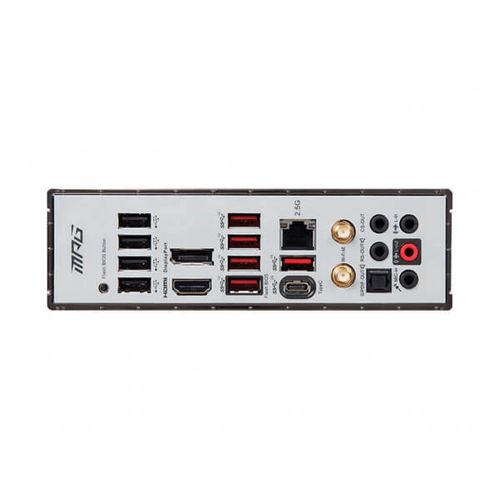

| Back panel ports |
USB 2.0 DisplayPort 2.5G LAN Wi-Fi/Bluetooth Audio Connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
