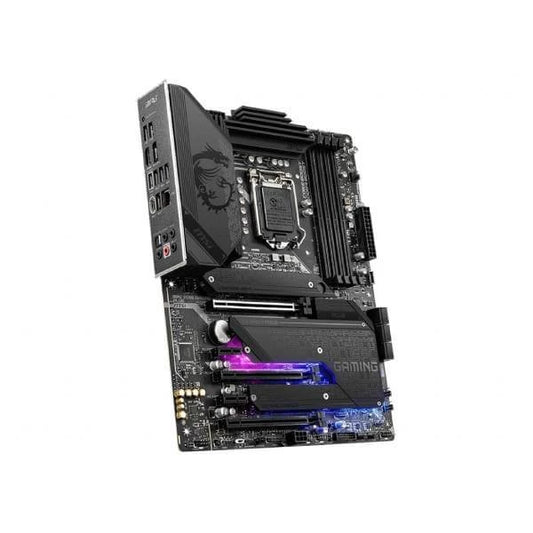

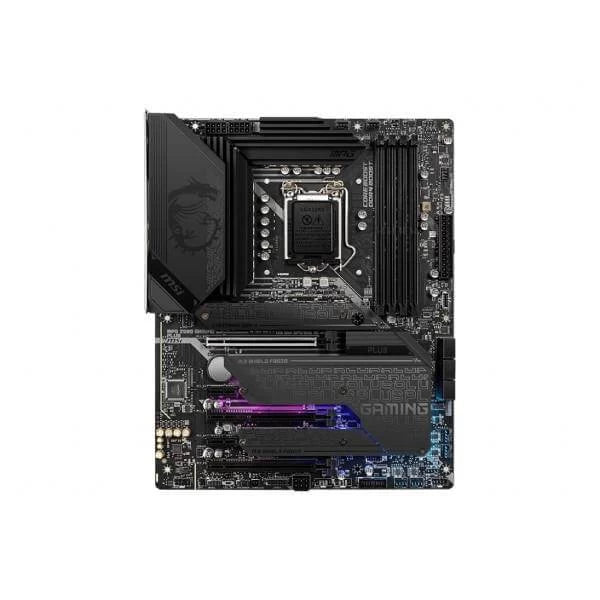

MSI MPG Z590 Gaming Plus DDR4 Intel Motherboard

Feature of MSI MPG Z590 Gaming Plus

MSI MPG Z590 Gaming Plus Motherboard gives the most immersive audio experience as it comes with studio sound quality. 16.8 million colors and 29 effects. RGB and RAINBOW LED strips are both supported by MYSTIC LIGHT EXTENSION. MSI MPG Z590 Gaming Plus Motherboard supports a two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build. Server grade-level material and 6-layer PCB made by 2oz thickened copper. More convenience for installation and better EMI protection with pre-installed I/O shielding.

1. Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
2. Supports DDR4 Memory, up to 5333(OC) MHz
3. Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
4. Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost
5. Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
6. MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
7. 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
8. AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
9. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
10. Pre-installed I/O Shield: Better EMI protection and more convenience for installation

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI MPG Z590 Gaming Plus motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

ROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

14 + 1 +1 DUET RAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 Duet Rail Power System(DRPS). Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work.

CORE BOOST

Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

1-SECOND OVERCLOCKING!

MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

PCB WITH 2OZ THICKENED COPPER

An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR

MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points and supports the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

ULTIMATE MOTHERBOARD PROTECTION

Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

CERTIFIED FOR GAMING

MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable.

WINDOWS 10 CERTIFIED

With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

Specifications of MSI MPG Z590 Gaming Plus
