- MSI MPG B650 Carbon Wifi DDR5 AMD Motherboard
Description
Features Of MSI MPG B650 Carbon Wifi DDR5 AMD Motherboard

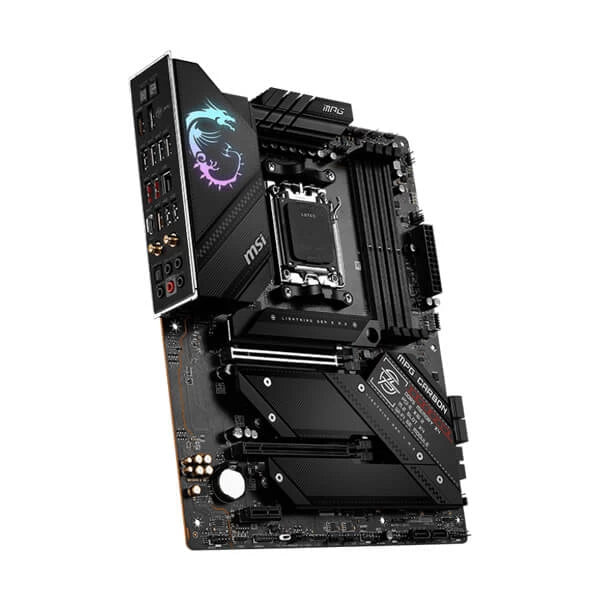

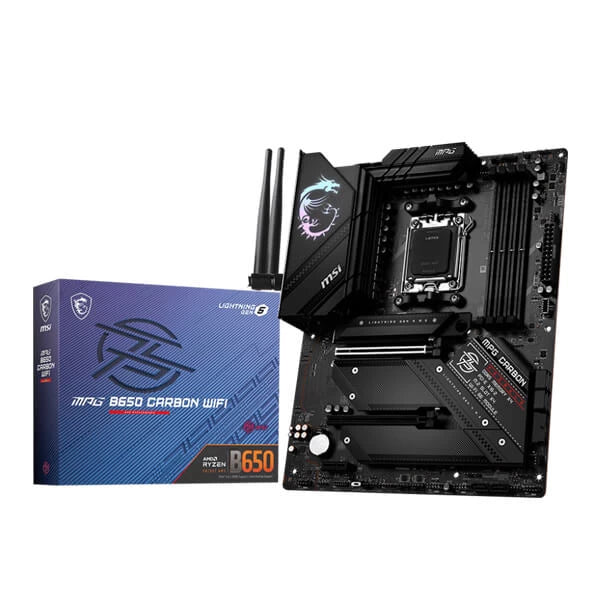

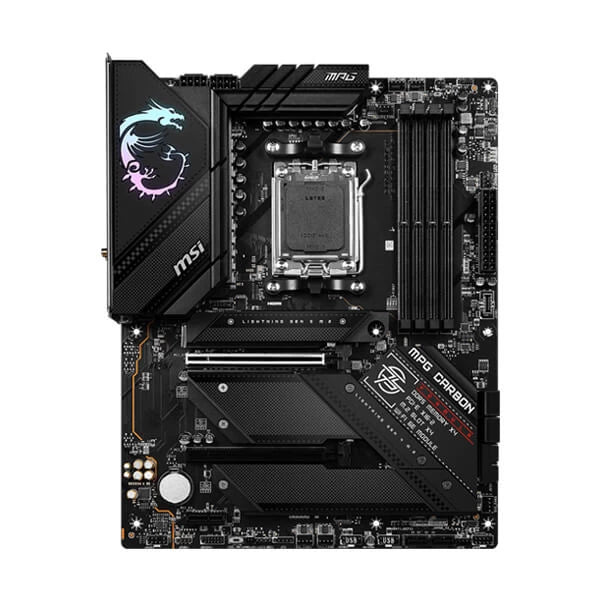

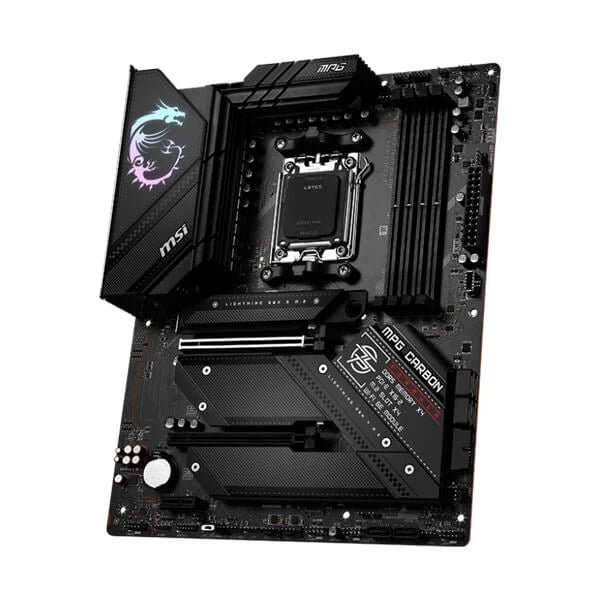

The MSI MPG B650 Carbon Wi-Fi DDR5 Motherboard supports 5th Gen AMD processors and AM5 CPU sockets, features up to 4 x DDR5 memory slots, PCI-E 4.0 and 3.0 compatible expansion slots, 4 x M.2 slots, 6 x SATA ports (6Gb/s), 10 x rear USB ports, 9 x front panel USB headers, Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth 5.2, Realtek 7.1 HD audio codec and an ATX motherboard form factor.
MPG B650 CARBON WIFI employs carbon black colour scheme and RGB lighting to show off different personality and identity. Besides being stylish, it is also powerful.
Core Boost
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
Pre-Installed I/O Shield
The patent-pending design protect your IO ports and makes your installation process easier and safer.
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
Lightning Gen 4
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
Reinforced, Heavy Soldered Connections
MSI PCI Express Steel Armour slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armour shields the point of contact from electromagnetic interference.
Fast and Future-Ready Storage
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
- 1x Lightning Gen 5 M2 128 Gbps
- 3x Lightning Gen 4 M2 64 Gbps
- 6x 6 Gbps
Lightning USB 20G
Using USB 3.2 devices has never been faster! MPG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
Extend Your RGB Experience with Ease
Add more colour if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
2.5G LAN & Wi-Fi 6E
MSI's premium network solution provides incredible data transfer speed for demanding users.
- Wi-Fi 6E
- Bluetooth 5.2
- 2.5G LAN
Easy Overclocking Game On
Get into the game faster with AMD EXPO™ Technology
Ambient Link
Synchronize lighting theme with compatible lighting devices.
A-Rainbow V2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
Gen2 device only supports 7 RGB theme
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- MSI MPG B650 Carbon Wifi DDR5 Memory, up to 6600+(OC) MHz
- Enhanced Power Design: 16+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink with Heat-Pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Pre-installed I/O Shield, Steel Armor
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
- MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications Of MSI MPG B650 Carbon Wifi DDR5 AMD Motherboard
Chipset | AMD B650 |
CPU SUPPORT |
Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
Memory |
4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
Onboard Graphics |
1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
EXPANSION SLOT |
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From CPU) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
Multi-GPU |
4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 6x SATA 6G port |
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
USB |
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Realtek® RTL8125 2.5Gbps LAN |
WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 |
Audio |
Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
Internal I/O |
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
LED FEATURE |
4x EZ Debug LED 1x EZ LED Control switch |

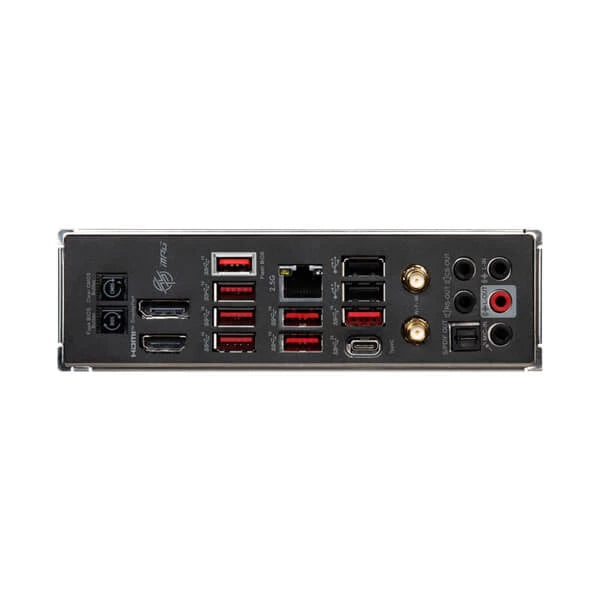

BACK PANEL PORTS |
Clear CMOS / Flash BIOS Display Port 2.5G LAN USB 2.0 (Type-A) Audio Connectors HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension |
ATX 243.84mmx304.8mm |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
