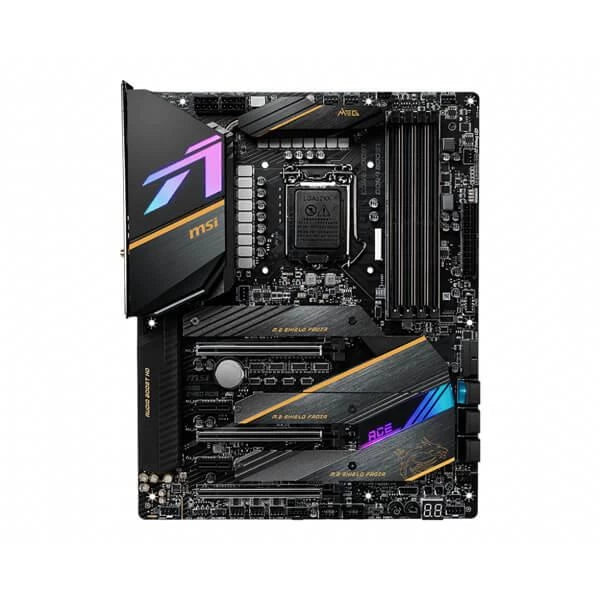

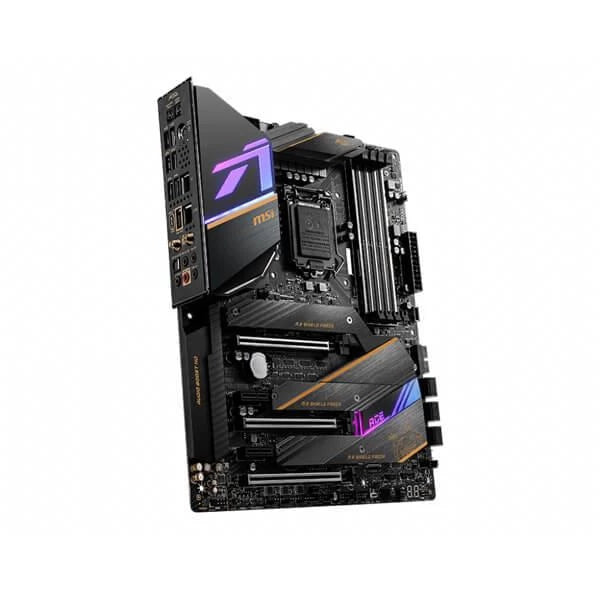

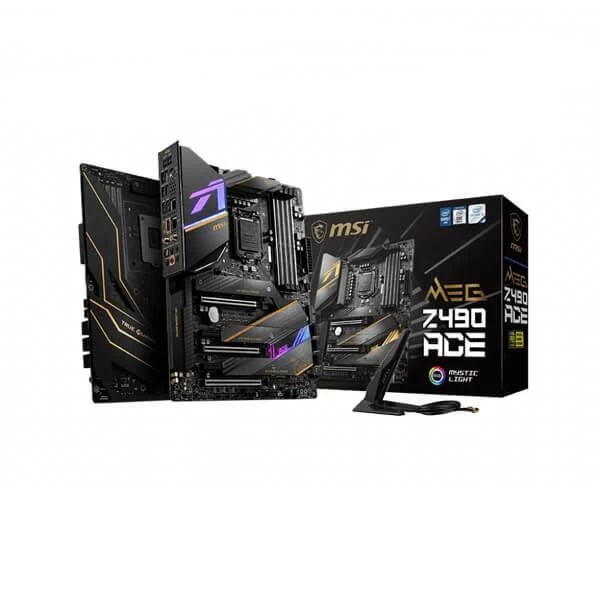

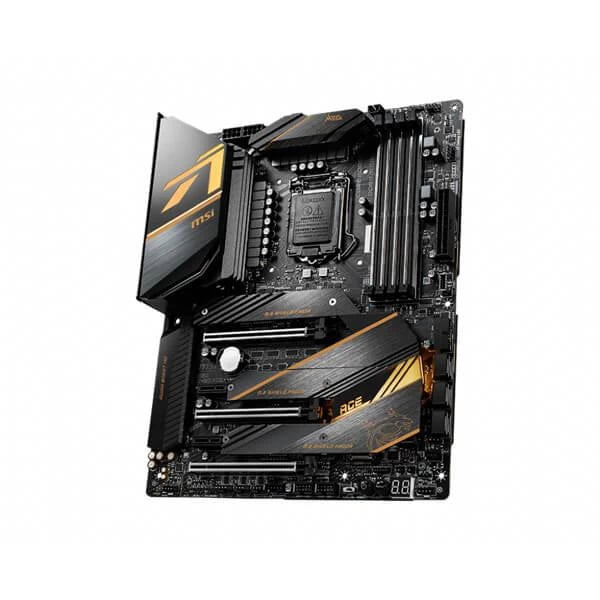

- MSI MEG Z490 ACE DDR4 Intel Motherboard
Description
Feature of MSI MEG Z490 ACE DDR4
Tired of using multiple buttons? Now, Safe Boot, EZ LED control functions, Turbo Fan and Reset computer with the Smart Button. Control everything in one click. Now transfer files quickly with Triple Turbo M.2 which comes with Shield Frozr. The transfer speed can go upto 32 GB/s for the latest SSDs which can make life easier and faster. The Turbo M.2 also delivers PCI-E Gen3 x4 performance. Now giving the most immersive gaming experience with Audio Boost HD. This gives isolated audio with a high-quality audio processor, which comes with Nahimic and ESS DAC.
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, RAINBOW and CORSIAR LED strip.
- Extreme Power Design: INTERSIL digital PWM, 16+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, MOSFET Baseplate and M.2 Shield Frozr ensure the extreme performance with low temp.
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN and latest Wi-Fi 6 solution deliver the best online experience without lag.
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- Triple Turbo M.2 with Shield Frozr: Turbo M.2 delivers PCI-E Gen3 x4 performance with transfer speeds up to 32 Gb/s for the latest SSDs.
- Audio Boost HD: Isolated audio with a high quality audio processor with ESS DAC & Nahimic for the most immersive gaming experience.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
MASTER THE GAME
The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI MEG Z490 ACE DDR4 features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
Specifications of MSI MEG Z490 ACE DDR4
Processor | Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket |
Chipset | Intel® Z490 Chipset |
Memory |
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/2666/2933 MHz1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Expansion Slots |
3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4) 2x PCIe x1 slots (from PCH) |
Multi-GPU |
Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology |
Storage |
Intel® Z490 Chipset 6x SATA 6Gb/s ports 3x M.2 slots (Key M)M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready Supports Intel® Smart Response Technology for Intel Core™ processors |
RAID |
Intel® Z490 Chipset Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices |
USB |
Intel® Z490 Chipset 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia® 3241 chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
Audio |
Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
LAN |
1x Realtek® 8125B 2.5G LAN controller 1x Intel® I219V 1G LAN controller |
WiFi & Bluetooth |
Intel® AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth® 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot |
Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x slow mode jumper 1x power button 1x reset button 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |

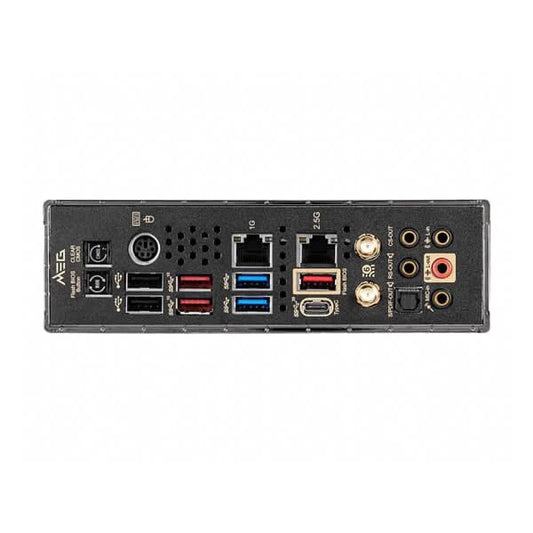

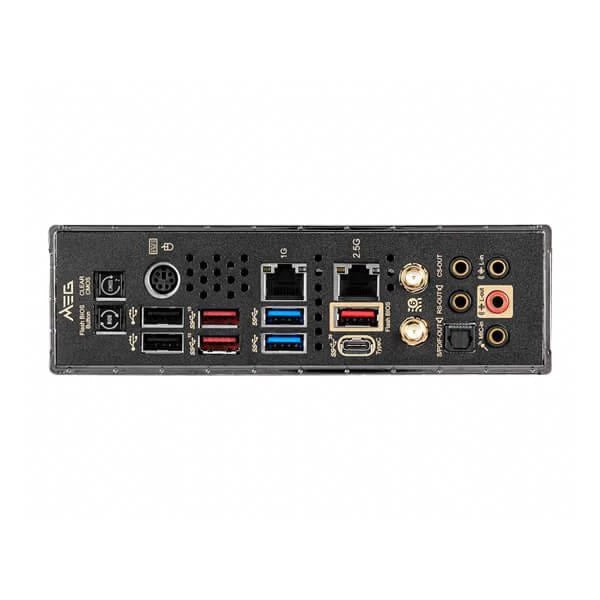

Back panel ports |
Clear CMOS Button PS/2 Keyboard / Mouse Port 1G LAN 2.5G LAN Wi-Fi /Bluetooth Antenna Connectors HD Audio Connectors Flash BIOS Button USB 2.0 Ports USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out |
Dimensions |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor |
Mounting | 9 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
