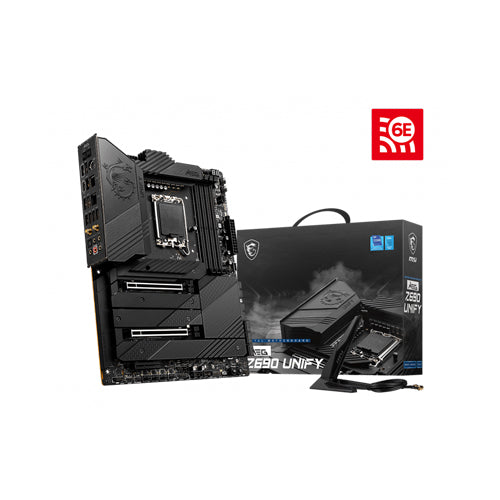

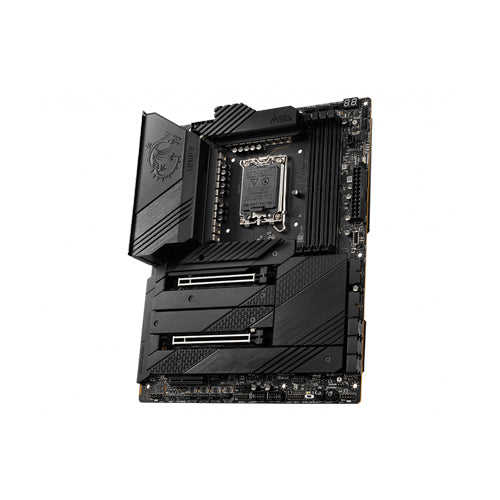

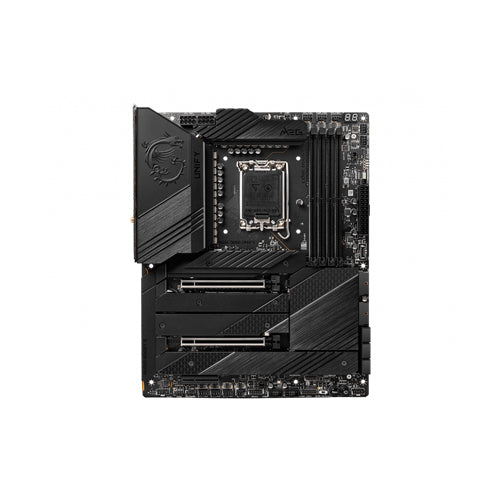

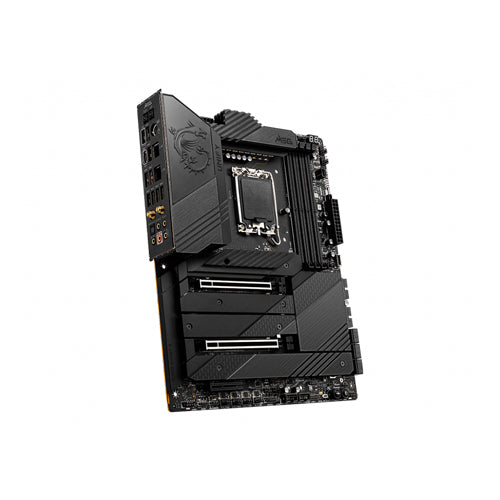

MSI MEG Z690I Unify DDR5 Intel Motherboard

Features of MSI MSI MEG Z690I Unify DDR5 Intel Motherboard

Supports 12th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1700 socket

Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)

Latest DDR5 Memory:

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.

Quintuple M.2 Connectors:

Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

Extreme Power Design:

Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.

Outstanding Cooling Solution:

Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.

Dual 2.5G LAN with latest Wi-Fi 6E:

Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.

Lightning Fast Game experience:

PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2×2 20G.

8 Layer Server Grade PCB with 2oz Thickened Copper:

Provides higher performance and long-lasting system stability without any compromise.

Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

Specifications of MSI MEG Z690I Unify DDR5 Intel Motherboard
