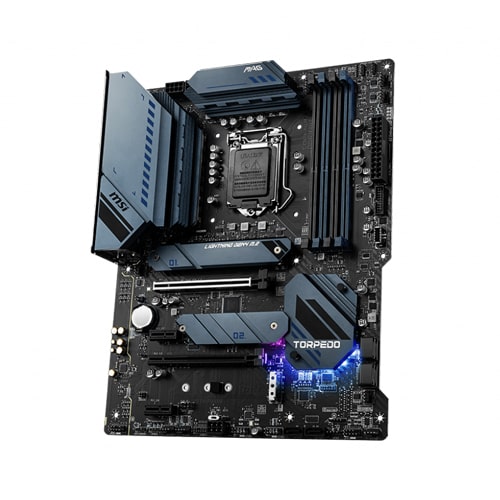

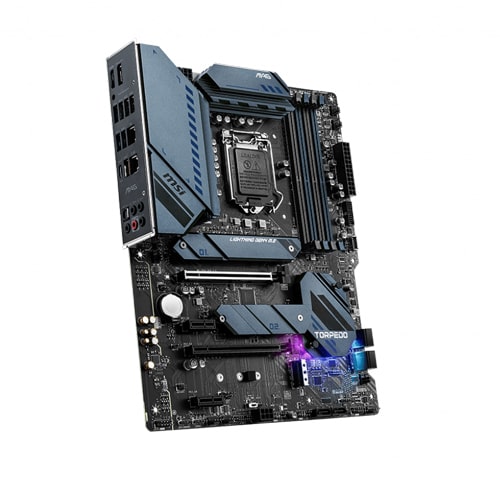

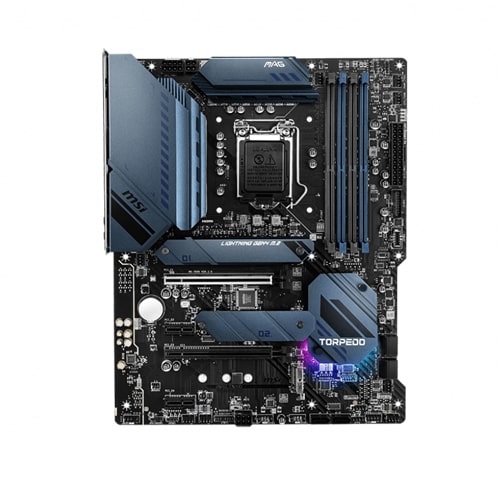

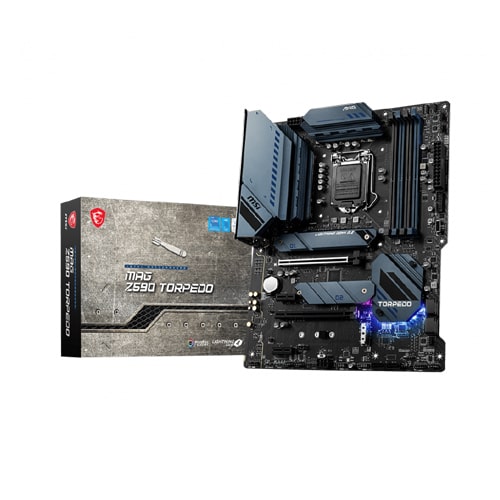

- MSI MAG Z590 Torpedo DDR4 Intel Motherboard
Description
Feature of MSI MAG Z590 Torpedo DDR4
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr is built for a high-performance system and non-stop works
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
- Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI MAG Z590 Torpedo DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
CORE BOOST
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
1-SECOND OVERCLOCKING!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
LOAD-LINE CALIBRATION
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
OVERVOLTAGE PROTECTION
Prevents potential short-circuit damage to the CPU and other critical components.
DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating the perfect conditions for CPU overclocking
DOUBLE POWER CONNECTORS
8+4 pin connectors deliver adequate power even for an overclocked multi-core CPU
PRE-INSTALLED IO SHIELD
Featuring the pre-installed IO shield, makes your installation process easier and safer. The patent-pending design protect your IO ports and also prevent electrostatic discharge damage, makes your motherboard a strong gaming foundation.
MSI MB
EASY TO ARRANGE YOUR CABLES
Not clever at cable arrangement? MSI Atypical PCB design not only the identity of stylish but also makes SATA and USB cable routing easier. Arranges cable neatly even you are not familiar with system build.
EASY TO ARRANGE YOUR CABLES
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slot is secured to the motherboard with extra solder points and supports the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
CERTIFIED FOR GAMING
MSI motherboards has been built and tweaked for hardcore gaming. Feedback from the world’s best esports players and rigorous testing sessions with demanding PC games has resulted in a motherboard that’s both powerful and reliable.
WINDOWS 10 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
WINDOWS 10 CERTIFIED
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
LIGHTNING GEN 4 M.2
Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
XMP
Sound Clearly. Tune Smartly.
The AI-powered noise cancellation is trained through deep neural network (DNN), the model is generated with more than 500 million data, simulate the way human brain works. When a sound is heard, the model automatically recognizes and separate vocal sound from background noises; hence, filtering out all the unwanted Noise.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2×2 20G
Using USB 3.2 devices has never been faster! Featuring the Lighting USB 3.2 Gen2x2 controller, MSI motherboards offer never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The Lightning USB 20G connectors are covered with gold to ensure a better signal and performance.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Specifications of MSI MAG Z590 Torpedo DDR4
PROCESSOR |
Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
Processor socket LGA1200 |
CHIPSET | Intel® Z590 Chipset |
MEMORY |
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory. |
EXPANSION SLOT |
2x PCIe x16 slots1x PCIe 3.0 x16 slot (from CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPUPCI_E3 (From Z590 chipset)Support up to PCIe 3.0 x42x PCIe 3.0 x1 slots (From Z590 chipset) |
MULTI-GPU | Supports 2-Way AMD® CrossFire™ Technology |
ONBOARD GRAPHICS |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2 |
STORAGE |
6x SATA 6Gb/s ports (From Z590 chipset)
3x M.2 slots (Key M)M2_1 slot (From CPU)Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 & M2_3 slot (From Z590 chipset)Supports up to PCIe 3.0 x4 Supports SATA up to 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory ReadySupports Intel® Smart Response Technology for Intel Core™ processorsSATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from the MSI website. |
RAID |
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID Specifications 0 and RAID 1 for M.2 PCIe storage devices |
USB |
Intel® Z590 Chipset
1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) |
AUDIO |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN |
1x Intel® I225-V 2.5Gbps LAN controller 1x Intel® I219-V 1Gbps LAN controller |
INTERNAL CONNECTORS |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
LED FEATURE |
1x EZ LED Control switch 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |

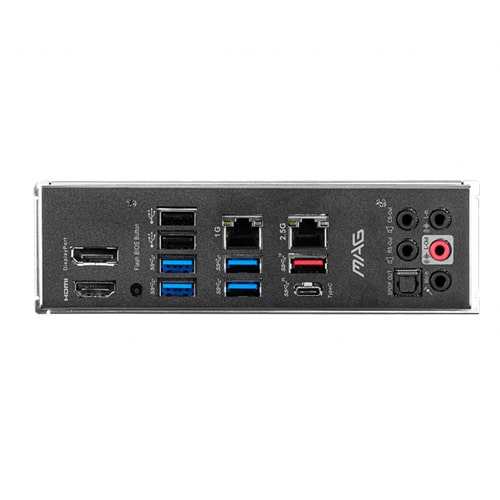

BACK PANEL PORTS |
DisplayPort USB 2.0 Gigabit LAN Port 2.5G LAN Port HD Audio Connectors HDMI Flash BIOS Button USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
DIMENSIONS |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
Warranty | 3 Years |
Note |
*** Features, Price, Specifications are subject to change without notice
|
