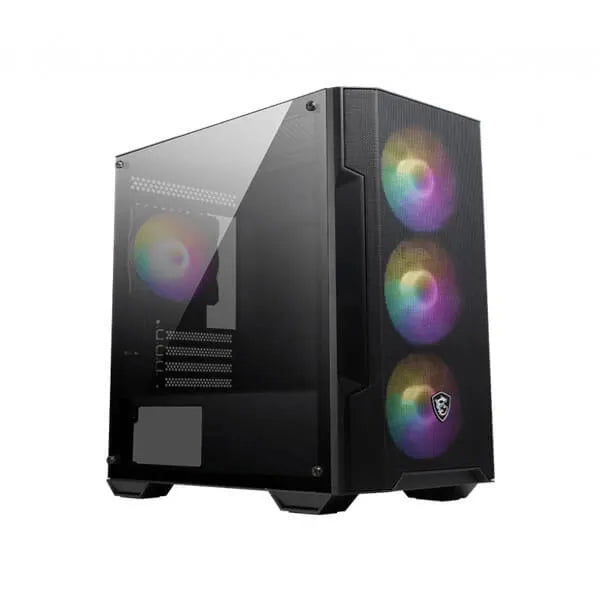

- MSI MAG Forge M100R ARGB ITX Mini Tower Cabinet (Black)
Description
Features of MSI MAG Forge M100R ARGB
- Can install up to 6x system fans, providing ventilation and stable performance to the whole system.
- Built-in ARGB fans with striking lighting and vivid lighting effects.
- Tempered Glass Side Pane displaying RGB lighting effects.
- The magnetic filter on the top vents being easily remove for cleaning.
- Use the fan cable to create more possibilities for adding more fans to your system.
- Click through the profile at ease and choose a favourite.
- Built-in ARGB fans with striking lighting and vivid lighting effects.
- Through the LED Switch button can intuitively control & switch 9 lighting effects.
MESH CERTIFIED MAKES IT WORK
The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The MSI MAG Forge M100R ARGB micro-atx chassis provide small footprint but big performance.
HEAT DISSIPATION
You don't need to worry about system cooling with the help of the gaming cases.
OPTIMIZED AIRFLOW
MSI Cabinet MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
STORAGE YOU NEED
Configure your own storage layout and install up to 3x2.5"+1x 3.5" or 2x 2.5" + 2x 3.5" storages.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
MAGNETIC DUST FILTER
A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.
TEMPERED GLASS WINDOW
The 3mm tempered glass swinging window offers the best durability and system accessibility.
ARGB SHOWROOM
Create your own ARGB battle station with the MAG FORGE M100R, fully supported by MSI Mystic Light.
INSTA-LIGHT LOOP BUTTON
Quickly control the fan and front LED strip's lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favourite.
Best cpu case with fan at affordable prices at Elitehubs!
Specifications of MSI MAG Forge M100R ARGB
| Product Name | MAG FORGE M100R |
| Form Factor | Micro ATX Tower |
| Motherboard Form Factor Support | Micro-ATX / Mini-ITX |
| I/O Ports |
2x USB 2.0 Type-A 1x USB 3.2 Gen 1 Type-A 1x Audio 1x Mic |
| Drive Mount Support |
2x 2.5" 1x 2.5" / 3.5" 1x 3.5" |
| Expansion Slots | 4 |
| Maximum GPU Length | 300 mm / 11.81 inches |
| Maximum CPU Cooler Height | 160 mm / 6.3 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 300 mm / 11.81 inches (without 3.5" HDD tray installed) |
| Fan Size Support |
Front: 3 x 120 mm Top: 2 x 120 mm Rear:1 x 120 mm |
| Pre-installed Fan Size |
Front: 3 x 120mm Rear: 1 x 120mm |
| Pre-installed Fan Type |
Front: 3 x ARGB Fan Rear: 1 x ARGB Fan |
| Radiator Size Support |
Front: 120 / 240 mm Top: 120 / 240 mm Rear: 120 mm |
| Dimensions (DxWxH) | 388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches |
| Net Weight | 4.14 kg / 9.13 lbs |
| Gross Weight | 5.03 kg / 11.09 lbs |
| Warranty | 1 Year |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
