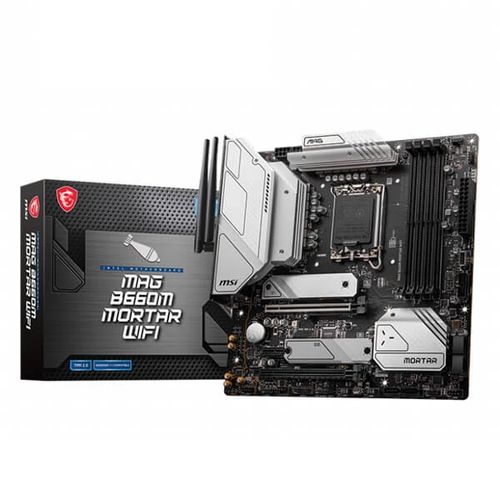

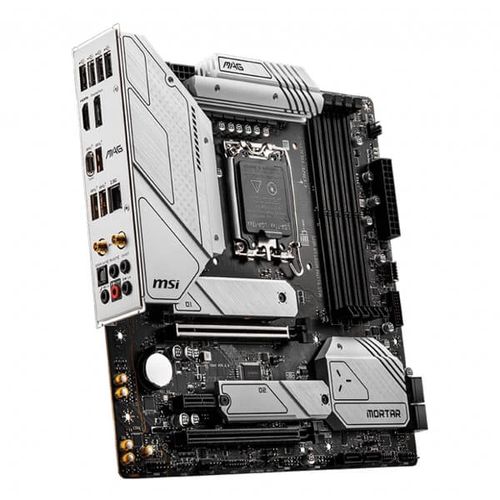

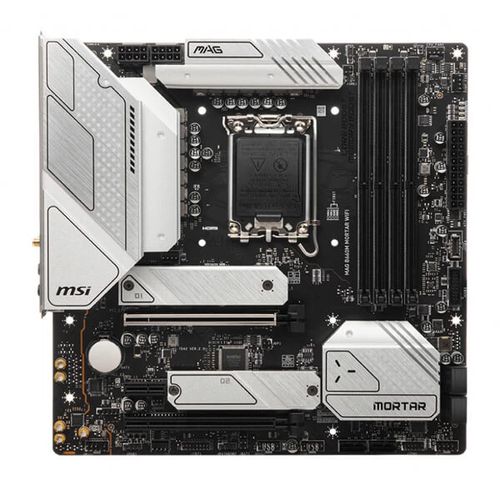

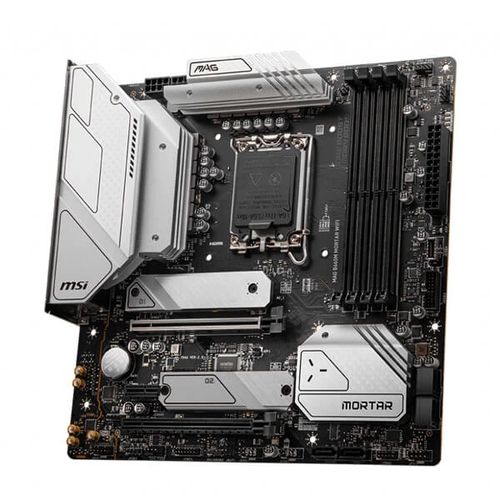

- MSI MAG B660M Mortar Wifi DDR5 Intel Motherboard
Description
Feature of MSI MAG B660M Mortar WiFi DDR5
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6200+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Power Design 12 + 1 + 1 Duet Rail Power System
Unleash and sustain maximum performance with MSI MAG B660M Mortar Wifi motherboard VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, this motherboard is prepared to sustain heavy gaming loads. Additionally, load line calibration makes sure your CPU voltage remains stable under any load.
Core Boost & Game Boost
Core Boost technology combines MSI’s premium layout and digital power design, which allows for faster and undistorted current delivery to the CPU at pin-point precision. This creates the perfect conditions for multi-core CPU performance under high loads. Overvoltage protection prevents potential short-circuit damage to the CPU and other critical components. Additionally, there are two 8-pin connectors that deliver adequate power to even an overclocked multi-core CPU. Quickly overclock your CPU with MSI MAG B660M MORTAR WIFI DDR5 Game boost, enabling one-second overclocking and giving you the performance boost you need to get extra FPS.
Cooling Features Extended Heatsink Design
With multi-core processors, thermal and power design are more important to make sure the temperature keeps lower. MSI MAG B660M MORTAR WIFI DDR5’s extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPUs run at full speed.
Total Fan Control
MSI MAG B660M MORTAR WIFI DDR5 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard headers, which will all adjust the fan speeds automatically.
M.2 Shield Frozr
The fastest SSDs can start to slow down when getting too hot. Part of MSI MAG B660M MORTAR WIFI DDR5 motherboards heatsink design, M.2 SHIELD FROZR is a M.2 thermal heatsink designed to make sure that M.2 SSDs maintain maximum performance, even under heavy loads.
Frozr AI Cooling
Frozr AI Cooling detects CPU & GPU temperatures and automatically adjusts fan settings to either performance mode, silent mode, or manual mode, thanks to the MSI MAG B660M MORTAR WIFI DDR5 AI Engine. Use the MSI AI Engine to control and create your own fan profiles
Optimized for Water Cooling
A dedicated water pump PIN header supports up to 3 amps, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation of any liquid cooling setups.
Protective Features PCB Design
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
Steel Armor
MSI MAG B660M MORTAR WIFI DDR5 PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in gaming counts, Steel Armor shields the point of contact from electromagnetic interference, protecting your components.
Double ESD Protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
DIY Friendly Features Pre-Installed I/O Shield
The pre-installed I/O shielding helps make your installation process safer and easier. The patent-pending design from MSI protects your I/O ports and also prevents electrostatic discharge damage, making your motherboard a strong foundation for competitive gaming.
Keep-Out Zone and Avoid Collision Paint
MSI MAG B660M MORTAR WIFI DDR5 motherboards ensure the case-standoff keep-out zones are clean and visible, preventing any component contact or damage to the motherboard. Protective paint is printed around each screw hole to prevent parts from being scratched when installed onto the motherboard.
EZ M.2 Clip
The EZ M.2 clip assists you in installing an M.2 SSD quickly without having to turn any screws.
Performance Features Gen 4 M.2
Supporting 12th Gen Intel processors, MSI MAG B660M MORTAR WIFI DDR5 motherboards feature Gen 4 M.2 with a transfer speed up to 64 Gb/s.
Gen 4 PCI-E
Gen 4 PCI-E provides 64 Gb/s of transfer bandwidth and maintains backward and forward compatibility with older and newer specifications. Optimized by a steel armor design and server grade PCB, users can enjoy next-gen devices without any compromise.
DDR5
Get a huge boost in performance with the latest DDR5 memory. Combined with dedicated SMT (Surface Mount Technology) welding process and MSI Memory Boost technology, the MSI MAG B660M MORTAR WIFI DDR5 is ready to deliver DDR5 memory performance. The advanced SMT welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. The XMP (Extreme Memory Profile) in MSI BIOS is tested and certified by the MSI OC LAB. XMP is simple to enable within the BIOS to easily overclock your RAM speed and stability.
Memory Boost
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. MSI’s memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations, and even improve overclocking.
Intel Optane Memory
MSI MAG B660M MORTAR WIFI DDR5 Users can now enjoy the performance of an SSD on their HDD by coupling it with an Intel Optane Memory device. Optane technology provides a combination of high throughput, low latency, high quality of service, and high endurance.
BIOS & Software Features MSI Center
The MSI Center unifies a suite of MSI software utilities into a single centralized application.
Click BIOS 5
Click BIOS 5 allows you to quickly access the BIOS with individual tabs for XMP profiles, volume management devices, M-flash, a hardware monitor, and memory overclocking tests.
Resizable BAR
Resizable BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
Find with Tile
Intel’s Wi-Fi solution integrated with Tile’s tracking technology will help you locate your PC device in no time.
Connectivity Features Networking
2.5 Gb/s LAN provides high data transfer speeds that are twice as fast as general Gigabit LAN. Wi-Fi 6E adopts the latest OFDMA and two-way MU-MIMO technologies and can provide up to four times network capacity in a high-signal-density environment. Compared to the Wi-Fi 5 standard, which can only send data packets to one device at a time on each channel, Wi-Fi 6 is able to combine the packet, separate it to several devices, and allow signals from the different devices to be bundled together. MSI LAN Manager software automatically classifies and prioritizes the latency-sensitive applications for online games, giving you a strong online gaming experience with low latency.
Audio
Enjoy high definition with a dedicated high-definition audio processor, and the motherboard’s construction with high quality audio capacitors deliver exceptional acoustics and realism for studio level headphones. Keep your sound ideal by transmitting your audio with a pure digital signal thanks to the S/PDIF audio jack. Audio components and circuits have been laid on a reserved section on this motherboard and electrically isolated, allowing the components to act as a dedicated sound card. Additionally, separated layers in the PCB ensures high-fidelity sound quality for both left and right audio channels.
USB 3.2 Gen 2×2
MSI MAG B660M MORTAR WIFI DDR5 series motherboards offer a wide variety of options to connect and boost your USB devices up to 20 Gb/s when connecting the rear USB Type-C port.
Front USB Type-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Build up a system with an MSI PC case to have the most convenient experience.
Specifications of MSI MAG B660M Mortar WiFi DDR5
PROCESSOR |
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700 |
CHIPSET | Intel® B660 Chipset |
MEMORY |
4x DDR5 memory slots, support up to 128GB Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency:1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHzSupports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
EXPANSION SLOT |
2x PCIe x16 slotsPCI_E1 slot (From CPU)Supports PCIe 4.0 x16
PCI_E3 slot (From B660 Chipset)Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
MULTI-GPU | Supports AMD® CrossFire™ Technology |
ONBOARD GRAPHICS |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
STORAGE |
4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M)M2_1 slot (From CPU)Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
AUDIO |
Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1x Realtek® 8125BG 2.5Gbps LAN controller |
WIRELESS LAN & BLUETOOTH® |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA |
INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
LED FEATURE |
4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors |

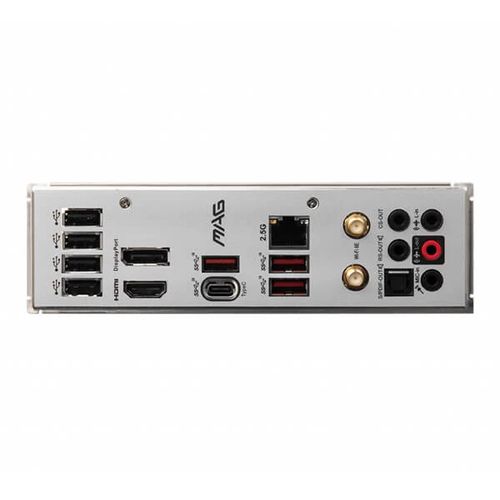

BACK PANEL PORTS |
USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
DIMENSIONS |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
