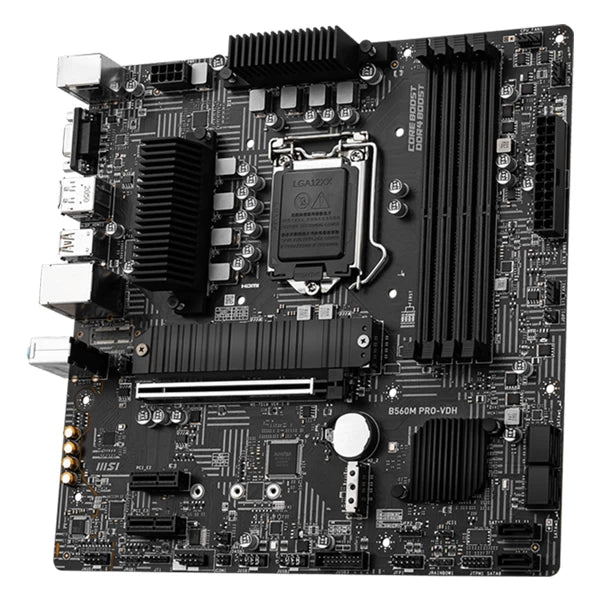

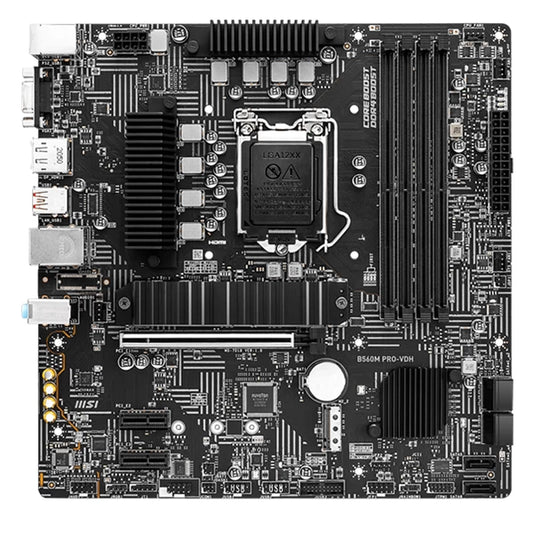

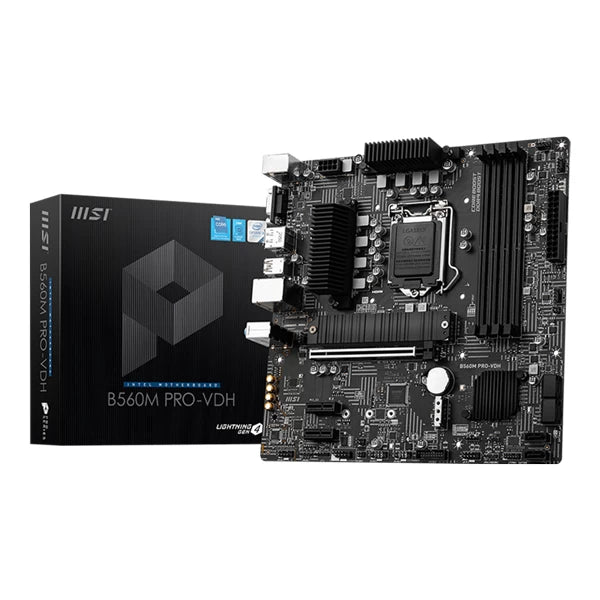

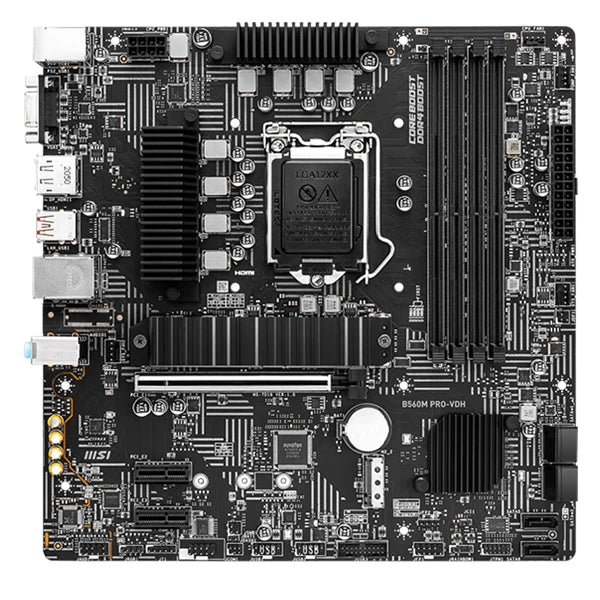

- MSI B560M Pro-VDH DDR4 Intel Motherboard
Description
Feature of MSI B560M Pro-VDH DDR4
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5066(OC) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
PRO B560 Series
MSI B560M Pro-VDH DDR4 series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, Pro series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 Shield Frozr
MSI B560M PRO VDH M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance, Also detecting CPU & GPU temperatures and automatically adjusting fan.
Fully Fan Control
MSI B560M PRO VDH Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Lightning Gen 4 M.2
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility.
High Bandwidth
MSI B560M PRO VDH is equipped with 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
XMP Profile
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
Audio Boost
From HD-A to USB Interface, twice the DAC format from 32-bit/192kHz to 32-bit/384kHz, deliver the highest sound quality. Keep your sound perfect by transmit your audio with pure digital signal.
Core Boost
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Specifications of MSI B560M Pro-VDH DDR4
CPU (MAX SUPPORT) | i9 |
SOCKET | 1200 |
CHIPSET | Intel® B560 Chipset |
DDR4 MEMORY |
5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR)
/ 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 4 |
MAX MEMORY (GB) | 128 |
PCI-E X16 | 1 |
PCI-E GEN | Gen4 |
PCI-E X1 | 2 |
SATAIII | 6 |
M.2 SLOT | 2 |
TPM (HEADER) | 1 |
LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |

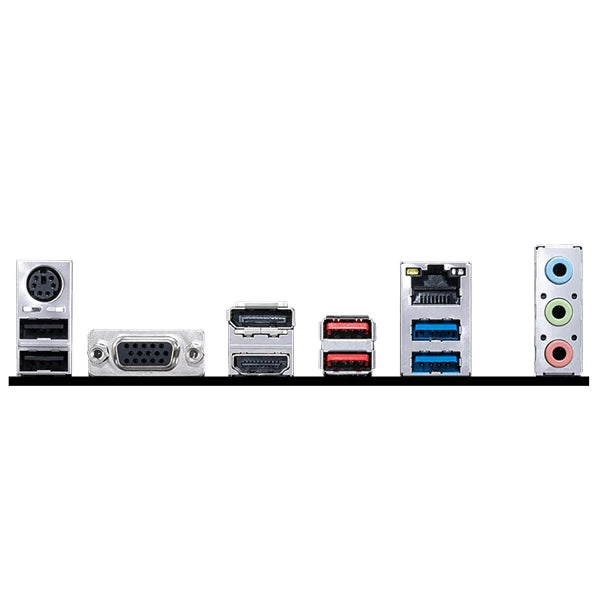

USB 3.2 PORTS (REAR) | 2(Gen 2, Type A), 2(Gen 1, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 2 |
SERIAL PORTS(FRONT) | 1 |
AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
DISPLAYPORT | 1 |
VGA | 1 |
HDMI | 1 |
DIRECTX | 12 |
FORM FACTOR | MATX |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
