Description

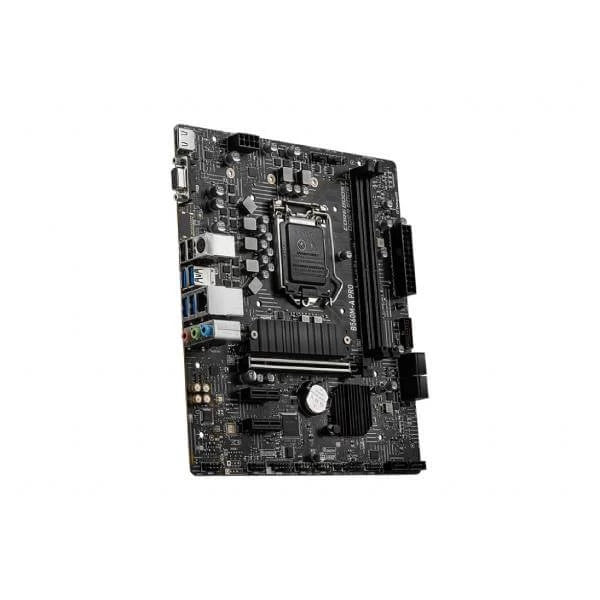

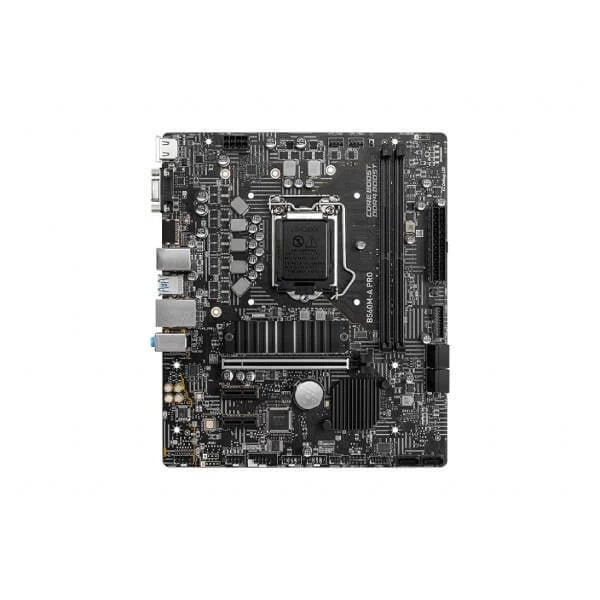

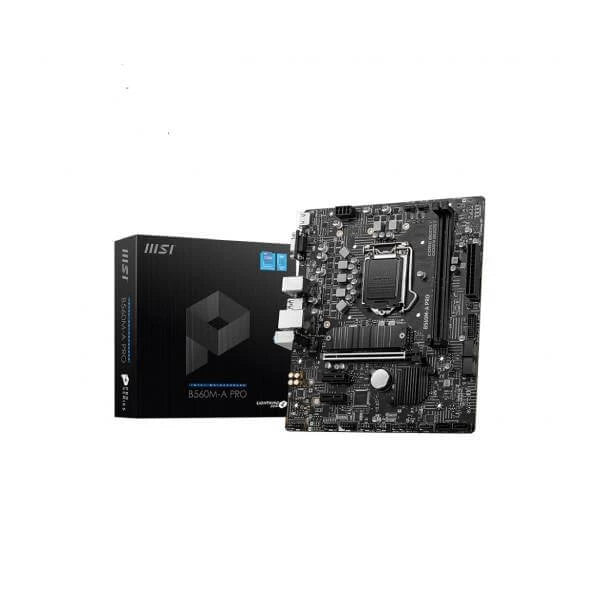

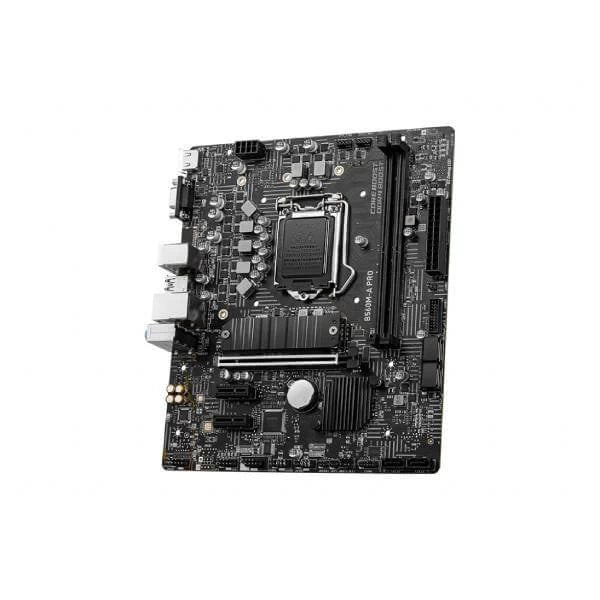

MSI B560M-A Pro Motherboard
Features :
MSI MAG B560M-A PRO is very reliable as it has gone through over 7000+ validation hours of industrial-level tests.No need to worry about lag anymore as the MSI MAG B560M-A PRO comes with onboard 2.5G LAN plus Gigabit LAN. Also, the latest Wi-Fi 6 solution helps to do lag-free gaming. Helps for smooth professional and multimedia use.MSI MAG B560M-A PRO gives the most immersive audio experience as it comes with studio sound quality.
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
Specifications :
| CPU |
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200 |
| CHIPSET | Intel® B560 chipset |
| MEMORY |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| EXPANSION SLOT |
1x PCIe x16 slot (From CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chpiset) |
| ONBOARD GRAPHICS |
1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
| AUDIO |
Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
| STORAGE |
6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors |
| USB |
Intel® B560 Chipset 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) |
| FORM FACTOR |
mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) |
| BIOS FEATURES |
1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
| INTERNAL CONNECTORS |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector |

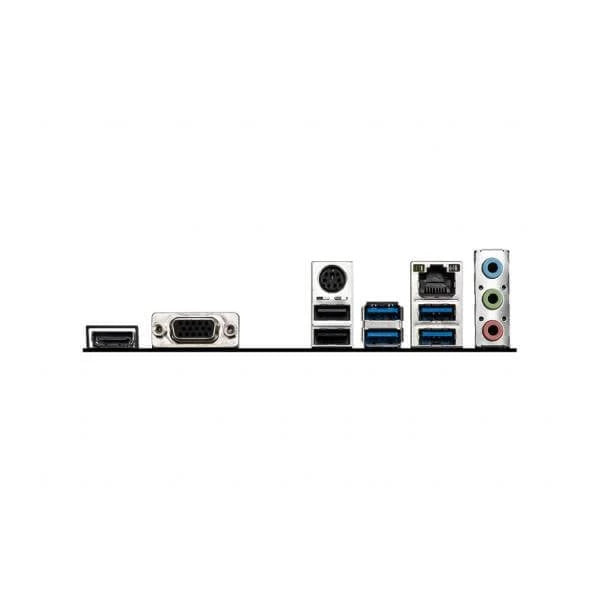

| BACK PANEL CONNECTORS |
HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A |
| Warranty | 3 Years |
