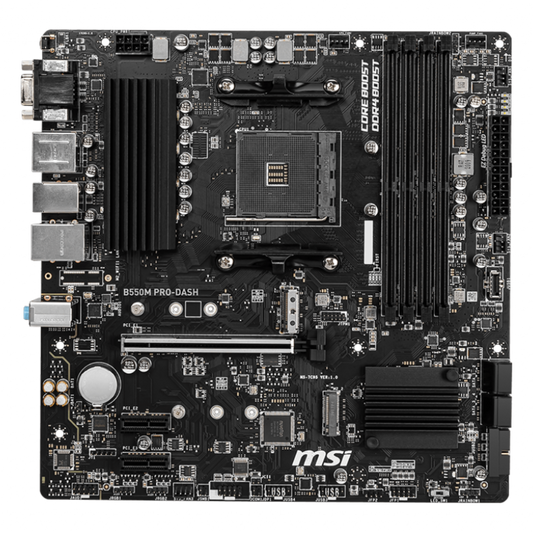

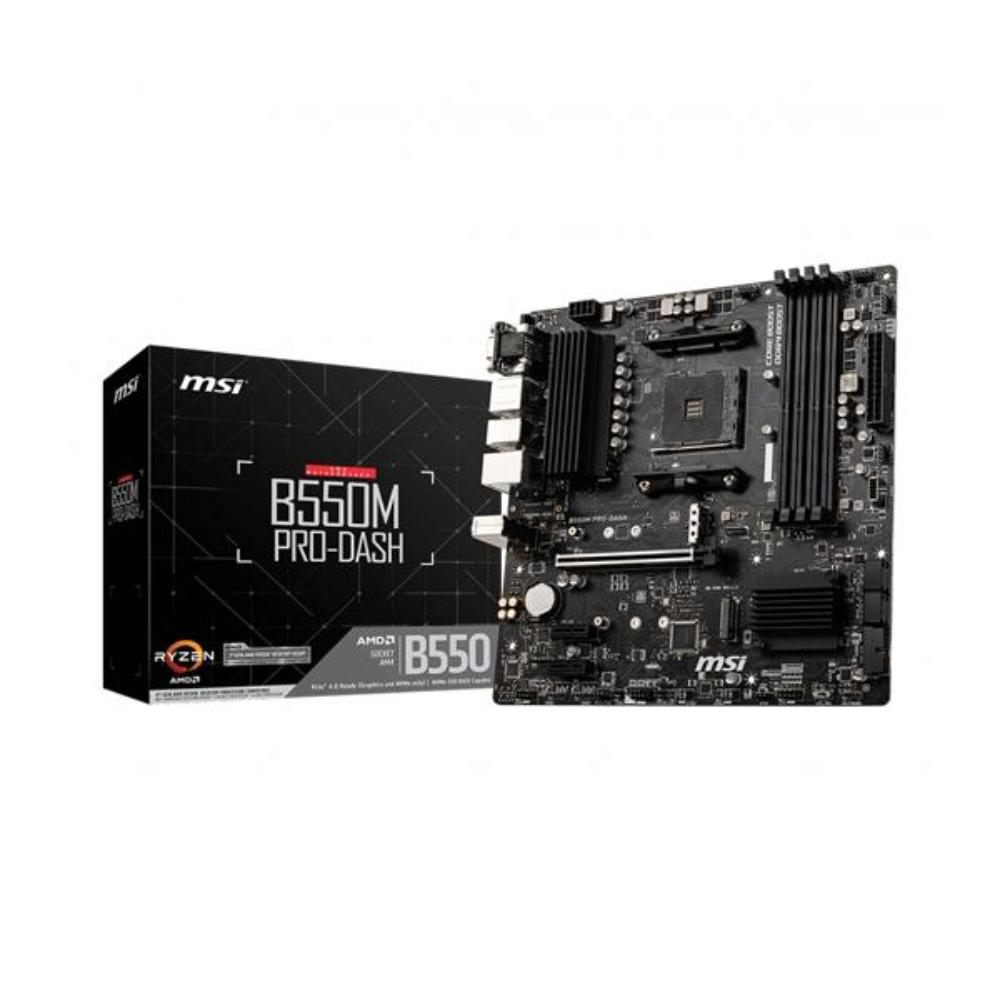

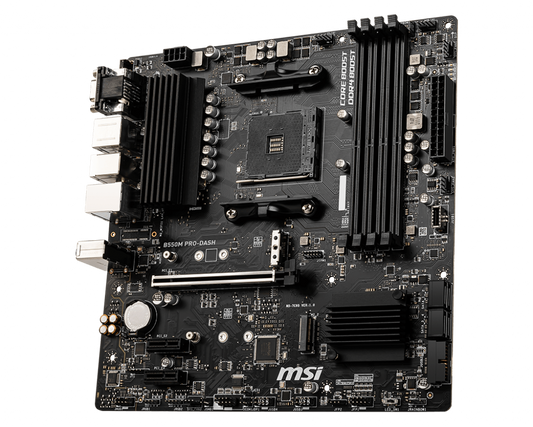

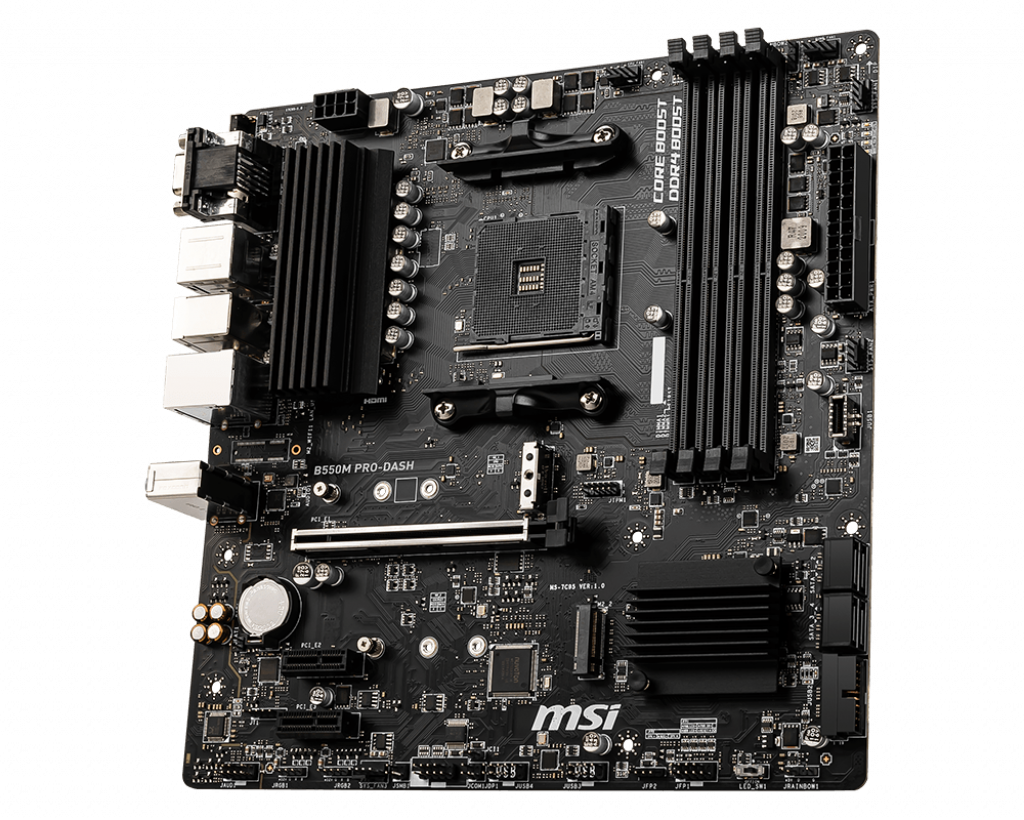

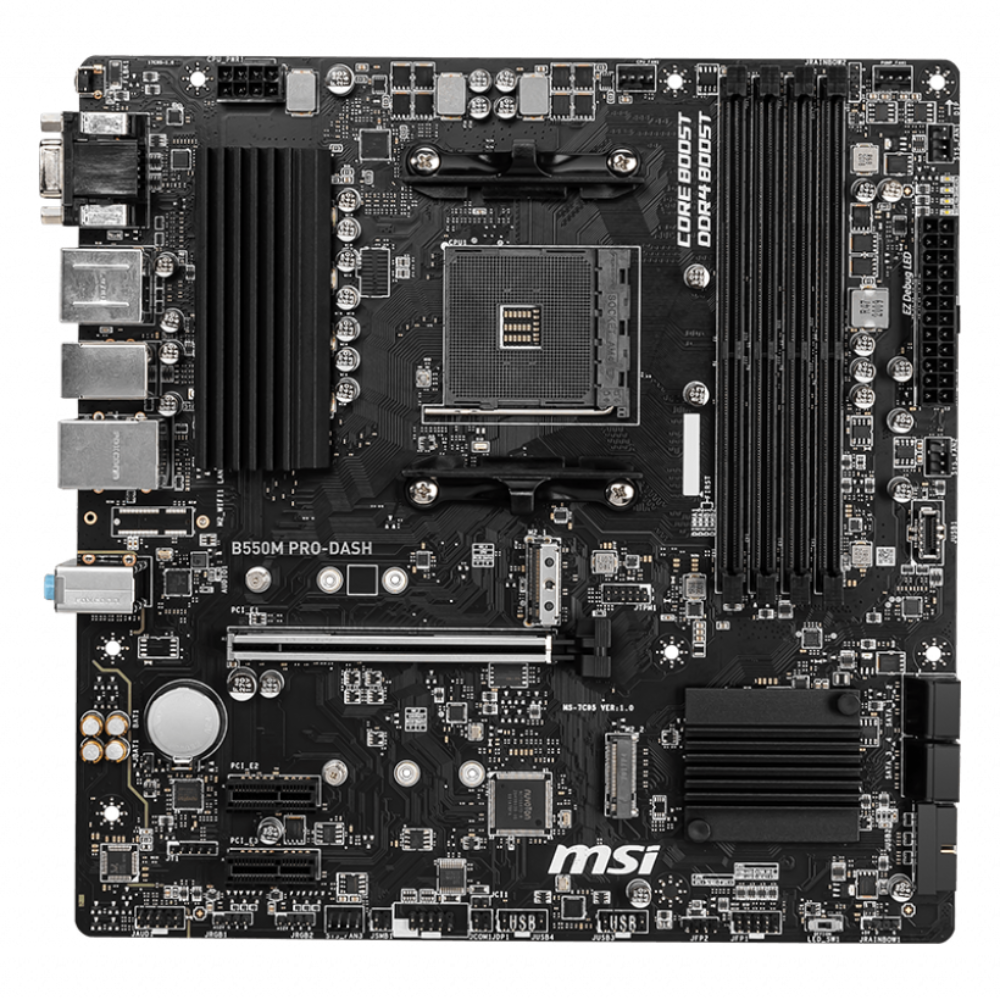

- MSI B550M Pro DDR4 AMD Motherboard
Description
Feature of MSI B550M Pro DDR4
MSI B550M Pro DDR4 comes with Digital PWM IC, DDR4 Boost, 2oz Thickened Copper PCB and Core Boost for stable performance. MSI B550M PRO-DASH is very reliable as it has gone through over 7000+ validation hours of industrial-level tests. Now comes the Dragon Center. Newly designed software for all MSI tools with a very user-friendly interface.
- Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400(OC) MHz
- DASH LAN: supports DMTF’s client management standard for secure out-of-band and remote management.
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Stablility: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
- Reliability: over 7000+ validation hours industrial level test
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
DEDICATED HIGH DEFINITION AUDIO PROCESSOR
Make sure you enjoy the purest sound quality in both stereo and surround sound.
HIGH QUALITY AUDIO CAPACITORS
A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured.
HD AUDIO CONNECTORS
Keep you sound perfect by transmit your aduio with pure digital signal.
Specifications of MSI B550M Pro DDR4
CPU | Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update |
Chipset | AMD B550 Chipset |
Memory |
4x DDR4 memory slots, support up to 128GB 1Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZDual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
Expansion Slots |
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots |
Onboard Graphics |
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 Maximum shared memory of 16 GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Storage |
AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M)M2_1 slot (from AMD processor)Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (from AMD B550 chipset)Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devicesThe supported specification depends on installed processor. |
RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB |
AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
Audio |
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
LAN | 1x Realtek® RTL8111EPV 1Gbps LAN controller |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x TPM module connector 1x Clear CMOS jumper |
Back panel ports |
VGA USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Flash BIOS Button DisplayPort HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A HD Audio Connectors |
Dimensions |
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
MOUNTING | 8 mounting holes |
Warranty | 3 Year |
Note | ***Features, Price and Specifications are subject to change without notice. |
