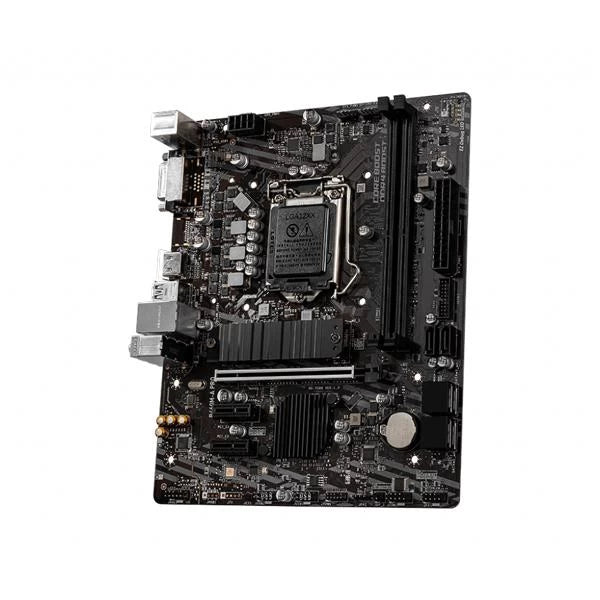

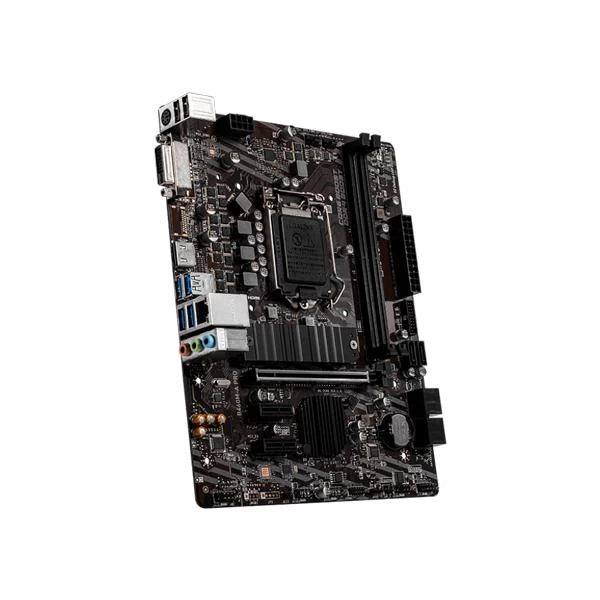

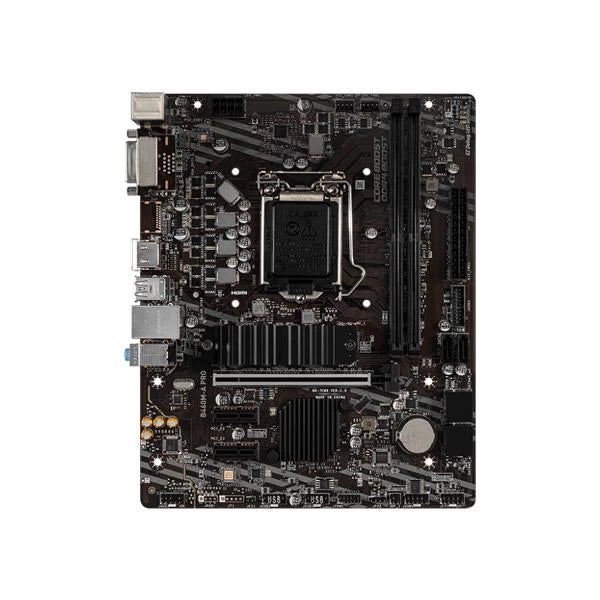

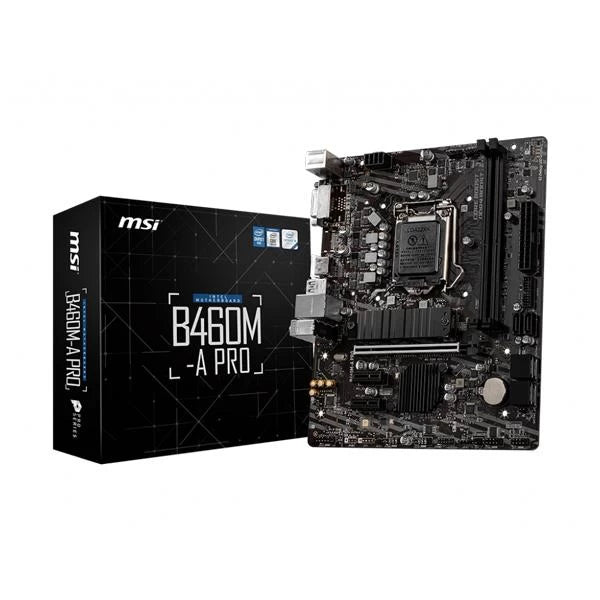

- MSI B460M-A Pro DDR4 Intel Motherboard
Description
Feature of MSI B460M-A Pro DDR4
One DVD port supports a maximum resolution of 1920x1200. Has a dual channel of memory architecture, alluring isn’t it?. Supports Extreme Memory Profile that is XMP memory modules. Supports HD Graphics with the assistance of Integrated Graphics Processor-Intel. Reward your ears with the best quality of sounds, Not only this but it even has an immersive sound quality of Realtek ALC892 Codec, high and premium audio. The MSI B460M-A PRO motherboard has 128 MB flash. The MSI B460M-A PRO motherboard even has a 4 pin CPU fan connector as well as a 4 pin system fan connector. It has a warranty of three years so just relax and concentrate on your play!
- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI B460M-A Pro series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
Specifications of MSI B460M-A Pro DDR4
CPU | Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket |
Chipset | Intel® B460 Chipset |
Memory |
2x DDR4 memory slots, support up to 64GB Intel® Core™ i7/i9Support DDR4-2933 Memory (Max.)Intel® Core™ i5 (Below)Supports DDR4-2666 Memory (Max.)Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Expansion Slot |
1x PCIe 3.0 x16 slot (from CPU) 2x PCIe x1 slots (from PCH) |
Onboard Graphics |
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
Storage |
Intel® B460 Chipset 6x SATA 6Gb/s ports 1x M.2 slot (Key M)Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1 Intel® Optane™ Memory Ready2 Supports Intel® Smart Response Technology for Intel Core™ processor |
RAID |
Intel® B460 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
USB |
Intel® B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) |
Audio |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
LAN | 1x Realtek® 8111H Gigabit LAN controller |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED |

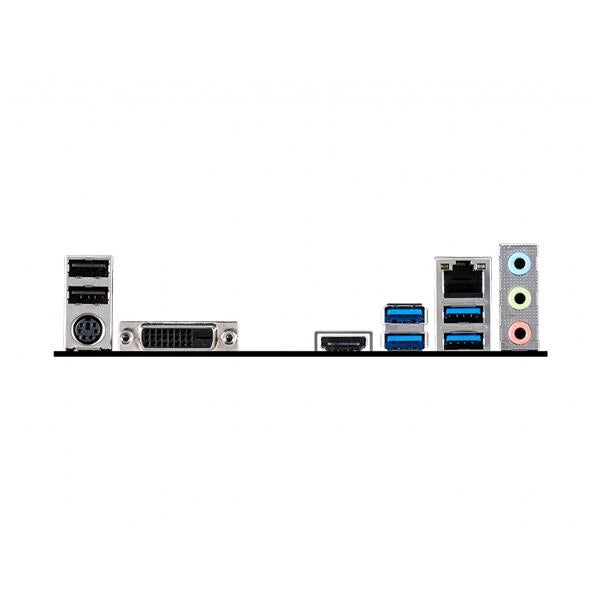

Back panel ports |
USB 2.0 Type-A ports LAN port PS/2 keyboard/ mouse combo port DVI-D port HDMI port USB 3.2 Gen1 5Gbps Type-A ports USB 3.2 Gen1 5Gbps Type-A ports Audio jacks |
Form Factor |
mATX Form Factor 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm) |
BIOS Features |
1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
