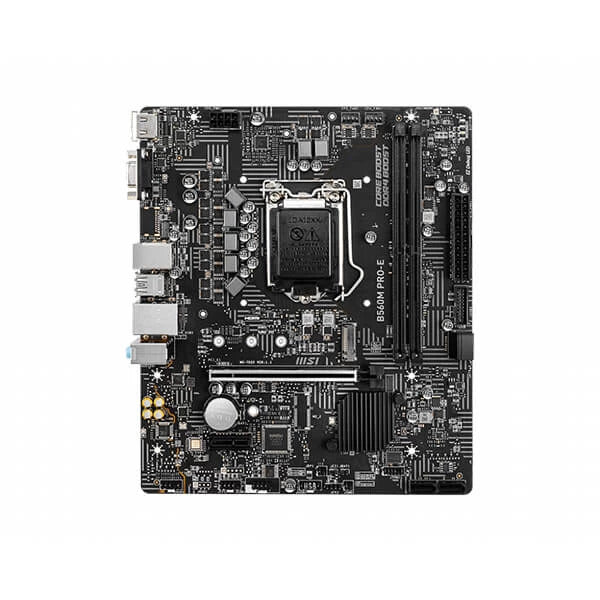

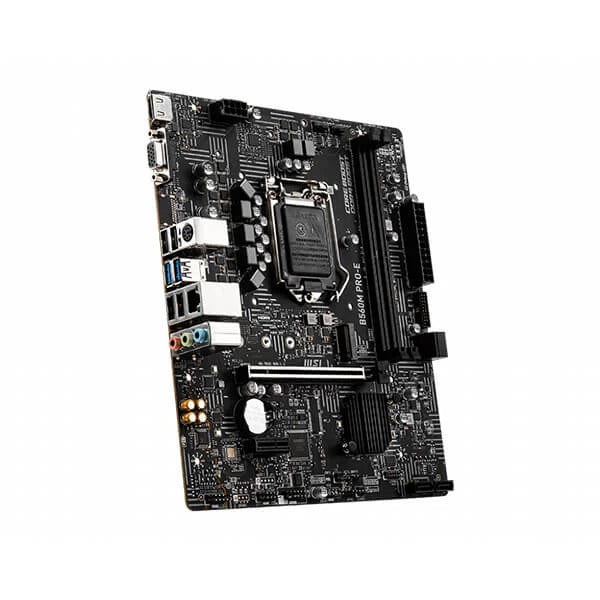

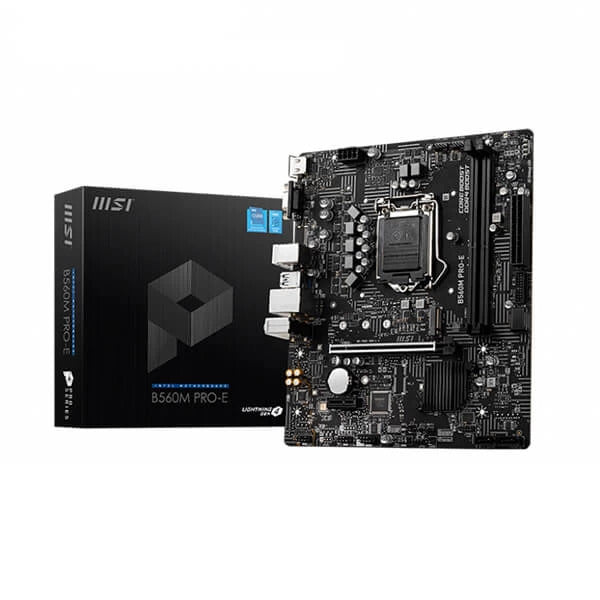

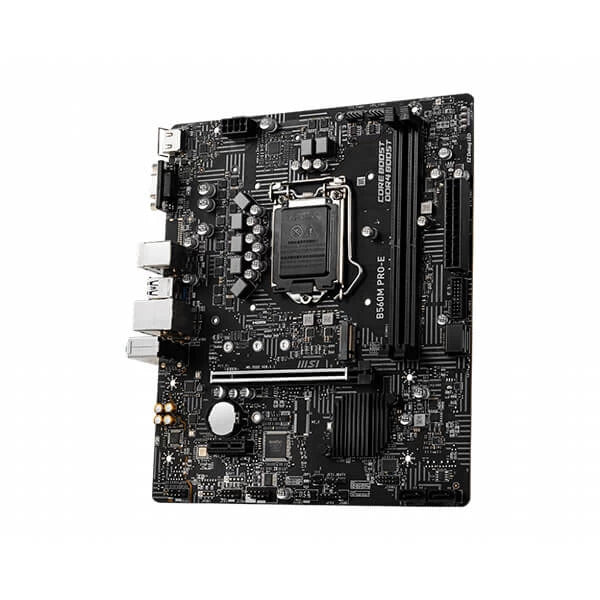

- MSI B560M Pro-E DDR4 Intel Motherboard
Description
Feature of MSI B560M Pro-E DDR4
- Supports 10th Gen Intel® Core™ , 11th Gen Intel® Core™ , Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 4800(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience : PCIe 4.0
- Turbo M.2 : Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI’s PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimised professional workflows but also less troubleshooting and longevity.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LOW LATENCY GAMING LAN POWERED BY INTEL
Stay connected with Intel® LAN, optimised for stable internet throughput ideal for championship level online plays.
FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
USER FRIENDLY DESIGN
MSI B560M Pro-E DDR4 motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty of possibility for the users need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
EZ DEBUG LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.
Specifications of MSI B560M Pro-E DDR4
CPU | Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core ™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200 |
Chipset | Intel® B560 chipset |
Memory |
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency:1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
Expansion Slot |
1x PCIe x16 slot (From CPU)Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU1x PCIe 3.0 x1 slot (From PCH) |
Onboard Graphics |
1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
LAN | 1x Intel® I219V 1Gbps LAN controller |
Storage |
Intel® B560 Chipset 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M)M2_1 slot (From B560 Chipset)Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devicesSATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
USB |
Intel® B560 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors) |
Form Factor |
mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
BIOS Features |
1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
Internal connectors |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector |

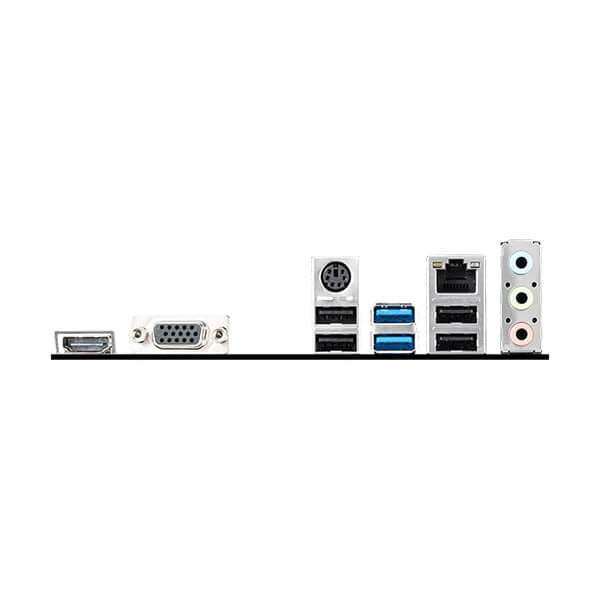

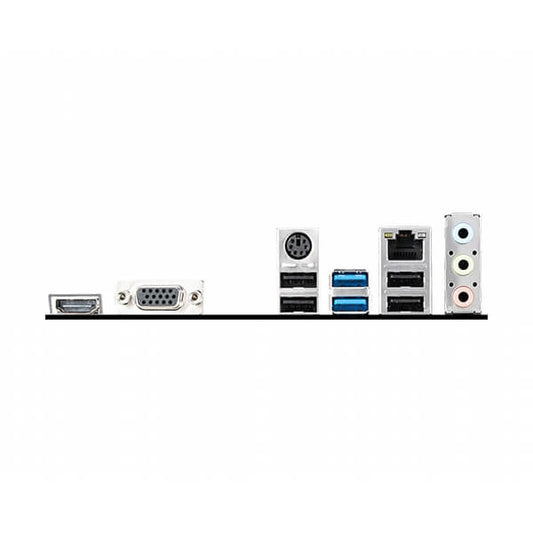

Back panel Connectors |
HDMI VGA Mouse / Keyboard LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 2.0 |
Warranty | 3 Years |
Note | *** Features, Price, Specifications are subject to change without notice. |
