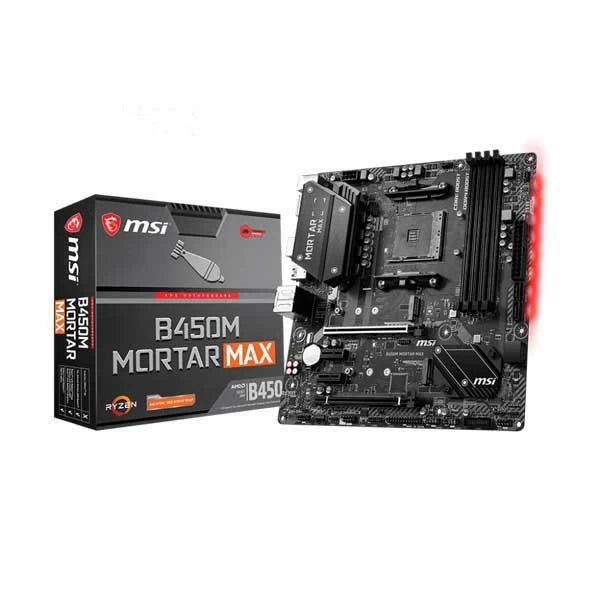

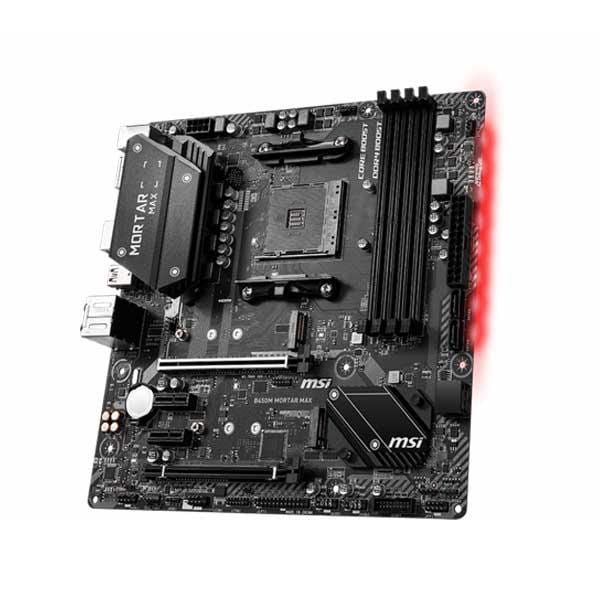

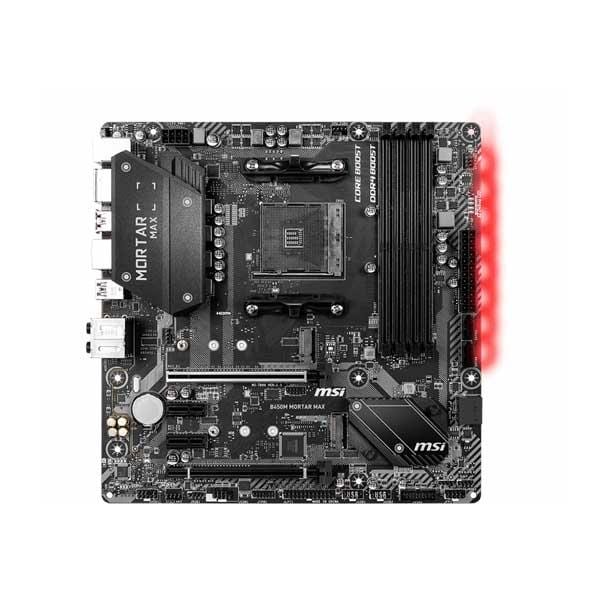

- MSI B450M Mortar Max DDR4 AMD Motherboard
Description
Features Of MSI B450M Mortar Max DDR4 AMD
For the best gaming experience, MSI B450 Mortar Max comes with a DDR4 boost to deliver the best data signals.Supports two-way AMD Crossfire with steel armor PCI-E slots. This helps to set up a multi GPU build.MSI B450 Mortar Max gives the most immersive audio experience as it comes with studio sound quality.No need to install a CPU, memory, or graphics card. Now flash any BIOS within seconds by simply using a USB key. No need to install a CPU, memory, or graphics card.
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
- Lightning Fast Game experience: 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability
- MULTI-GPU: With PCI-E STEEL ARMOR slot. Supports 2-Way AMD Crossfire™
- Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card
DIY FRIENDLY
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
Cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
HARDWARE
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard and gaming rig without any issue.
Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.
BIOS AND SOFTWARE
Complete your high performance experience with an array of performance enhancing software from MSI. From a loaded yet easy to use BIOS to potent live system tools, get the most out of your motherboard at any moment.
ENHANCED PERFORMANCE
MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
CPU
Power on your RYZEN processor with optimized circuit layouts and high quality power delivery parts for an incredibly stable operation.
MEMORY
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. You never have to worry about your system crashing during games with MSI DDR4 BOOST.
Storage
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB
Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s
IN-GAME ADVANTAGE
MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one.
Audio
Deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
Industrial Design
MAG series motherboards are focused on functionality and durability. Descended from MSI Arsenal GAMING, these motherboards take their likeliness from rugged military equipment and are ready for battle.
MYSTIC LIGHT
Illuminate with MSI Mystic Light and bring the motherboard RGB lighting to life. Choose from millions of colors and sync across compatible devices.
LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
Components
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
Specifications Of MSI B450M Mortar Max DDR4 AMD
Model | MSI B450M MORTAR MAX |
Processor | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
Chipset | AMD® B450 Chipset |
Memory |
4 x DDR4 memory slots, support up to 64GBSupports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)For AMD Other CPUSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) |
Slots |
1 x PCIe 3.0 x16 slot (PCI_E1)Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 2 x PCIe 2.0 x1 slots2 PCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot. PCI_E2 slot will be unavailable when an expansion card is installed in the PCI_E3 slot. |
Onboard Graphics |
1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz 1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1,2 Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors Maximum shared memory of 2048 MB |
Multi-GPU | Supports 2-Way AMD® CrossFire™ Technology |
Storage |
AMD® B450 Chipset 4 x SATA 6Gb/s ports 1 1 x M.2 slots (M2_2, Key M) 1Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devicesAMD® CPU 1x M.2 slot (M2_1, Key M)1Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devicesPCI_E4 slot will be unavailable when an M.2 SSD is installed in the M2_2 slot. |
RAID |
AMD® B450 Chipset Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe RAID |
USB |
AMD® B450 Chipset 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU AMD® Processor 4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
Audio |
Realtek® ALC892 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
LAN | 1 x Realtek® RTL8111H-CG Gigabit LAN controller |
Internal Connectors |
1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 3 x 4-pin system fan connectors 2 x 5050 RGB LED strip 12V connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x Serial Port connector 1 x Parallel Port connector |

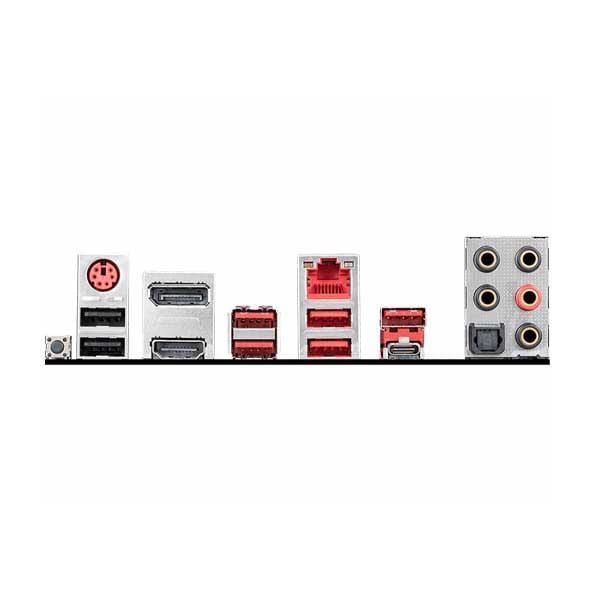

Back Panel Ports |
Flash BIOS Button PS/2 Combo Port DisplayPort LAN Port USB 3.2 Gen2 Type A HD Audio Connectors USB 2.0 Ports HDMI Port USB 3.2 Gen1 USB 3.2 Gen2 Type C Optical S/PDIF OUT |
Dimensions |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) m-ATX Form Factor |
Mounting | 8 mounting holes |
Operating System |
Support for Windows® 10 64-bit Support for Windows® 7 64-bit * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
