- Lian Li O11D EVO Upright GPU Kit (White)
Description
Features of LIAN LI O11D EVO Upright GPU Kit (White)

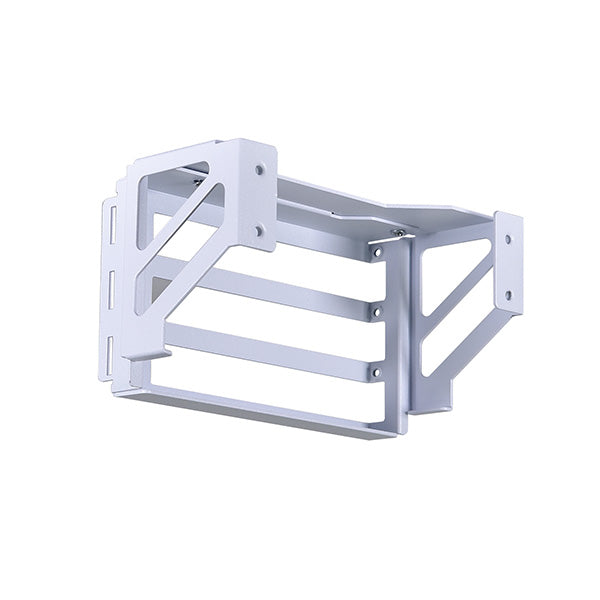

Show off your graphics card with the LIAN LI O11D EVO Upright GPU Kit (White) in a unique way with the exclusive upright GPU bracket, including a PCIe 4.0 riser cable for seamless connectivity.
- Upright graphics card accessories for O11D EVO
- New mounting angle for GPU opens room for unrestricted chimney-style configuration.
TWO MOUNTING WAYS WORK ON BOTH MODES
Both HDD tray panel and fan bracket support to mount upright GPU kit on normal or reverse mode.
HDD TRAY PANEL SCENARIO
Supreme Water-Cooling Configuration
Normal Mode with HDD Tray Panel Scenario
Moving the GPU next to the motherboard opens up the main chamber in the chassis for the tubes to pass through and creates a chimney-style airflow, effectively cooling the top and bottom radiator.
Normal Mode with HDD Tray Panel Scenario
Paired with the upright GPU kit, the front mesh kit provides the O11D EVO with additional fresh air intake from the front to better cool the GPU and the CPU.
Reverse Mode at Fan Bracket Scenario
Exhaust fans behind the GPU directly pull the heat out of the chamber, effectively control the GPU temperature.
Reverse Mode with Front Mesh Kit at Fan Bracket Scenario
Replace the glass panel to the front mesh kit brings further fresh air into the chassis to cool the CPU and GPU efficiently.
SUPPORT WIDE VARIETY SIZES GPU
While the bracket supports up to 3 slots thick GPUs, thin GPUs can be mounted at the second slot.
In addition, the L-type support bracket can be adjusted according to the GPU’s width and thickness.
GEN 4.0 PCIE RISER CABLE
The PCIe 4.0 riser cable supports bit rate speeds of 16GT/s. While providing double the bandwidth of PCIe 3.0, the Gen 4.0 riser cable remains backward compatible with a maximum transfer speed, offering great performances.
FAN AND RADIATOR COMPATIBILITY
When installing a three-slot thick GPU in the upright position, the radiator width clearance beside the bracket is limited to 130mm, and 120mm for fans.
Specifications of LIAN LI O11D EVO Upright GPU Kit (White)
PRODUCT NAME | Upright GPU Kit for O11D EVO |
BRACKET DIMENSION |
Mounting frame: 71.8mm(L) x 128mm(D) x 67.58 mm(H) Support frame: 70mm(L) x 81mm(D) x 10 mm(H) |
MATERIAL | 1mm STEEL |
PCIE RISER CABLE | Gen 4.0 |
CABLE LENGTH | 380mm |
CABLE INTERFACE | PCI-E X 16 |
EXPANSION SLOT | 3 slots |
GPU COMPATIBILITY |
Length: Maximum 355MM Thickness: Maximum 62MM thick Width: HDD Tray Panel Scenario: 108MM ~ 150MM Fan Bracket Scenario: 135MM~150MM |
WARRANTY | 1 year |
