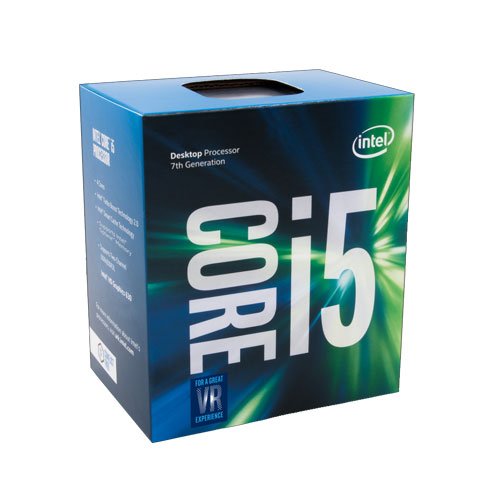

- INTEL Core i5 7400 7th Generation Processor ( 3.5 GHz / 4 Cores / 4 Threads )
Description
Features of INTEL Core i5 7400 7th Generation Processor
The Intel Core i5-7400 is a desktop processor with 4 cores, launched in January 2017. It is part of the Core i5 lineup, using the Kaby Lake architecture with Socket 1151. Core i5-7400 has 6 MB of L3 cache and operates at 3 GHz by default, but can boost up to 3.5 GHz, depending on the workload.
Intel is building the Core i5-7400 on a 14 nm production process, the transistor count is unknown. The multiplier is locked on Core i5-7400, which limits its overclocking capabilities.
With a TDP of 65 W, the Core i5-7400 consumes typical power levels for a modern PC. Intel's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 2400 MT/s, but with overclocking (and the right memory modules) you can go even higher. For communication with other components in the computer, Core i5-7400 uses a PCI-Express Gen 3 connection. This processor features the HD 630 integrated graphics solution.
Hardware virtualization is available on the latest intel processor Core i5-7400, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
The Intel core i5 7th Gen processor is among the best processors for those who want functional performance for the intel i5 processor price.
- Number of Cores - 4, Number of Threads - 4
- Processor Base Frequency - 3.00 GHz, Max Turbo Frequency - 3.50 GHz
- Cache - 6 MB SmartCache, Bus Speed - 8 GT/s DMI3
- Max Memory Size (dependent on memory type) 64 GB
- Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
- Max Number of Memory Channels - 2, ECC Memory Supported - No
Specifications of INTEL Core i5 7400 7th Generation Processor
| Memory Specifications | Max Memory Size (dependent on memory type) = 64 GB, Memory Types = DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V, Max # of Memory Channels = 2, ECC Memory Supported ‡ = No, |
| Graphics Specifications | Processor Graphics ‡ ] Intel® HD Graphics 630, Graphics Base Frequency = 350 MHz, Graphics Max Dynamic Frequency = 1.00 GHz, Graphics Video Max Memory = 64 GB, 4K Support = Yes, at 60Hz, Max Resolution (HDMI 1.4)‡ = 4096x2304@24Hz, Max Resolution (DP)‡ = 4096x2304@60Hz, Max Resolution (eDP - Integrated Flat Panel)‡ = 4096x2304@60Hz, DirectX* Support = 12 , OpenGL* Support = 4.4, Intel® Quick Sync Video = Yes, Intel® InTru™ 3D Technology = Yes, Intel® Clear Video HD Technology = Yes , Intel® Clear Video Technology = Yes, # of Displays Supported ‡ = 3, Device ID = 0x5912, |
| Advanced Technologies | Intel® Optane™ Memory Supported ‡ Yes, Intel® Turbo Boost Technology ‡ 2.0, Intel® vPro™ Technology ‡ No, Intel® Hyper-Threading Technology ‡ No, Intel® Virtualization Technology (VT-x) ‡ Yes, Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes, Intel® VT-x with Extended Page Tables (EPT) ‡ Yes, Intel® TSX-NI No, Intel® 64 ‡ Yes, Instruction Set 64-bit, Instruction Set Extensions SSE4.1/4.2, AVX 2.0, Idle States Yes, Enhanced Intel SpeedStep® Technology Yes, Thermal Monitoring Technologies Yes, Intel® Identity Protection Technology ‡ Yes, Intel® Stable Image Platform Program (SIPP) No, |
| Essentials | Product Collection = 7th Generation Intel® Core™ i5 Processors, Code Name = Products formerly Kaby Lake, Vertical Segment = Desktop, Processor Number = i5-7400, Status = Launched, Launch Date = Q1'17, Lithography = 14 nm. |
| Performance | # of Cores = 4, # of Threads = 4, Processor Base Frequency = 3.00 GHz, Max Turbo Frequency = 3.50 GHz, Cache = 6 MB SmartCache, Bus Speed = 8 GT/s DMI3, # of QPI Links =0, TDP = 65 W, |
| Supplemental Information | Embedded Options Available = No, Conflict Free = Yes |
| Expansion Options | Scalability = 1S Only, PCI Express Revision = 3.0, PCI Express Configurations ‡ = Up to 1x16, 2x8, 1x8 2x4, Max # of PCI Express Lanes = 16, |
| Package Specifications | Sockets Supported = FCLGA1151, Max CPU Configuration = 1, Thermal Solution Specification = PCG 2015C (65W), TJUNCTION = 100°C, Package Size = 37.5mm x 37.5mm, Low Halogen Options Available = See MDDS, |
| Security & Reliability | Intel® AES New Instructions Yes, Secure Key Yes, Intel® Software Guard Extensions (Intel® SGX) Yes, Intel® Memory Protection Extensions (Intel® MPX) Yes, Intel® OS Guard Yes, Execute Disable Bit ‡ Yes, Intel® Boot Guard Yes, |
| Warranty | 3 Years |
| Note** | Price, feature and specifications are subject to change without notice. |
