GIGABYTE DIRECT VRM DESIGN
The more advanced manufacturing process and the higher core count on the new generation of CPUs, requires motherboards to utilize a more sophisticated VRM design to make CPUs run at their full potential. GIGABYTE uses fully DIRECT VRM DESIGN, high quality MOSFETs and tantalum polymer capacitors to achieve higher efficiency, lower voltage ripple and lower temperature than traditional parallel VRM design.Your one stop destination for all your Computer needs!
Browse All Categories
- Home
- GIGABYTE Z690 Aorus TACHYON DDR5 Intel Motherboard
Description
Feature of Gigabyte Z690 Aorus TACHYON DDR5

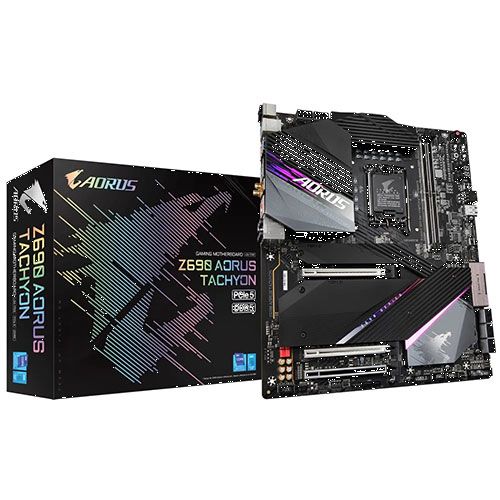

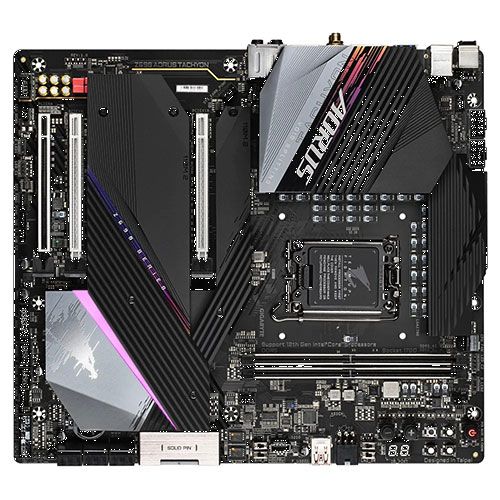

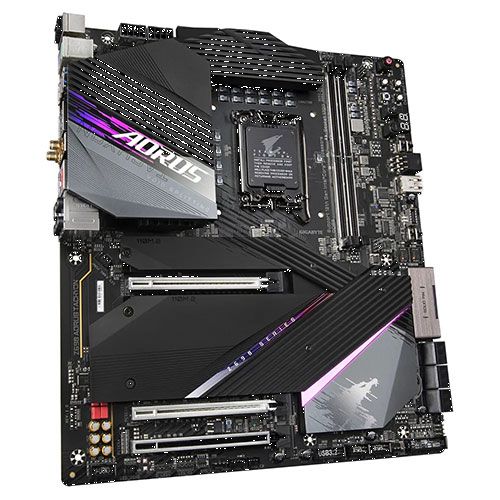

Gigabyte Z690 AORUS TACHYON DDR5 Intel Motherboard
GIGABYTE Z690 Aorus TACHYON is the pinnacle of overclocking motherboard completely designed by and for overclockers, who are continuously seeking to break unimaginable performance limit. Its specialized VRM design, memory layout trace and built-in overclocking buttons and switches enable overclocking enthusiasts to unleash full potential of latest generation Intel Core processor.
Digital PWM Controller
VRM design uses RENESAS RAA229131 PWM controller that directly drives 15 phases for the highest efficiency.105A Power Stage
Each vcore VRM phase uses 105A RAA220105 Power stage for maximum current capacity under extreme overclocking.Tantalum Capacitor Matrix
VRM design uses 100% full tantalum polymer capacitors for better transient response and less mechanical interference with extreme overclocking cooling device.Dual CPU Power Connectors
Dual 8 pin CPU power connectors with metal shielding provide maximal current input to processorPower Architecture
Tantalum Polymer Capacitor Matrix
By using 100% tantalum polymer capacitors design, it's easier for professional overclockers to insulate VRM area and use LN2 pot to cool down CPU without mechanical interference.
Improved Transient Response
With DIRECT VRM DESIGN and TANTALUM POLYMER CAPACITOR, Z690 motherboards transient response, voltage ripple and stability is highly improved under overclocking and heavy loading condition.
XTREME MEMORY
With 2-DIMM daisy chain memory trace layout, Z690 AORUS TACHYON can achieve the shortest memory DIMM distance between CPU, therefore reach the highest memory clock and the lowest latency.
PCIe 5.0 DESIGN
GIGABYTE Z690 Motherboards are ready to work with the upcoming PCIe 5.0 devices which are expected to experience double bandwidth than the current PCIe 4.0 devices. To reach the high speed and maintain good signal integrity, Gigabyte R&D uses the low impedance PCB to provide the maximum performance.Intel 802.11ax WIFI 6E
Intel latest Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WIFI 6E
- Dedicated spectrum in 6GHz band for less interference
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Specifications of Gigabyte Z690 Aorus TACHYON DDR5
Model | |
Brand | GIGABYTE |
Model | Z690 AORUS TACHYON |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipsets | |
Chipset | Intel® Z690 Express Chipset |
Memory | |
Number of Memory Slots | 2 x DDR5 DIMM |
Memory Standard | DDR5 |
Maximum Memory Supported | up to 64 GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16),"1 x PCI Express x16 slot, running at x8 (PCIEX8),"1 x PCI Express x16 slot, running at x4 (PCIEX4) |
Storage Devices | |
SATA 3Gb/s | 6 x SATA 6Gb/s |
SATA RAID | Raid 0, 1, 5, 10 |
Onboard Video | |
Onboard Video Chipset | N/A |
Onboard Audio | |
Audio Channels | 3.2/4/5.1/7.1-channel |
Audio Chipset | Realtek ALC1220-VB codec |
Onboard LAN | |
LAN Chipset | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

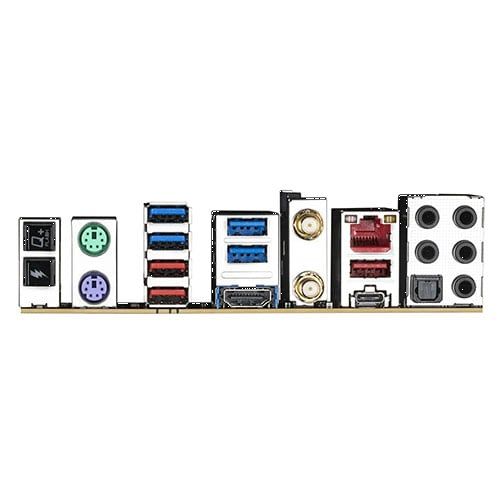

Rear Panel Ports | |
S/PDIF Out | 1 x optical S/PDIF Out connector |
Audio Ports | 5 x Audio jack(s) |
PS/2 | 1 x PS/2 keyboard & PS/2 mouse connectors |
HDMI | 1 x HDMI |
Onboard USB | |
Onboard USB | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support," 3 x USB 3.2 Gen 2 Type-A ports (red)," 4 x USB 3.2 Gen 1 ports |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | E-ATX Form Factor; 30.5cm x 27.0cm |
