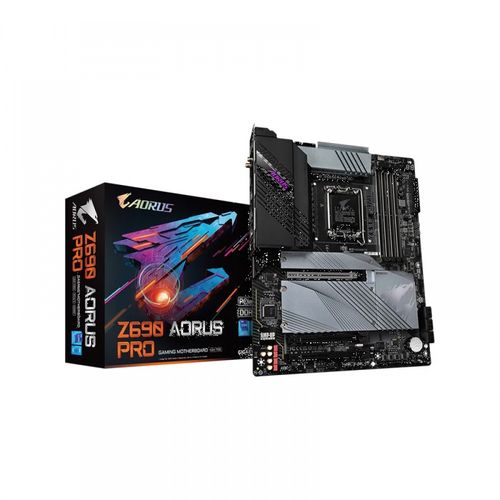

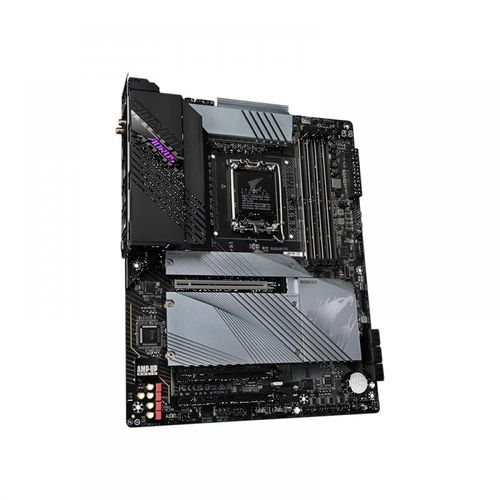

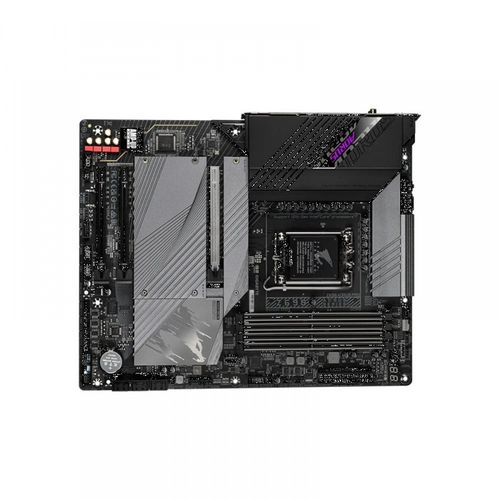

- GIGABYTE Z690 Aorus Pro DDR5 Intel Motherboard
Description
Feature of Gigabyte Z690 Aorus Pro DDR5
RULE SUPREME WITH THE GIGABYTE Z690 Aorus Pro DDR5 MOTHERBOARDS. THE NEW KING OF GAMING PLATFORM CONTINUES THE LEGENDARY AORUS BLOODLINE WITH THE MOST ROBUST POWER DELIVERY AND DOMINANT THERMAL DESIGN, GLORIFIED WITH THE COMPLETE MEMORY OVERCLOCKING TECHNOLOGY TO CROWN YOUR PC WITH THE BEST ALDER LAKE’S PERFORMANCE IN ALL ITS GAMING GLORY.
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 16+1+2 Direct Digital VRM Design with 90A Power Stage* and Tantalum Polymer Capacitor
- DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Intel® WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
- Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Enlarged Thermal Guard
- SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- At the heart of the GIGABYTE Z690 Aorus Pro DDR5 motherboard is the Intel Z690 chipset, giving you access to an LGA1700 socket, four dual-channel DDR5 memory slots, six SATA III ports, and four M.2 PCIe 4.0 interfaces, all working together to optimize overall system performance. Connect a wide range of graphics and utility cards with one PCIe 5.0 x16 and two PCIe 3.0 x16 slots. USB 3.2 Gen 1 and Gen 2 ports allow you to quickly transfer data with speeds up to 5 and 10 Gb/s, respectively.
- USB 2.0 Type-A ports allow you to use peripherals like mice and keyboards while Bluetooth 5.2 provides wireless support for select devices. A single USB 3.2 Gen 2×2 Type-C port unlocks support for power-hungry devices like mass storage arrays and various interfaces. Connect to your home network and compete online with Wi-Fi 6 (802.11ax) technology or use the onboard RJ45 2.5 Gigabit Ethernet port if you prefer a wired connection. Experience immersive audio with Realtek 7.1-channel sound backed by Hi-Res Audio certification.
Power Design
- Designed to ensure optimal performance with Intel 12th Gen processors, the GIGABYTE Z690 AORUS PRO uses a unique VRM layout designed to unleash the full potential of your CPU.
- Multi-core CPU performance uses 16 VCORE phases with a 90A Power Stage, one VCCGT phase with 60A Power stage for integrated graphics, and two CVVAUX phases with 70A DrMOS to stabilize power for CPU integrated PCIe and memory controllers.
- A single PCIe 5.0 slot provides up to 128 GB/s bandwidth while the 6-layer PCB offers efficient dissipation. Additionally, you get access to RAID storage solutions for your M.2 NVMe and SATA drives with sequential data transfer speeds up to 21053 MB/s.
DDR5 Memory Enhanced
- GIGABYTE Z690 AORUS PRO With DDR5 XMP 3.0, you can equip your system with modules rated up to 6200 MHz with native voltage control designed to optimize performance. Shielded Memory Routing offers a dedicated PCB layer specifically made for tracing signals without interference.
- SMD DIMM offers stainless steel plating designed to prevent bending and keep your modules held in place while improving signal stability when running at typical and overclocking states.
Thermal Solutions
- Keep your components nice and cool while under extreme thermal pressure with integrated cooling solutions that include a Fully Covered MOSFET Heatsink, 5 W/mK Thermal Pad, Enlarged Thermal Guard, M.2 Thermal Guard II, and 2x Copper PCB. The MOSFET Heatsink offers a 2x large surface area and is constructed from a single piece with various inlets allowing proper airflow.
- The M.2 heatsinks and thermal pads reduce heat buildup within your storage devices. Dual-layer copper design improves temperature efficiency with higher thermal conductivity and lower impedance. Smart Fan 6 leverages multiple fan headers and temperature sensors to monitor and execute fan protocols automatically or leave control in your hands with custom settings.
Connectivity Options and Enhancements
- Connect to your network wirelessly with Wi-Fi 6 (802.11ax) technology or use the integrated 2.5 Gigabit Ethernet LAN port.
- GIGABYTE Z690 AORUS PRO USB 3.2 Gen 2×2 offers data transfer speeds up to 20 Gb/s, allowing you to use demanding devices like mass storage arrays and more.
- The Realtek ALC4080 Codec provides immersive sound backed by Hi-Res Audio certification. Smart Headphone Amp auto-detects headphone impedance and reduces distortion so your teammates can hear you clearly.
System Configuration
- Fine-tune your experience with an array of settings and options with UEFI BIOS or use GIGABYTE Z690 AORUS PRO’s EasyTune software, giving you an easy-to-use interface.
- GIGABYTE Z690 AORUS PRO System Information Viewer gives you a one-stop location that provides you with in-depth status monitoring and customization ideal for those who wish to unlock the full potential of their build.
Personalization
- Illuminate your PC in a flood of color and effects with free RGB FUSION 2.0 software, allowing you to add a sense of personalization to your build with GIGABYTE Z690 AORUS PRO.
Q-Flash
- Update the BIOS of your system without installing the CPU, memory, and graphics card with Q-Flash. Simply install the latest file to a USB drive, plug it into the designated USB port, and press the Q-Flash button and it will automatically update.
Solid Pin
- GIGABYTE Z690 AORUS PRO Solid Pin design gives power connectors larger contact area for stable electrical signals, providing a longer lifespan and heat reduction.
Specifications of Gigabyte Z690 Aorus Pro DDR5
| CPU |
LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU (Please refer to "CPU Support List" for more information.) |
| Chipset | Intel® Z690 Express Chipset |
| Memory |
Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® ALC4080 CODEC High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required. |
| LAN | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Intel® Wi-Fi 6 AX200: WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Storage Interface |
CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset. |
| USB |
Chipset: 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 2 x temperature sensor headers 1 x reset jumper 1 x Clear CMOS jumper ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |

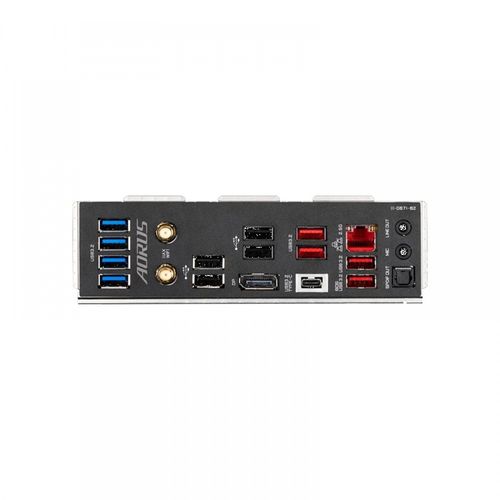

| Back Panel Connectors |
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| BIOS |
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice |
