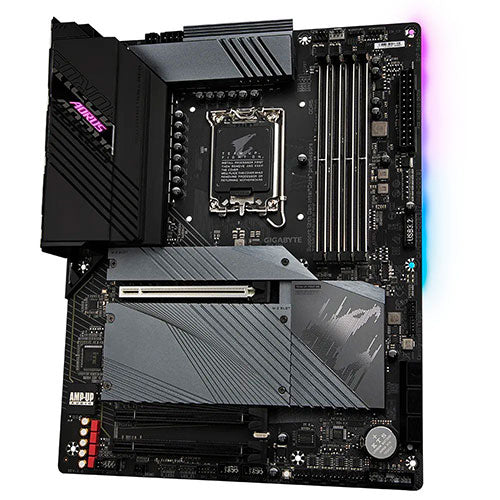

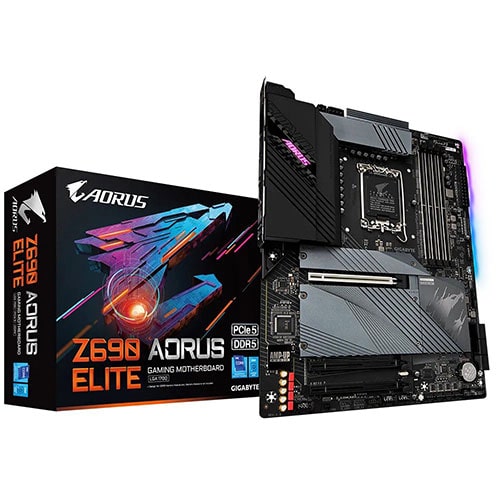

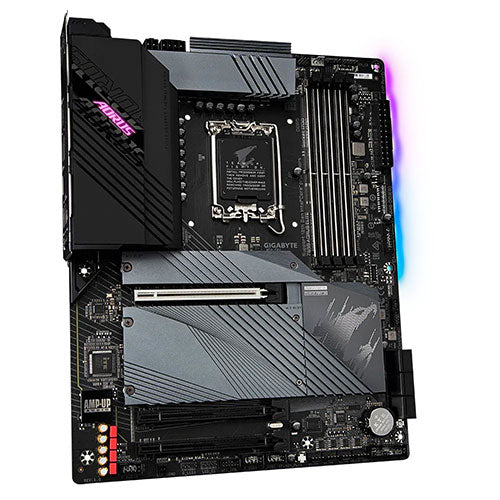

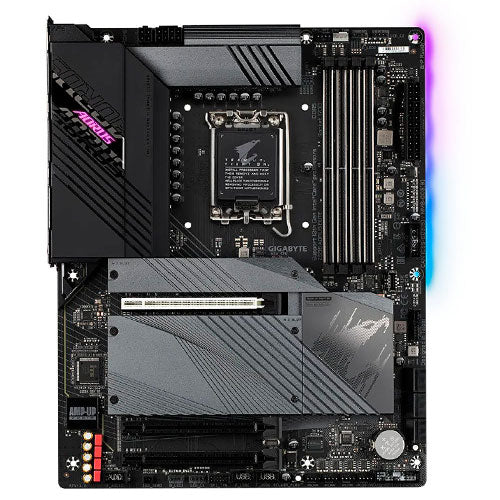

- GIGABYTE Z690 Aorus Elite DDR5 Intel Motherboard
Monsoon Sale Offer
Description
Feature of Gigabyte Z690 Aorus Elite DDR5
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 16*+1+2 Twin Hybrid Phases Digital Power Design with 60A DrMOS and Tantalum Polymer Capacitor
- DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
- Fast 2.5GbE LAN with Bandwidth Management
- 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
- SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Z690 AORUS ELITE AX
THE NEW KING OF GAMING
Rule supreme with the Z690 AORUS gaming motherboards. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.
UNPARALLELED PERFORMANCE
With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.​
XTREME MEMORY
GIGABYTE Z690 Aorus Elite DDR5 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
THERMAL REACTIVE ARMOR
GIGABYTE Z690 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming
CONNECTIVITY
GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage, and WIFI connectivity.
DEFINITIVE AESTHETICS
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality
Specifications of Gigabyte Z690 Aorus Elite DDR5
Model | |
Brand | GIGABYTE |
Model | Z690 AORUS ELITE |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipsets | |
Chipset | Intel Z690 Express Chipset |
Memory | |
Number of Memory Slots | 4 x DDR4 |
Memory Standard | DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules |
Maximum Memory Supported | 128 GB |
Channel Supported | Dual Channel DDR5 Memory Technology |
Expansion Slots | |
PCI Express x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16), 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) |
Storage Devices | |
SATA 3Gb/s | 6 x SATA 6Gb/s connectors |
Onboard Video | |
Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics |
Onboard Audio | |
Audio Chipset | Realtek ALC1220-VB codec |
Onboard LAN | |
LAN Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

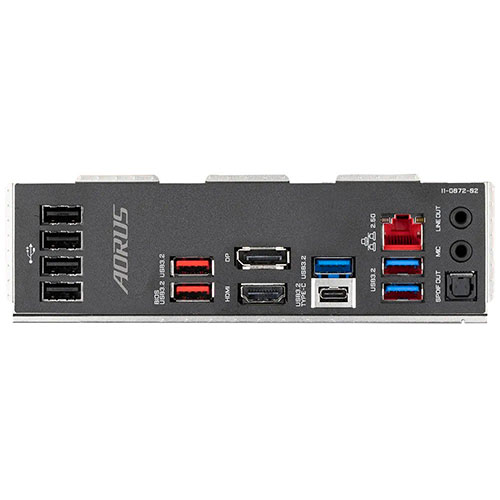

Rear Panel Ports | |
Audio Ports | 2 x audio jacks |
Video Ports | 1 x DisplayPort and 1 x HDMI |
HDMI | 1 x HDMI Port |
Onboard USB | |
Onboard USB | N/A |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | ATX |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
Dimensions | 30.5cm x 24.4cm |
