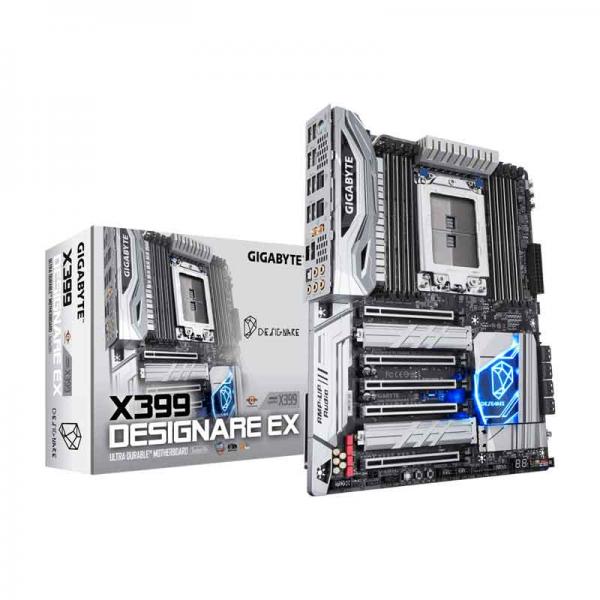

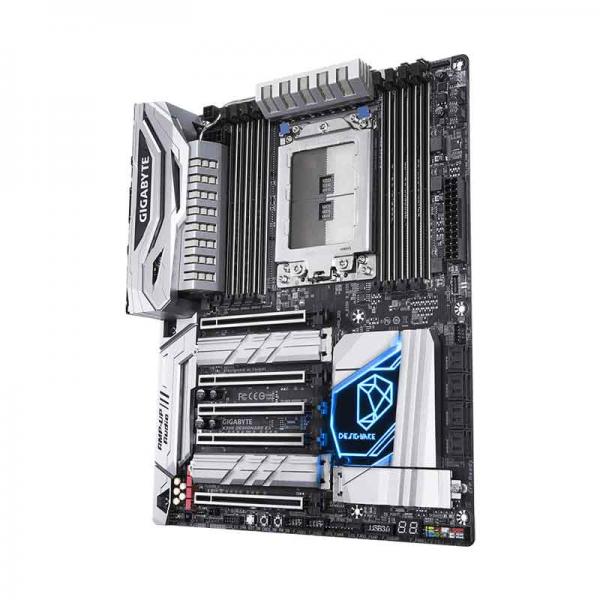

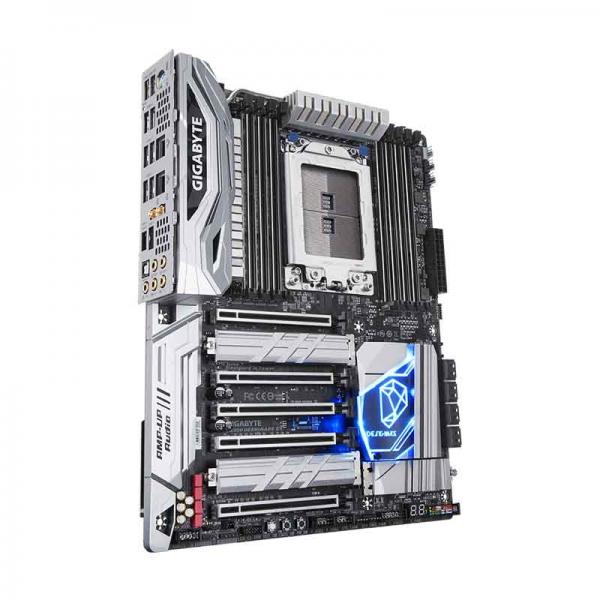

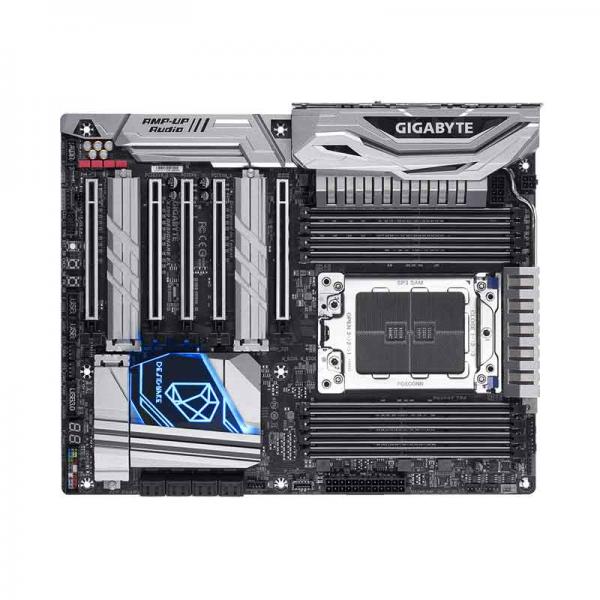

- GIGABYTE X399 Designare EX Wifi DDR4 AMD Motherboard
Description
Feature of Gigabyte X399 Designare EX WiFi DDR4
- Supports AMD Ryzen™ Threadripper™ Processors
- Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs, 3600MHz (OC)
- Fast Front and Rear USB 3.1 Type-C™ Interface
- 4-Way Graphics Support with Dual Armor and Ultra Durable™ Design
- Server-Class Digital Power Design & Gold Plated Solid Power Connectors
- Dual Intel GbE LAN with cFosSpeed Internet Accelerator Software
- ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
- Sound BlasterX 720°, the Top-of-the-line Audio Engine Solution for 4K Gaming and Entertainment
- Intel® Dual Band 802.11ac Bluetooth 4.2 – AC 8265 WiFi Module
- RGB FUSION with Multi-Zone LED Light Show design, support Digital LED & RGB LED strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface and Thermal Guard
- USB DAC-UP 2 with Adjustable Voltage
- Precise Digital USB Fuse Design for Stronger Protection
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Base Plated & I/O Shield Armor
- APP Center Including EasyTune™ and Cloud Station™ Utilities
4-Way Graphics with Premium 48 PCIe Lanes Bandwidth
GIGABYTE X399 motherboards feature a unique PCI Express design that utilizes 100% of all 48 lanes from the CPU when in a 4-Way or 3-Way graphics configuration providing the full bandwidth available and provide the best graphics bandwidth possible to the user.
Triple PCIe Gen3 x4 M.2 Direct from CPU
GIGABYTE X399 Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
Triple M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives—Thermal Guard. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.
Server-Class Digital Power Design
GIGABYTE X399 motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new AMD Ryzen™ Threadripper CPUs.
IR Digital PWM & IR PowIRstage® ICs
This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowIRstage® ICs, preventing the overheating of each individual PowIRstage®, resulting in longer lifespan and better reliability.
Server Level Chokes
GIGABYTE X399 motherboards feature Server Level Chokes.
• Server level reliability
• High current capacity
• New design reduces heat created by power loss and provides efficient power delivery to CPU VRM area.
Gold Plated Solid Power Connectors
Make Good Connection and Significantly Lower the Wires Capacity
GIGABYTE X399 motherboards feature gold plated ATX 24pin & ATX 12V 8pin+4pin power connectors for offering stable and affordable power supply while CPU overloading. Gold provides superior conductivity and signal transmission than standard implementations, also providing far better reliability and stability over time by resistance to metal corrosion caused by frequent use overtime.
Armor
GIGABYTE X399 motherboards are designed with an aggressive stance, but looks are just the beginning. The armor on the GIGABYTE X399 motherboards are created to offer best-in-class performance while still staying cool.

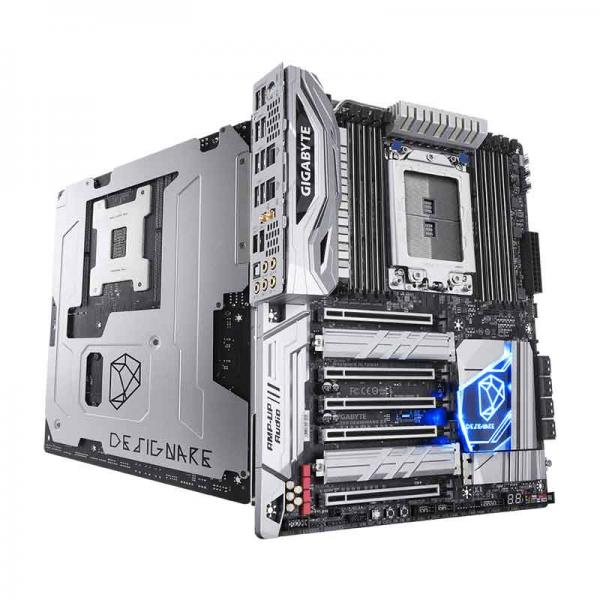

Base Plate
GIGABYTE X399 Designare EX Wifi DDR4 Motherboards are the perfect choice when starting your PC build. With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PC. With larger and heavier coolers, graphics cards, and even memory modules the GIGABYTE Base Plate is perfect to help support any enthusiast’s build while reducing cuts and stings from sharp areas of the motherboard.
Specifications of Gigabyte X399 Designare EX WiFi DDR4
| CPU |
SocketTR4: AMD Ryzen™ Threadripper™ processor |
| Chipset | AMD X399 |
| Memory |
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory Quad channel memory architecture Support for DDR4 3600 *(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133 MHz memory modules* Recommend to use a 1st Gen. Ryzen™ Threadripper™ processor to achieve 3600MHz (O.C.) speed. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Audio |
Realtek® ALC1220 codec Support for Sound BlasterX 720° High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 2 x Intel® GbE LAN chips (10/100/1000 Mbit) |
| Wireless Communication module |
Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1 EDR Support for 11ac wireless standard and up to 867 Mbps data rate* Actual data rate may vary depending on environment and equipment. |
| Expansion Slots |
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)(The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4)(The PCIEX4 slot conforms to PCI Express 2.0 standard.) |
| Storage Interface |
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)(M2Q_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
| Multi-Graphics Technology |
Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies |
| USB |
CPU: 8 x USB 3.1 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x digital LED strip header 1 x digital LED strip power select jumper 2 x RGB (RGBW) LED strip headerss 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ header with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 1 x Clear CMOS button 2 x temperature sensor headers 1 x Clear CMOS jumper |

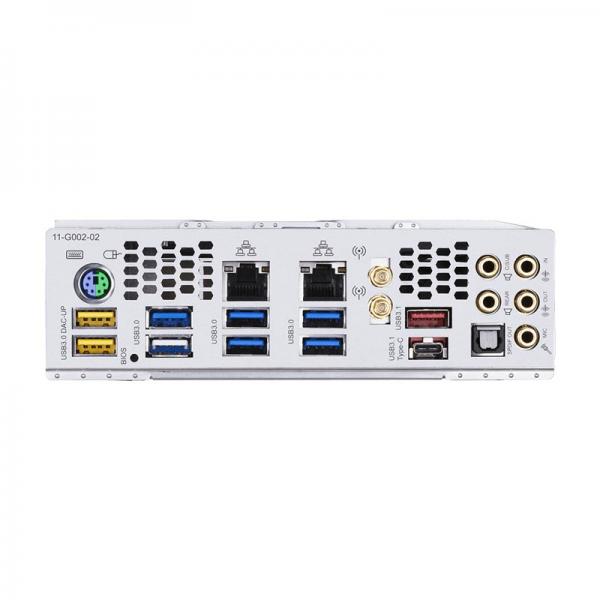

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) 8 x USB 3.1 Gen 1 ports 2 x RJ-45 ports 2 x MMCX antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In) |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. |
| BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ Support for Q-Flash Plus* The USB flash drive used must be a USB 2.0 flash drive. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenBIOS SetupColor TemperatureCloud StationEasyTuneFast BootGame Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker USB DAC-UP 2 V-TunerSupport for Q-Flash Support for Xpress Install |
| Bundled Software |
Norton® Internet Security (OEM version) XSplit Gamecaster Broadcaster (12 months license) cFosSpeed |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years |
| Note | ***Features, Price and Specifications are subject to change without notice. |
