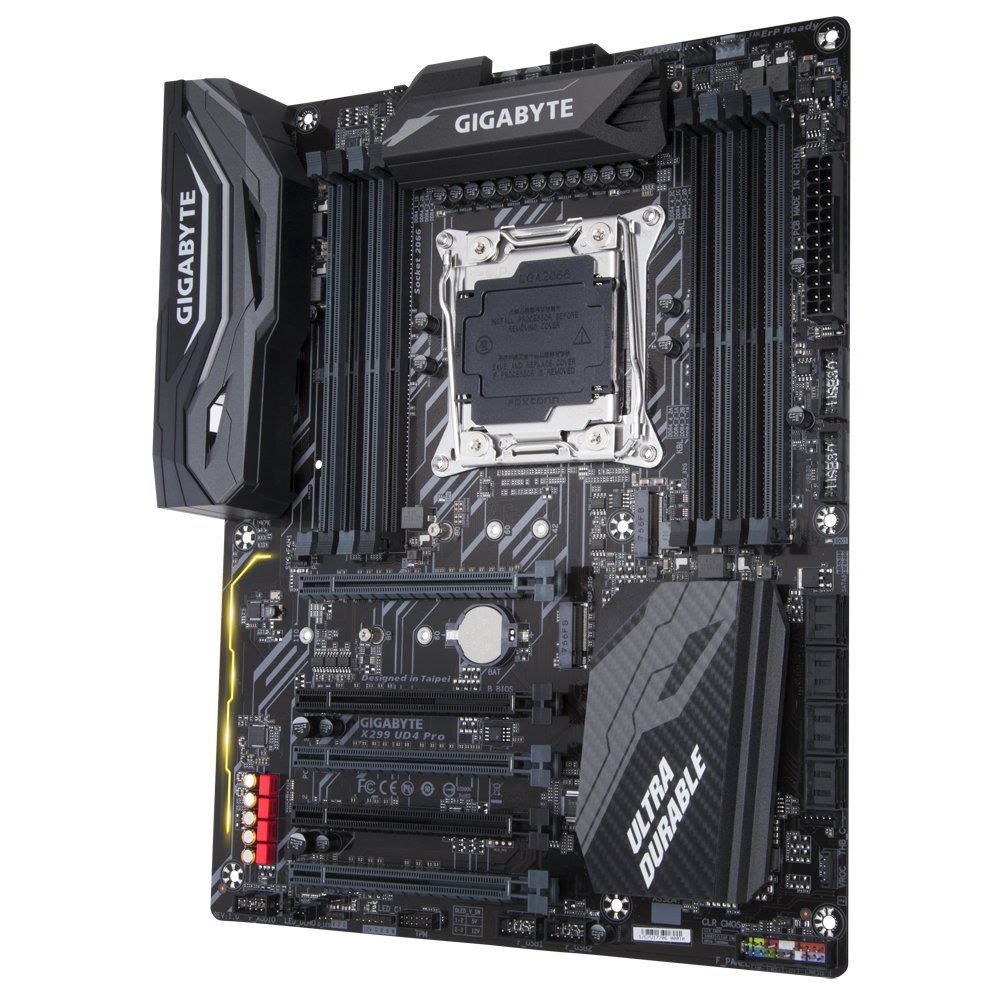

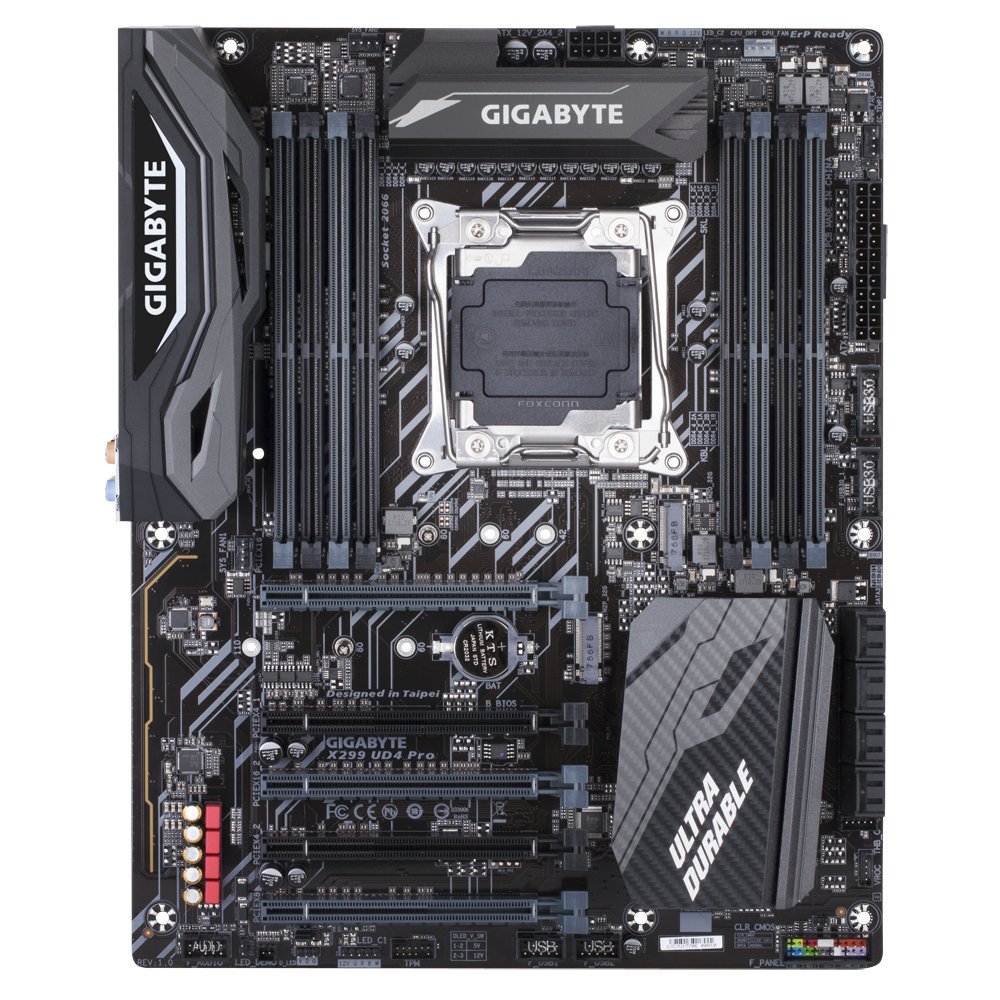

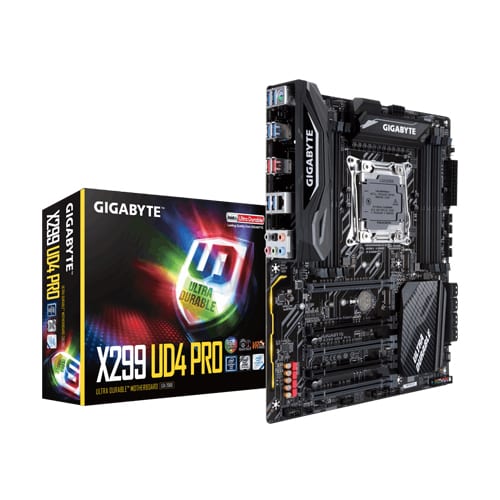

- GIGABYTE X299 UD4 Pro DDR4 Intel Motherboard
Description
Feature of Gigabyte X299 UD4 Pro DDR4
Intel X299 Ultra Durable Motherboard Features
- 3-Way Graphics Support
- Server-Class Digital Power Design
- ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitor
- RGB FUSION support Digital LED and RGBW Light Strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
- NVMe PCIe Gen3 x4 U.2 support by optional adaptor
- Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
- Anti-Sulfur Resistor Design
- Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection
- Lightning-Fast Intel ® Thunderbolt™ 3 AIC Support
- GIGABYTE UEFI DualBIOS™
- APP Center Including EasyTune™ and Cloud Station™ Utilities
RGB Fusion with Digital LEDs
With GIGABYTE X299 UD4 Pro DDR4 Motherboards, RGB Fusion is even better with Digital LEDs. RGB Fusion offers users the option to control external LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on X299 Series GIGABYTE Motherboards are now upgraded with Digital LED support. With external digital LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
GIGABYTE Motherboards will support either 5v or 12v digital LED strips. RGB Fusion with Digital LEDs comes with 9 new patterns and various speed settings with more to come.
RGB Fusion (Advanced mode)
With the all new RGB Fusion software, users have access to different preset LED lighting configurations with choice of colors. You can even set the LEDs to synchronize with your favorite music or have them change colors to indicate the CPU temperature. For true lighting experts there is an Advanced Mode, which can be fully customized by individual area with its own effects and color transitions, along with specific duration and transition times.
ALC 1220 120dB SNR HD Audio
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
Server-Class Digital Power Design
GIGABYTE X299 series motherboards use an all digital CPU power design which includes both digital PWM Controllers and Smart Power Stage controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel ® Core™ X-series CPUs.
Specifications of Gigabyte X299 UD4 Pro DDR4
CPU |
Support for Intel® Core™ X series processors in the LGA2066 package L3 cache varies with CPU |
Chipset | Intel® X299 Express Chipset |
Memory |
8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Support for up to 512 GB of system memory when using Registered DIMMs. * Supported when using a 44-lane or 28-lane CPU (6-core or above). 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core). 4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above). Dual channel memory architecture. Supported when using a 16-lane CPU (4-core). Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM memory modules Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode) * R-DIMM is only supported by BIOS version F3 and earlier versions. Support for Extreme Memory Profile (XMP) memory modules |
Expansion Slots |
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
Storage Interface |
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
Multi-Graphics Technology |
Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies |
USB |
Chipset+ASMedia® USB 3.1 Gen 2 Controller: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel Chipset: 10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers) 4 x USB 2.0/1.1 ports available through the internal USB headers |
Internal I/O Connectors |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x 3 Amp fan/water cooling pump header 1 x digital LED strip header 1 x digital LED strip power select jumper 2 x RGB (RGBW) LED strip extension cable headers 2 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x Intel® VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x temperature sensor header 1 x Clear CMOS jumper |

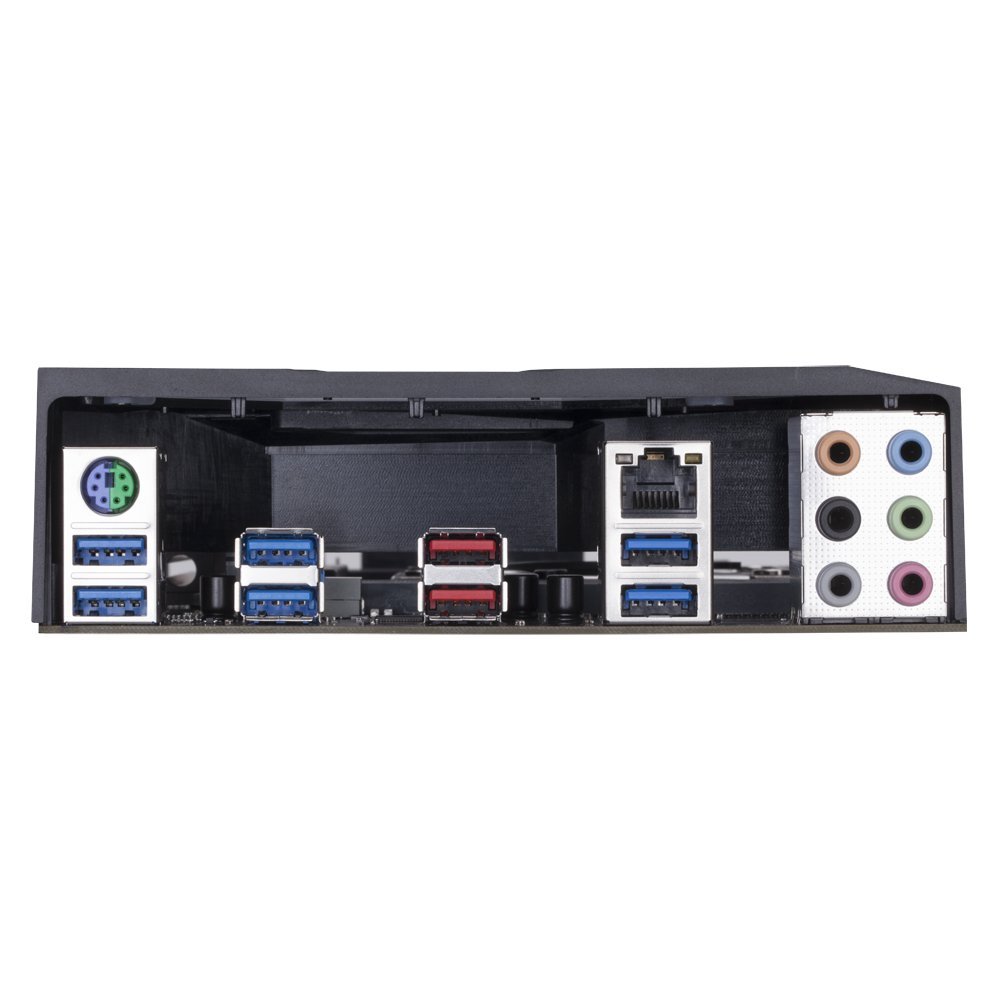

Back Panel Connectors |
1 x PS/2 keyboard/mouse port 2 x USB 3.1 Gen 2 Type-A ports (red) 6 x USB 3.1 Gen 1 ports 1 x RJ-45 port 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring |
Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control |
BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
Support for APP Center @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install |
Bundle Software |
Norton® Internet Security (OEM version) cFosSpeed |
Operating System | Support for Windows 10 64-bit |
Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
