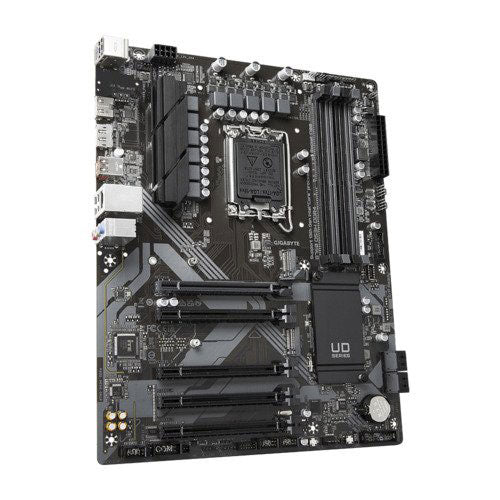

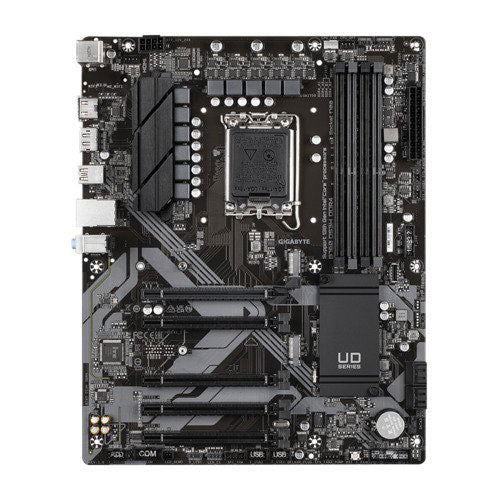

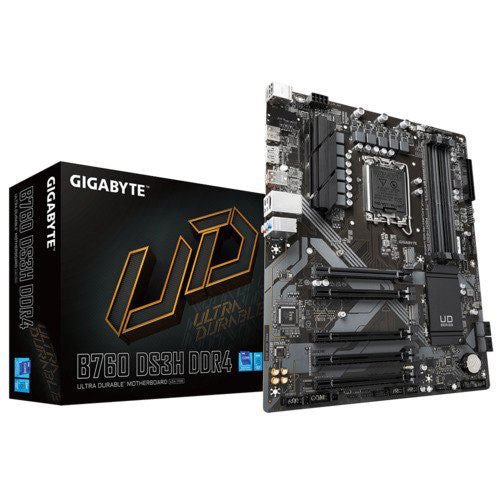

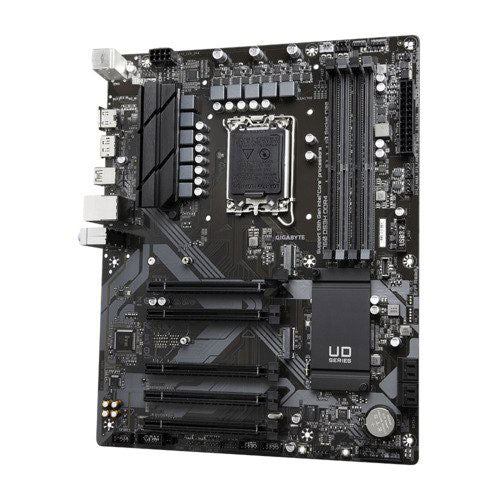

- GIGABYTE B760 DS3H DDR4 Intel Motherboard
Description
Features of GIGABYTE B760 DS3H DDR4 Intel Motherboard
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
CONNECTIVITY
GIGABYTE B760 DS3H enable the ultimate connection experience with blazing data-transfer speeds through the next generation network and storage.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
SPECIFICATION
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Specifications of GIGABYTE B760 DS3H DDR4 Intel Motherboard
| Model | |
| Brand | GIGABYTE |
| Model | B760 DS3H DDR4 |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipsets | |
| Chipset | Intel B760 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR DIMM |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Maximum Memory Supported | 128 GB |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Expansion Slots | |
| PCI Express x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)/4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| Onboard Video | |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Onboard Audio | |
| Audio Chipset | Realtek audio codec |
| Onboard LAN | |
| LAN Chipset | Realtek GbE LAN chip (1 Gbps/100 Mbps) |

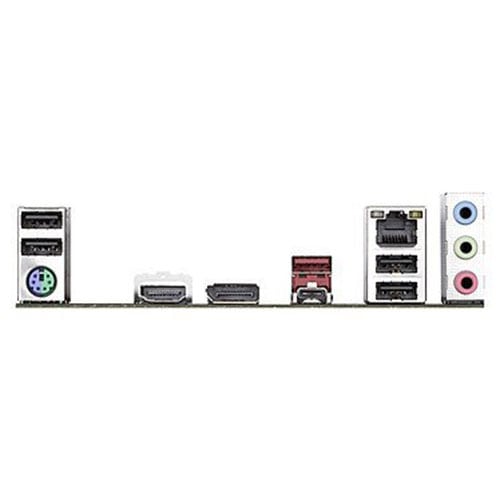

| Rear Panel Ports | |
| Audio Ports | 3 x audio jacks |
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x DisplayPort |
| HDMI | 1 x HDMI Port |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | ATX |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 30.5cm x 24.4cm |
