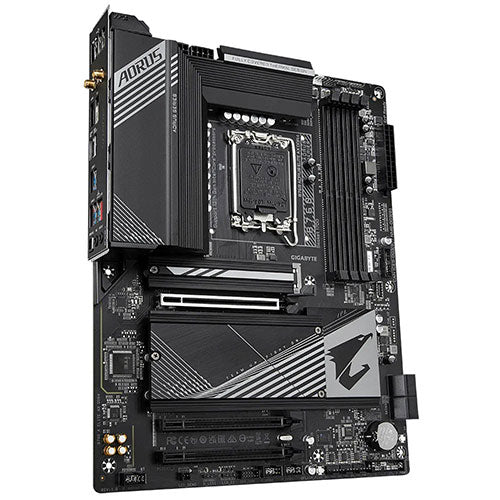

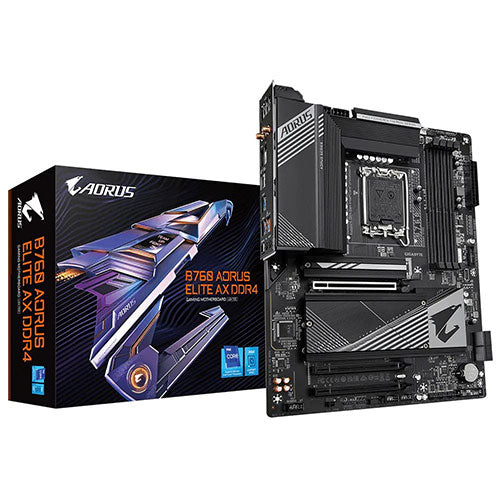

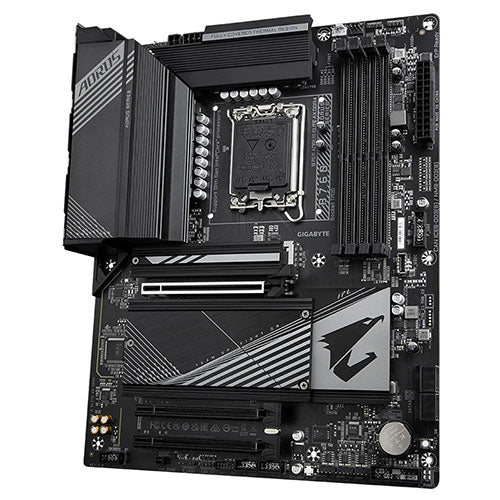

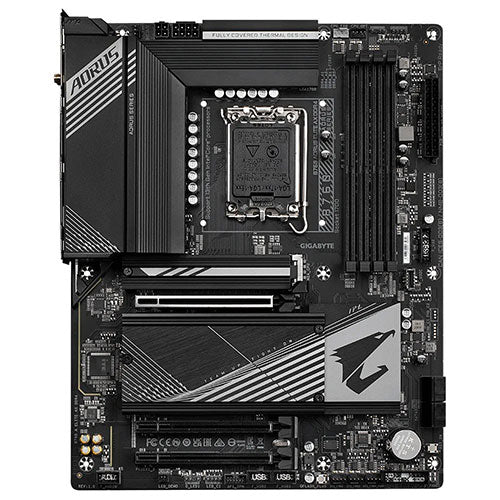

- GIGABYTE B760 Aorus Elite AX DDR4 Intel Motherboard
Description
Features of GIGABYTE B760 Aorus Elite AX DDR4 Intel Motherboard
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specifications of GIGABYTE B760 Aorus Elite AX DDR4 Intel Motherboard
Model | |
Brand | GIGABYTE |
Model | GIGABYTE B760 Aorus Elite AX |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipsets | |
Chipset | INTEL B760 |
Memory | |
Number of Memory Slots | 4 x DDR4 |
Memory Standard | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800( |
Maximum Memory Supported | 128 GB |
Channel Supported | Dual Channel DDR4 Memory Technology |
Expansion Slots | |
PCI Express x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
Storage Devices | |
SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
Onboard Video | |
Onboard Video Chipset | N/A |
Onboard Audio | |
Audio Channels | 2/4/5.1/7.1-channel |
Audio Chipset | Realtek® Audio CODEC |
Onboard LAN | |
LAN Chipset | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |

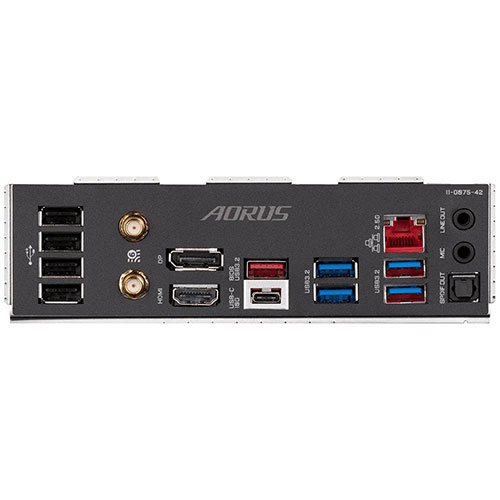

Rear Panel Ports | |
USB | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports |
S/PDIF Out | 1 x optical S/PDIF Out connector |
Audio Ports | 2 x audio jacks |
Video Ports | 1 x DisplayPort and 1 x HDMI |
HDMI | 1 x HDMI |
Onboard USB | |
Onboard USB | N/A |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | ATX Form Factor |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
Dimensions | 30.5 x 24.4cm |
