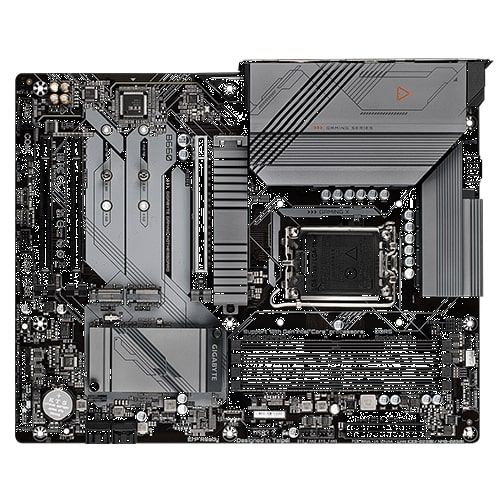

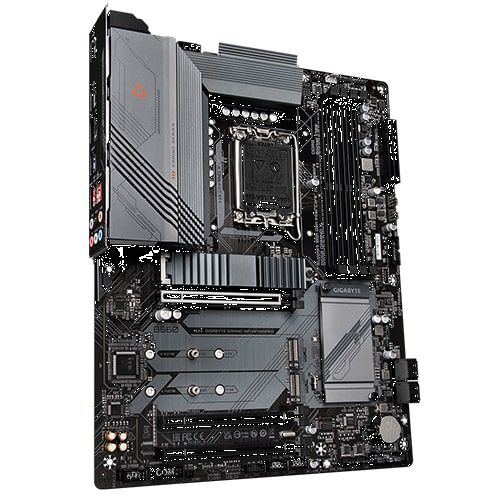

- GIGABYTE B660 Gaming X DDR5 Intel Motherboard
Description
Feature of Gigabyte B660 Gaming X DDR5
XTREME MEMORY
GIGABYTE B660 Gaming X DDR5 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing and reliable SMD slot. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
NEXT GENERATION CONNECTIVITY
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity.
DEFINITIVE AESTHETICS
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specifications of Gigabyte B660 Gaming X DDR5
Model | |
Brand | GIGABYTE |
Model | B660 GAMING X |
Supported CPU | |
CPU Socket Type | LGA1700 |
CPU Type | 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
Chipsets | |
Chipset | Intel® B660 Express Chipset |
Memory | |
Number of Memory Slots | 4 x DDR DIMM |
Memory Standard | DDR5 |
Maximum Memory Supported | 128 GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 2.0 x16 | 1 |
PCI Express x4 | 1 |
PCI Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot c |
Storage Devices | |
SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 |
Additional RAID Controller | 4 x SATA 6Gb/s |
Onboard Video | |
Onboard Video Chipset | Intel® B660 Express Chipset |
Onboard Audio | |
Audio Channels | 7.1-Channel High Definition Audio CODEC |
Onboard LAN | |
LAN Chipset | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Max LAN Speed | 10/100/1000 |

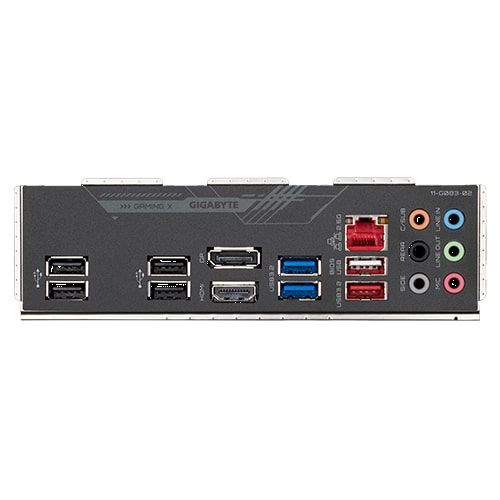

Rear Panel Ports | |
USB | 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, |
S/PDIF Out | Support for S/PDIF Out |
Audio Ports | Realtek® Audio CODEC |
Video Ports | 1 x HDMI port 1 x DisplayPort |
HDMI | 1 x HDMI 2.0 port |
Onboard USB | |
Onboard USB | 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers |
Onboard 1394 | |
Onboard 1394 | N/A |
Physical Spec | |
Form Factor | ATX Form Factor |
Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
Dimensions | 30.5 cm x 24.3 cm |
