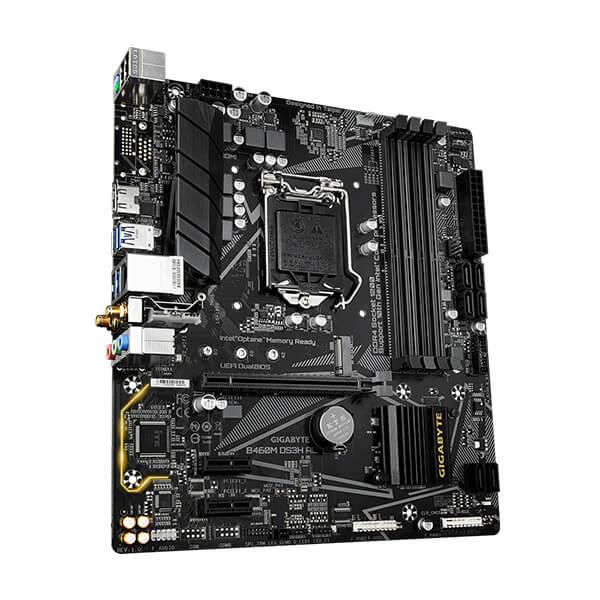

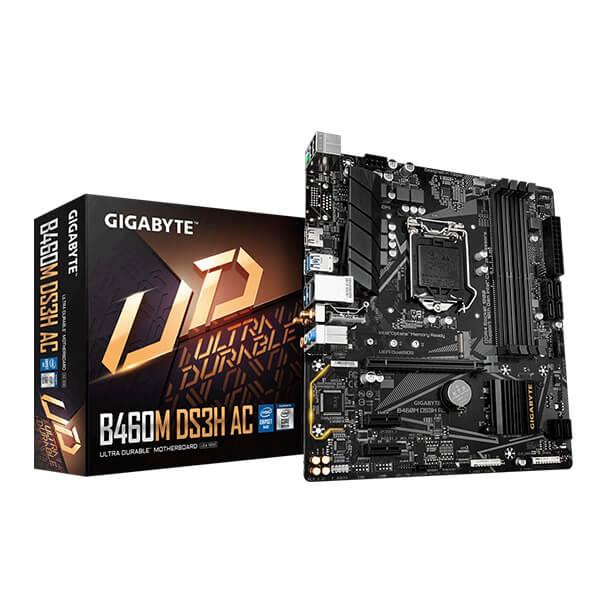

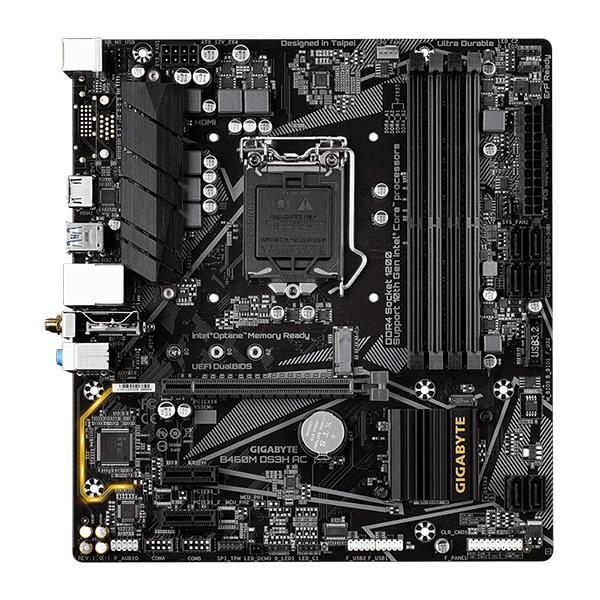

GIGABYTE B460M DS3H AC DDR4 Intel Motherboard

Feature of Gigabyte B460M DS3H AC DDR4

Has a dual channel of memory architecture, alluring isn’t it?, Supports Extreme Memory Profile that is XMP memory modules. Supports HD Graphics with the assistance of Integrated Graphics Processor-Intel. Reward your ears with the best quality of sounds, Not only this but it even has an immersive sound quality of Realtek ALC887 codec, high and premium audio. Gigabyte B460M DS3H AC Motherboard has a wireless communication module with wifi supporting 2.4/5 GHz Dual-Band as well as Bluetooth 4.2. It has 6 USB ports, precisely four on the back panel and the other two available through the internal USB header. H/W monitoring detects voltage, temperature, fan speed as well as overheating. Gigabyte B460M DS3H AC motherboard has 2*128 MB flash. Operating windows Supports for Windows 10 64-bit. Some of the more unique features are fast boot to improve performance, a game boost to enhance game quality, RGB fusion to give pleasurable visuals, smart backup, on/off charge also system information viewer. It has a warranty of three years so just relax and concentrate on your play!

1. Supports 10th Gen Intel® Core™ Processors
2. Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
3. High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
4. Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
5. Intel® Dual Band 802.11ac WIFI & BT 4.2
6. RGB FUSION supports RGB LED Strips in 7 Colors
7. GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
8. Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
9. Anti-Sulfur Resistors Design
10. GIGABYTE UEFI DualBIOS™
11. Intel® Optane™ Memory Ready

4+2 Hybrid Digital VRM with Low RDS(on) MOSFET

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.

Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module

The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

GIGABYTE Patented DualBIOS™ Design

GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’, protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

FAN STOP

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Specifications of Gigabyte B460M DS3H AC DDR4
