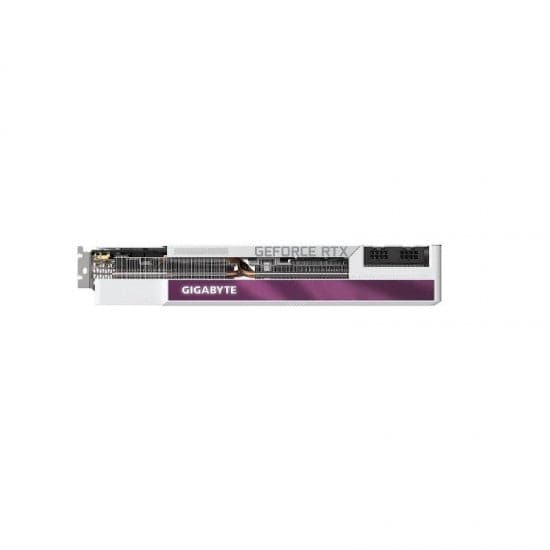

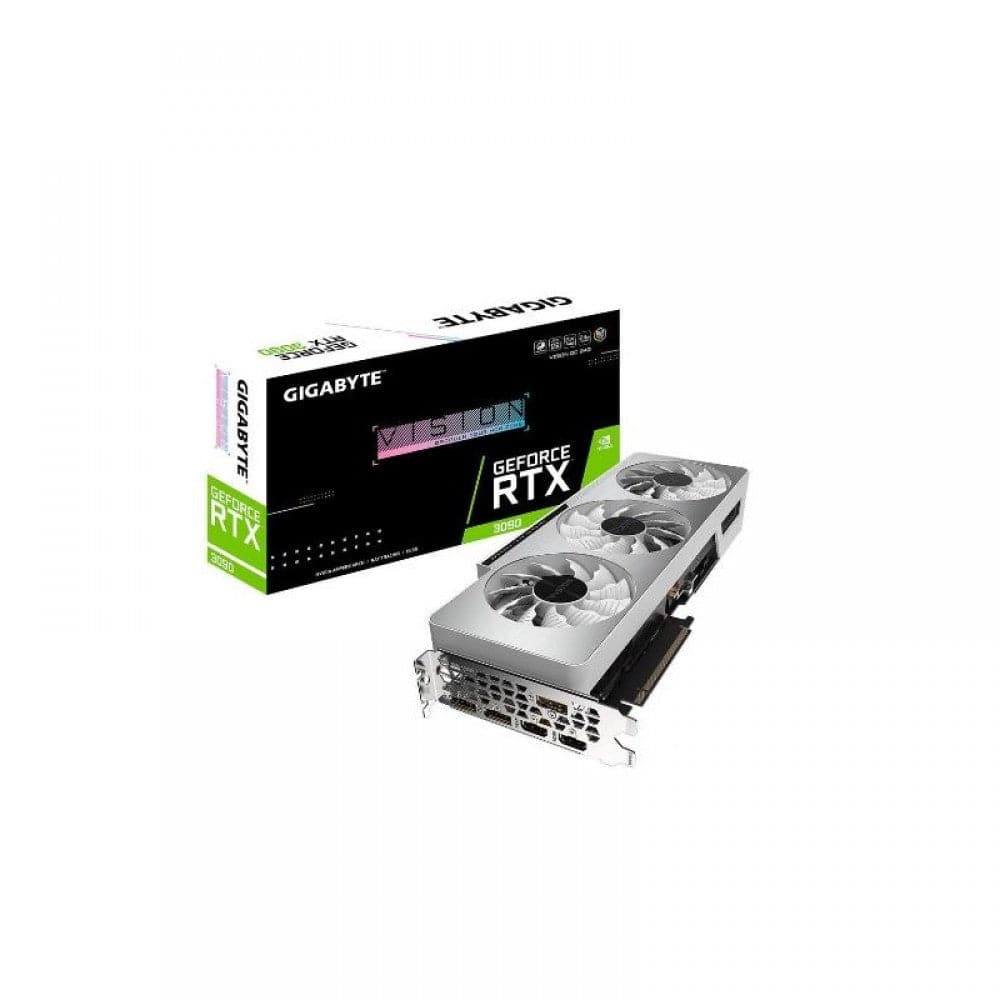

- GIGABYTE GeForce RTX 3090 Vision OC 24GB Nvidia Graphic Card
Description
Features of GIGABYTE GeForce RTX 3090 Vision OC 24GB Nvidia Graphic Card
CREATE YOUR WORK FASTER THAN EVER
Powerful GIGABYTE GeForce RTX 3090 Vision OC 24GB Nvidia Graphic Card accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time.

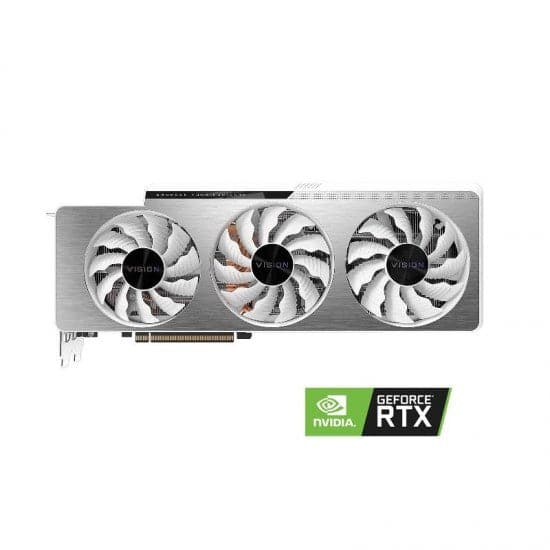

WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 2x 90mm and 1X80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, large copper plate direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

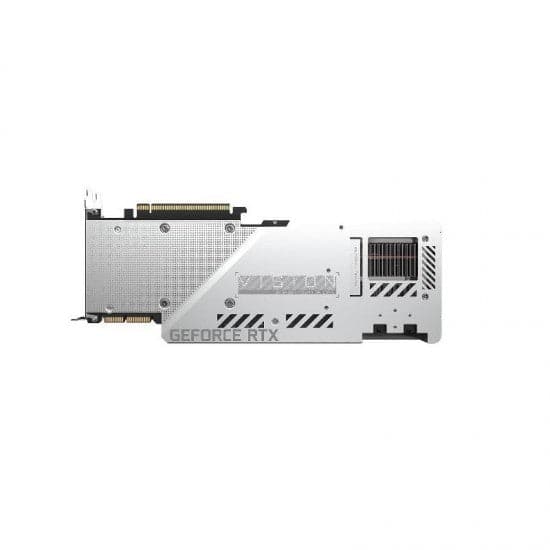

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3090
- Integrated with 24GB GDDR6X 384-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
Core Clock
1755 MHz (Reference card: 1695 MHz)
Specifications of GIGABYTE GeForce RTX 3090 Vision OC 24GB Nvidia Graphic Card
Chipset | GeForce RTX™ 3090 |
Memory Size | 24 GB |
Core Clock | 1755 MHz (Reference card: 1695 MHz) |
Memory Type | GDDR6X |
CUDA® Cores | 10496 |
Graphics Processing | GeForce RTX™ 3090 |
Memory Clock | 19500 MHz |
Memory Bus | 384 bit |
Memory Bandwidth (GB/sec) | 936 GB/s |
Card Bus | PCI-E 4.0 x 16 |
Series | RTX™ 3090 |
Digital max resolution | 7680x4320@60Hz |
Multi-view | 4 |
Card size | L=320 W=126 H=55 mm |
PCB Form | ATX |
Chipset | NVIDIA GeForce |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Power requirement | 750W |
Power Connectors | 8 pin*2 |

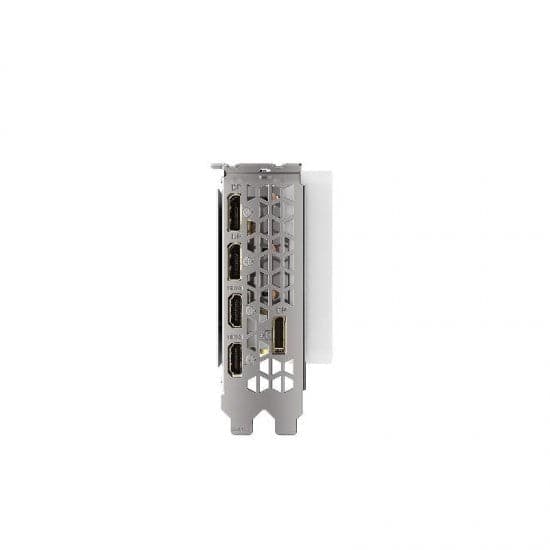

Output |
DisplayPort 1.4a *3 HDMI 2.1 *2 |
SLI support | 2-way NVIDIA NVLINK™ |
Accessories | Quick guide |
Warranty | 4-year warranty registration (Online registration required) |
Note* | Price, feature and specifications are subject to change without notice. |
