- GALAX Revolution 01 ARGB ATX Mid Tower Cabinet (Black)
Description
Features of GALAX Revolution 01 ARGB

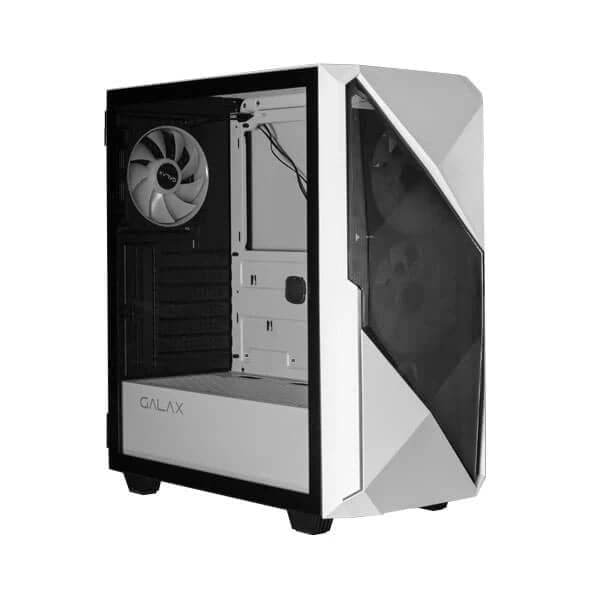

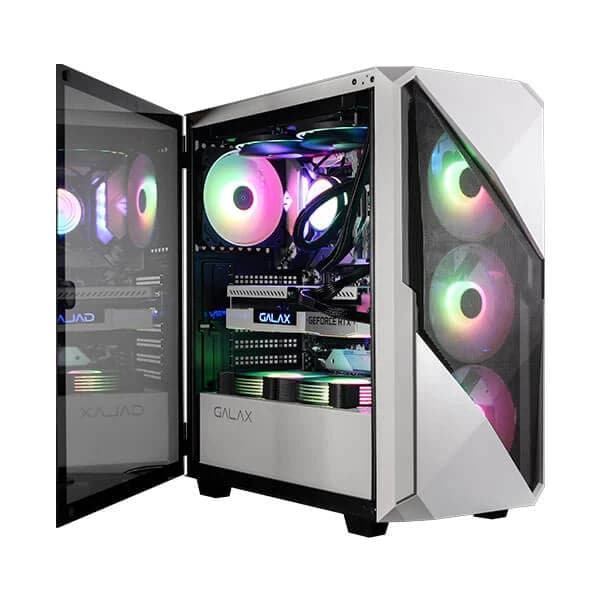

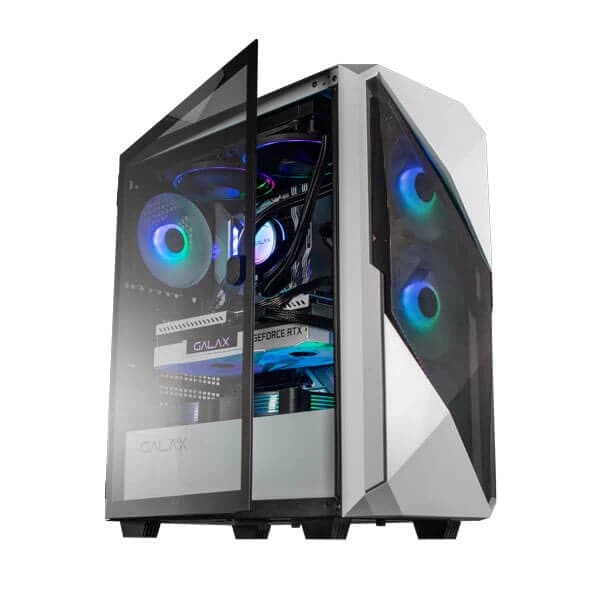

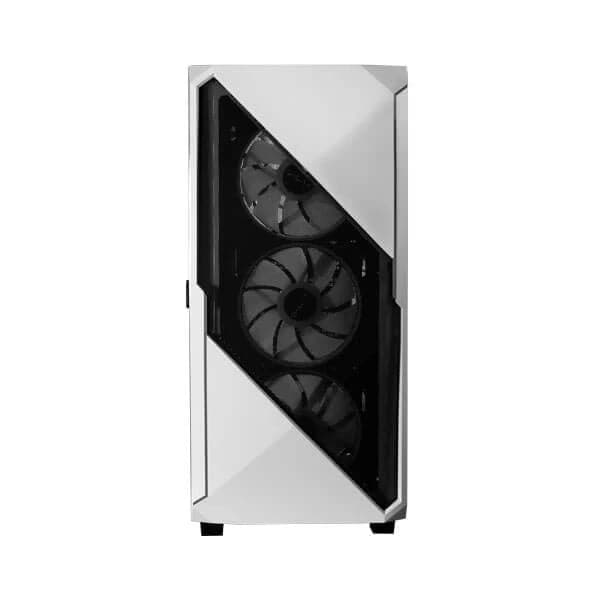

Rocking its all new arctic white finish, GALAX REV-01W is a mid tower PC case that supports ATX, M-ATX and ITX motherboards. Besides having a front panel mesh design for better heat dissipation, it also supports watercooling systems and up to 6 cooling fans installation. For the ease of customization, REV-01W also comes with a tempered glass panel and an built in ARGB controller, including the V2.0 PWM+ARGB(Rainbow) Hub.
Specifications of GALAX Revolution 01 ARGB
| Model | CG01AGWA4A0 |
| Color | White |
| Form Factor | Mid Tower |
| Chassis | SPCC: 0.45mm |
| PSU Form Factor | Bottom/ATX |
| M/B Form Factor | ATX、M-ATX |

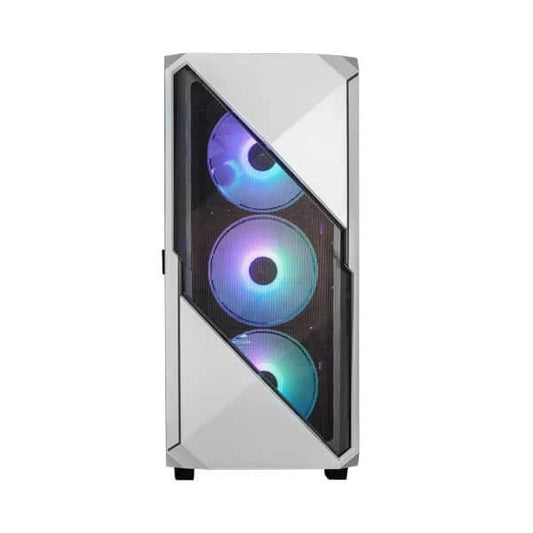

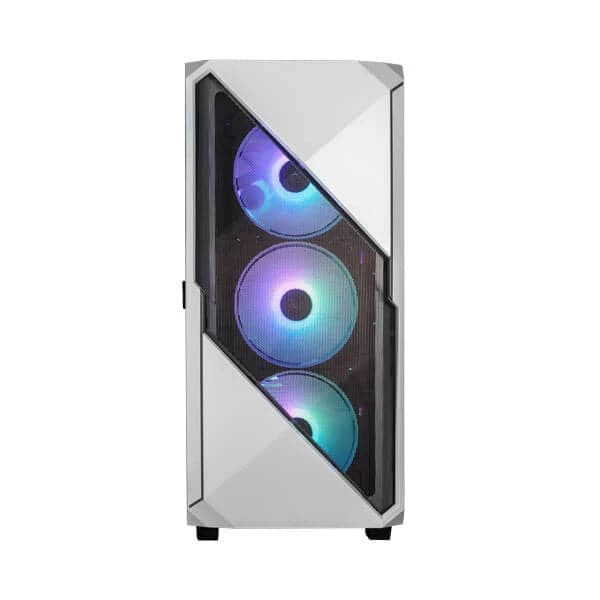

| Front Panel | ABS, Mesh |
| Top Panel | Metal cover |

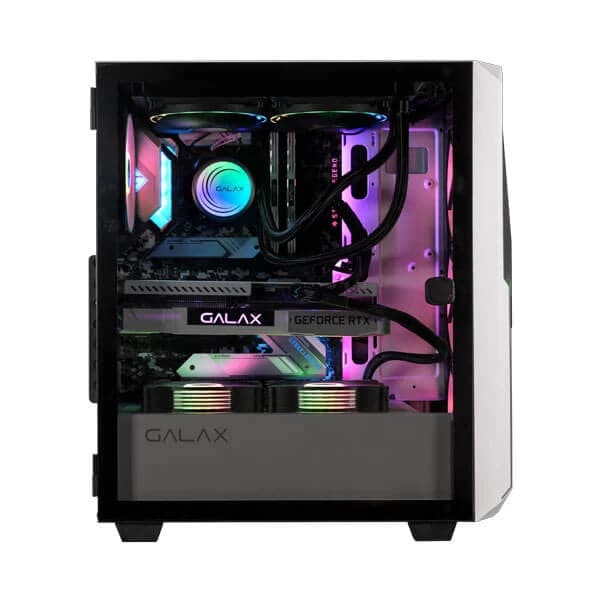

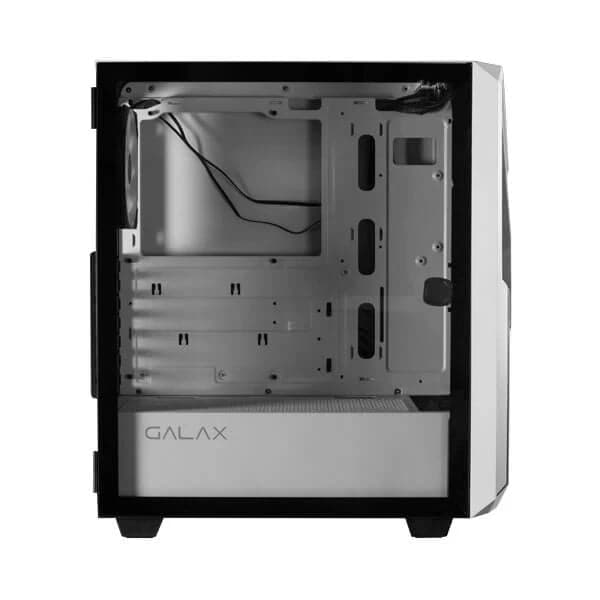

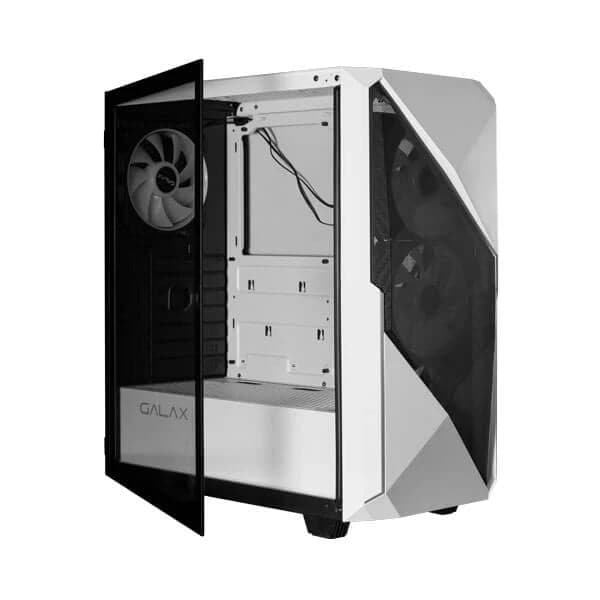

| Left Panel | Tempered Glass |
| Righ Panel | Metal cover |
| External Drive Bay(s) | |
| 5.25" (ODD) | 0 |
| 3.5" | 0 |
| Internal Drive Bay(s) | |
| 3.5" (HDD) | 2 |
| 2.5" (SSD) | 2 |
| 1x3.5 HDD+3x2.5 SSD or 2x3.5 HDD+2x2.5 SSD | |
| Buttons | 4 |
| USB1.1 Port(s) | 0 |
| USB2.0 Port(s) | 1 |
| USB3.0 Port(s) | 1 |
| USB3.1 Port(s) | 0 |
| HD Audio Support | 1 |
| Card Reader (Support) | 0 |
| P-Lock | 0 |
| RGB Controller | 1 Rainbow+PWM V2.0 |
| Controller max. fans | 5 |
| RGB Controller max. LED strips | 0 |
| Remote (IR or RF) | 0 |
| Cooling Fan Support | |
| Front | 3x120mm,2x140mm(Fan optional) |
| Top | 2x120mm,2x140mm(Fan optional) |

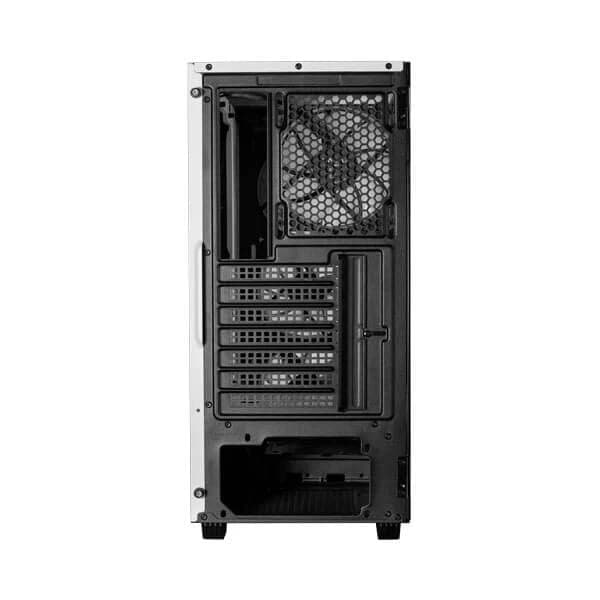

| Rear | 1x120mm (Fan optional) |
| Left Side | 0 |
| PSU Cover | 2x120mm (Fan optional) |
| Water Cooling Support (Radiator Size) | |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Top | 120mm, 140mm, 240mm |
| Rear | 120mm x 1 |
| Dust Cover | Bottom and top cover with dust filter |
| Slots | 7 |
| Dimensions | |
| Chassis | (L)360*(W)210*(H)440 |
| Full Case (inc Fascia) | (L)424*(W)215*(H)460 |
| Carton | (L)506*(W)266*(H)465 |
| Net Weight (Kg) | 4.9 |
| Gross Weight (Kg) | 5.8 |
| VGA Card Length | up to 340 |
| CPU Cooler Height | 170 |
| Cable Management Depth | 22 |
| Warranty | 1 Year |
| Note | *** Features, Price, Specifications are subject to change without notice |
